This article describes mounting methods for the 2799L Outdoor Open Frame Monitor

Flush Mount

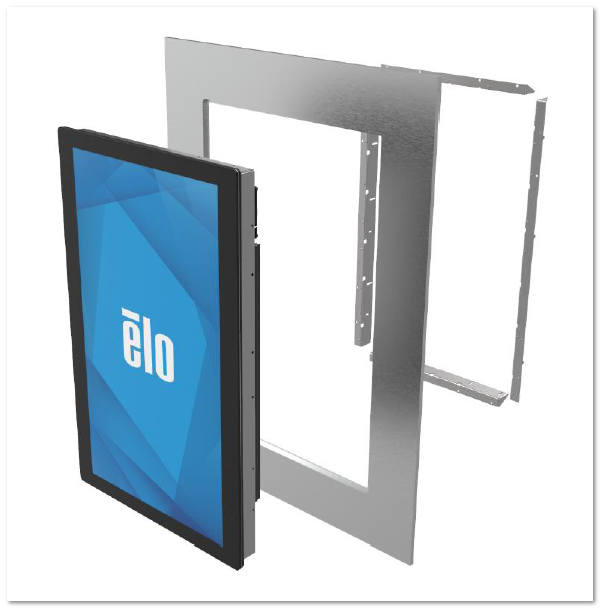

Flush-mount Bracket Installation Notes:

• See dimensional drawing for the exact details of the recommended enclosure panel opening dimensions.

1. Place the 27-inch 2799 touchscreen display into your enclosure panel opening.

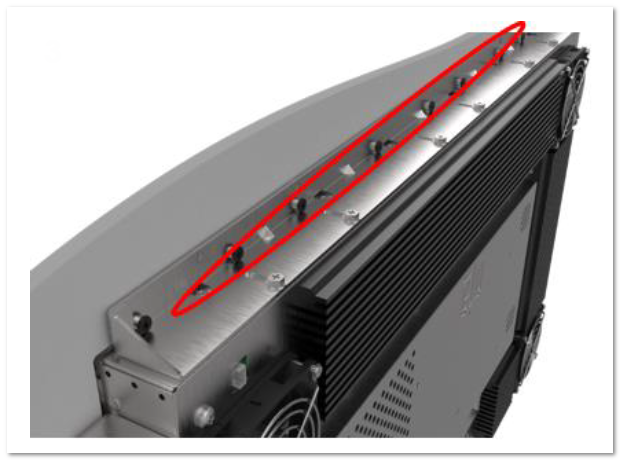

2. Attach flush mounting brackets (all four sides) with M4-5mm bracket screws (included) to secure the touchscreen onto the enclosure panel. Adjust the touchscreen as close as possible to flush with the front of the enclosure panel before tightening M4 bracket screws. A socket wrench is recommended if clearance is limited.

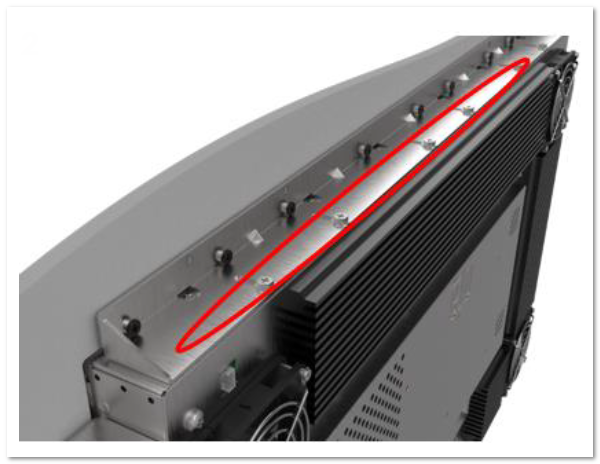

3. Tighten the M4-6mm clamping screws on the mounting brackets to bring the touchscreen glass completely flush with the customer panel, compressing the sealing gasket, and ensuring a watertight seal to IP66 and NEMA4x standards.

• Please ensure 2” clearance behind the touch screen display.

Rear VESA Mount

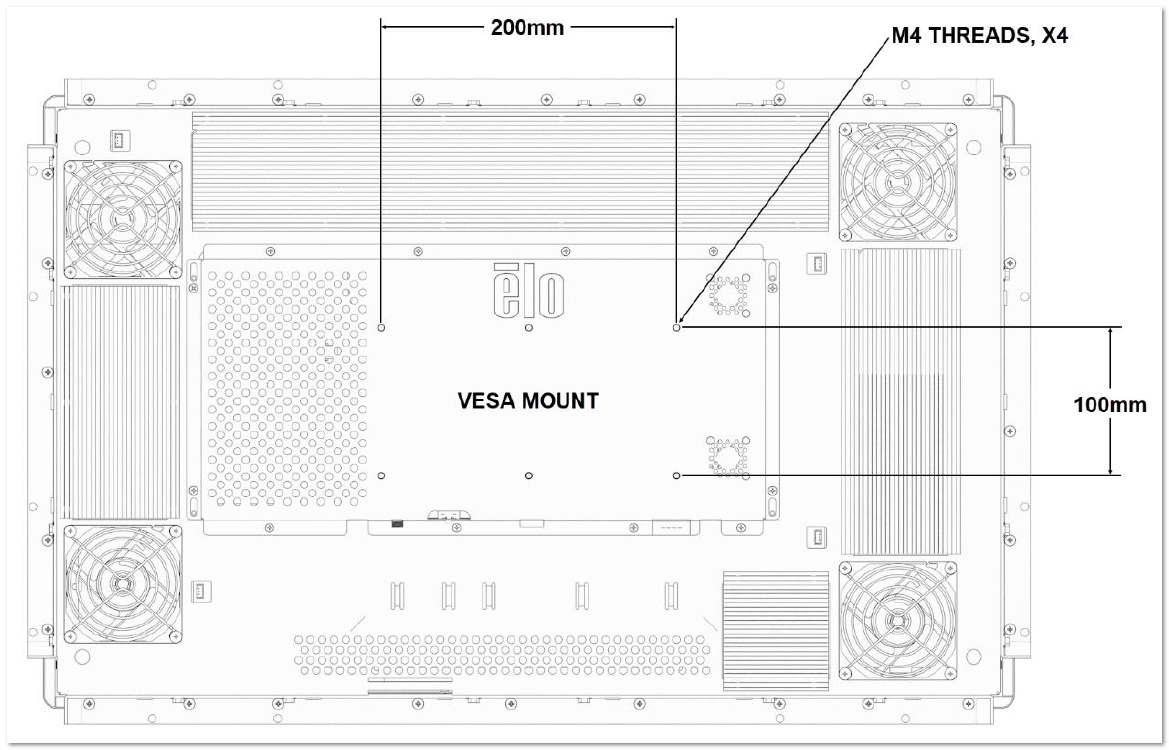

A six-hole mounting pattern for M4(10mm) screws is provided on the rear of the monitor for 200x100 in multiple VESA mounting positions. The VESA FDMI-compliant counting is coded: VESA MIS-E. Please ensure 2” clearance behind the touch screen display.



Mounting Guidelines
When choosing a mounting location and orientation, consider the following guidelines.

1. The ambient light sensor may not function properly if the portrait orientation is upside-down, a focused light source is close to the sensor window, or the sensor window is blocked. Reference the dimensional drawing for details on light sensor location.

2. Try to avoid mounting the product in direct sunlight if possible. Use overhangs or orient away from the sun to reduce environmental stress on the product and prolong its life.
