Where can I find a dimensional drawings for the 1099L Outdoor Open Frame monitor?

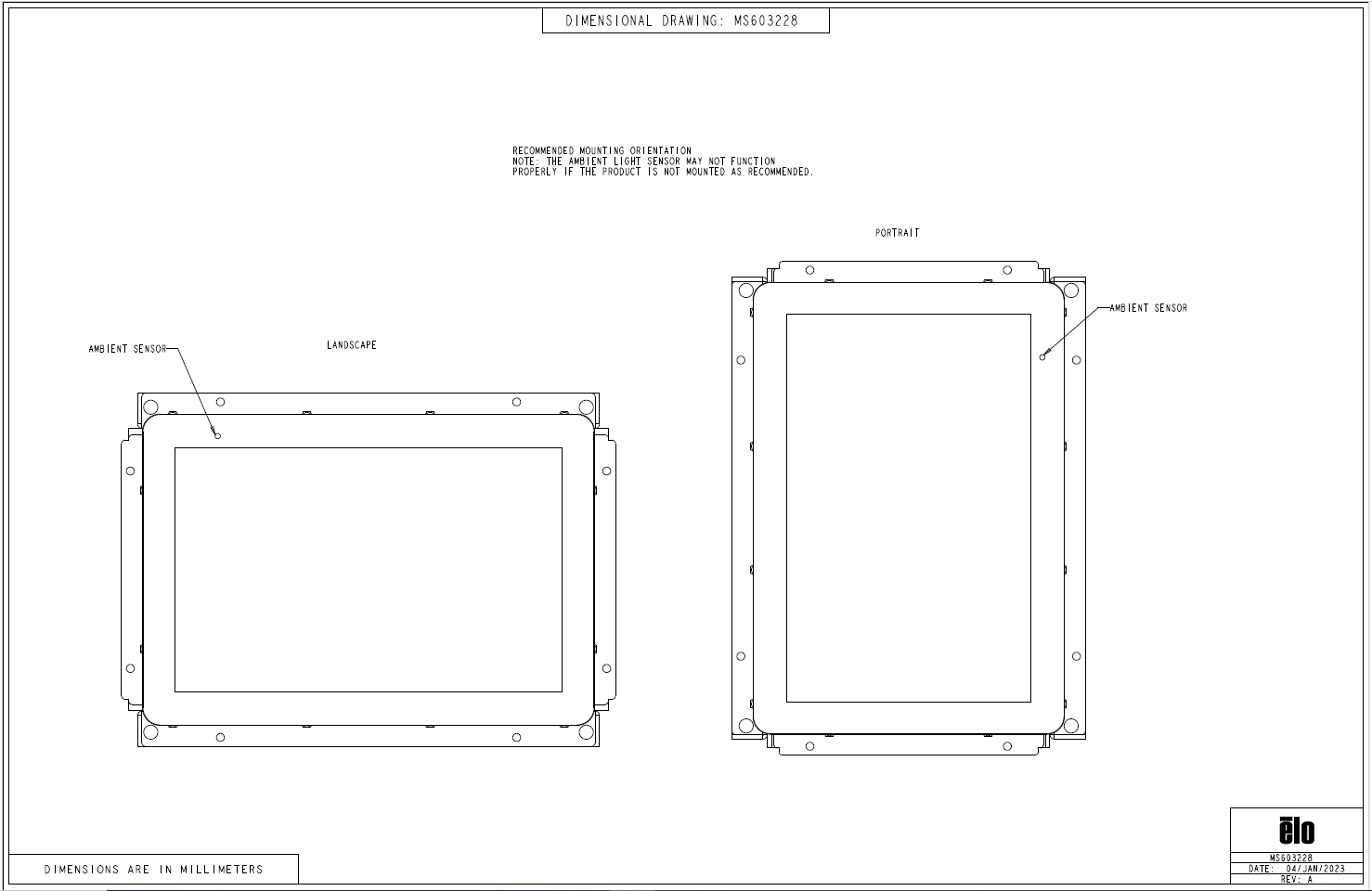

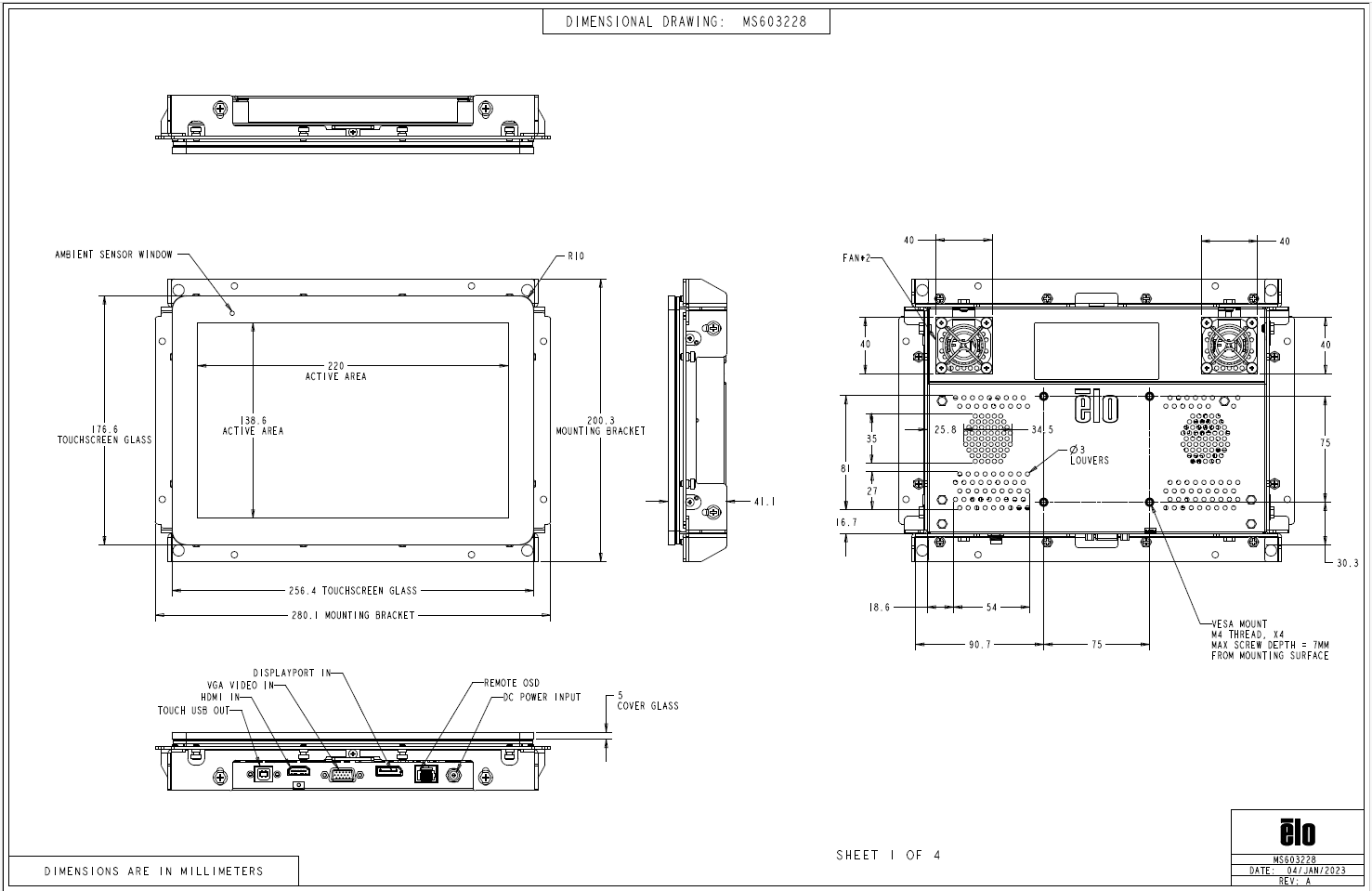

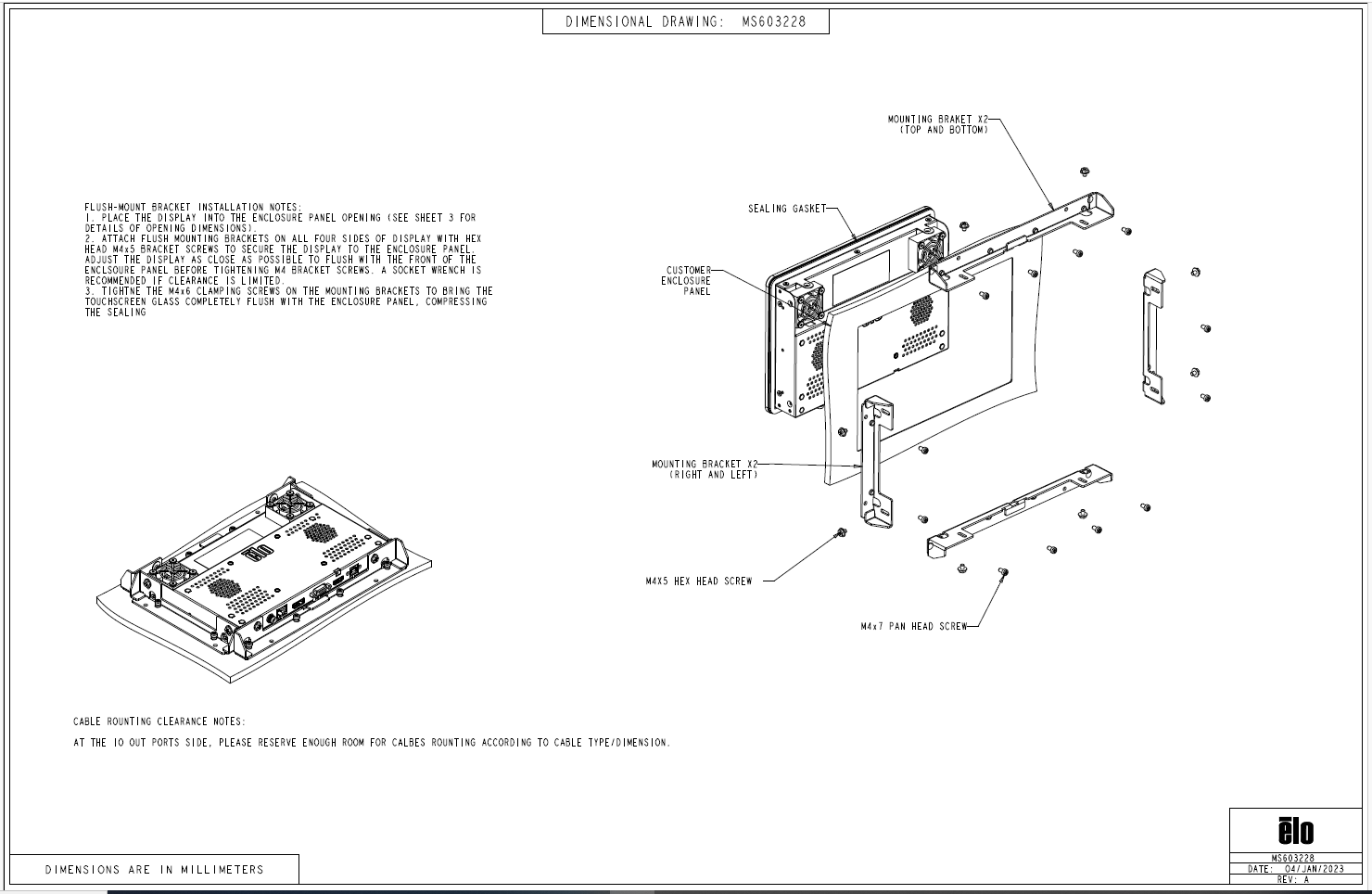

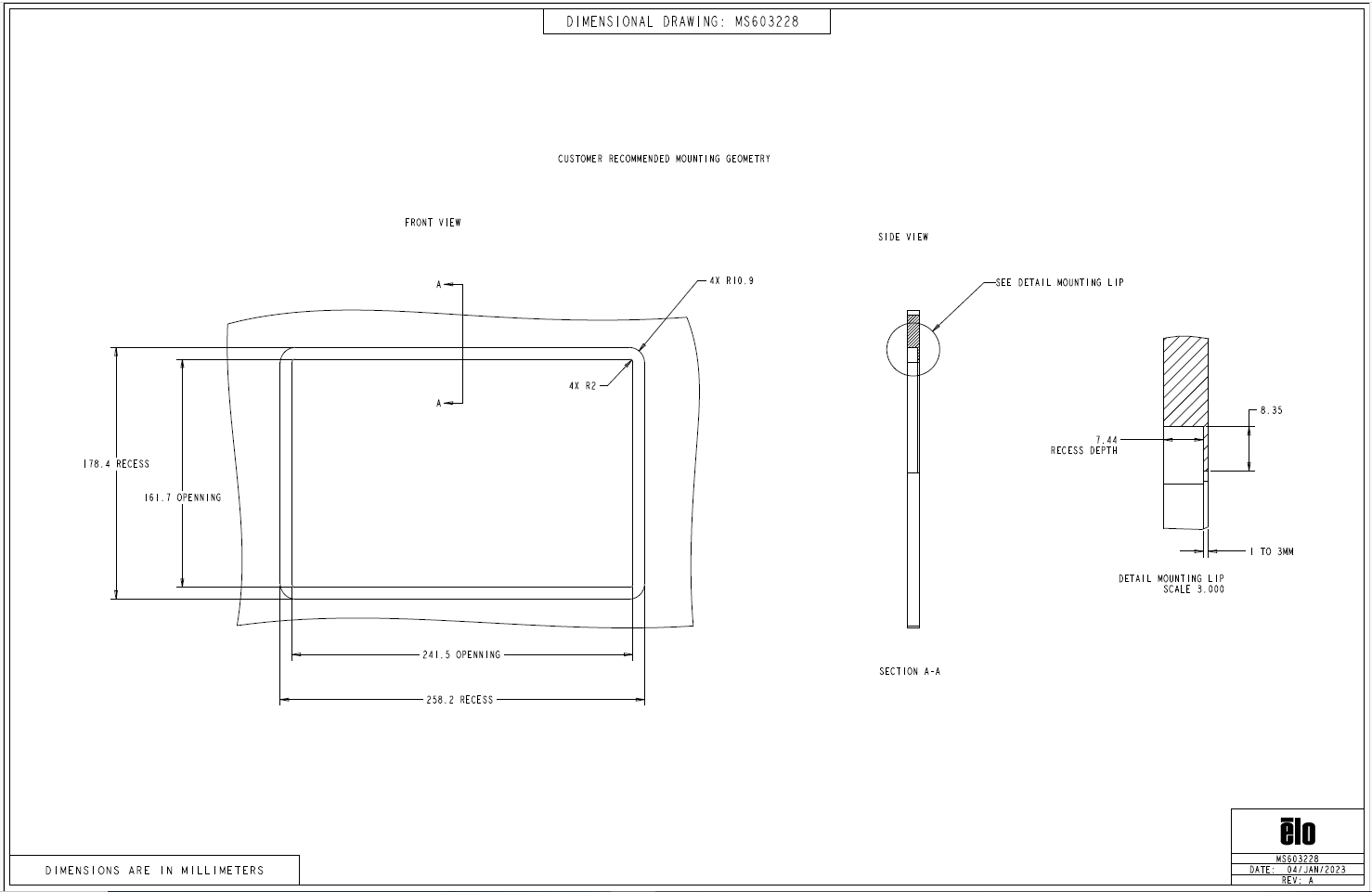

This article provides the dimensional drawings of the ET1099L Outdoor Open Frame touch monitor

Also, find the drawings attached to this article.


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
