This article describes how to assemble the M51 Scan Handle onto an M51 Mobile device.

Product Spec page: https://www.elotouch.com/m51-scan-handle.html

Quick Install Guide: https://docs.elotouch.com/QIG600278.pdf

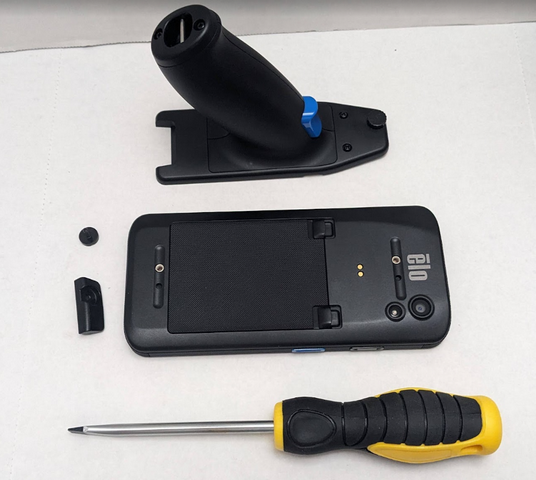

Hardware Required:

• E527331, M51 Scan Handle Kit
• Elo M51 Mobile Device equipped with barcode scanner
• Flat blade screwdriver

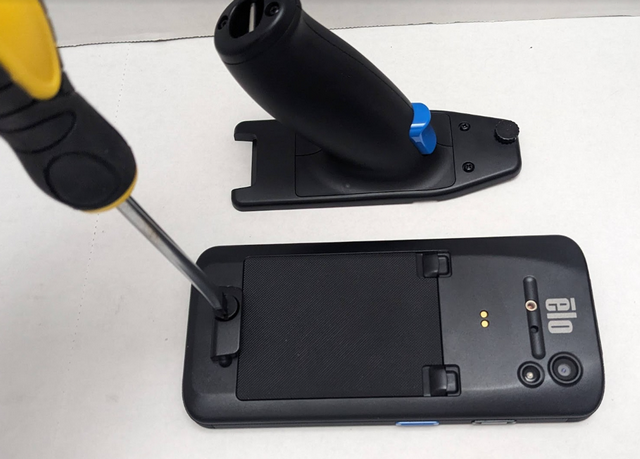

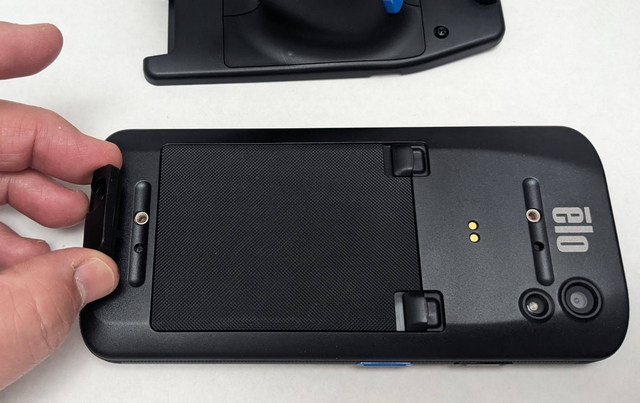

1. Place lower trigger retainer onto bottom rear slot of the M51 device and insert the slot headed screw and tighten with screwdriver.

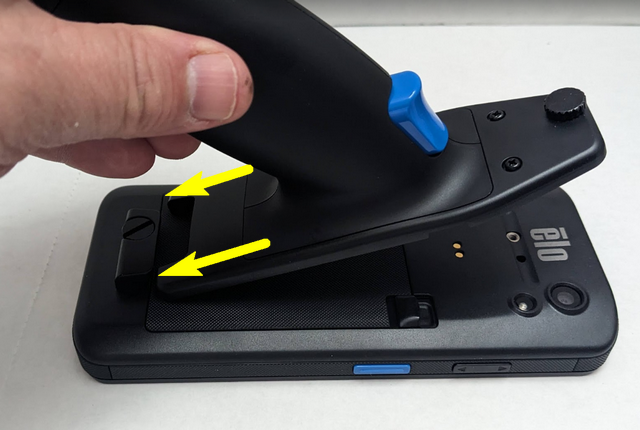

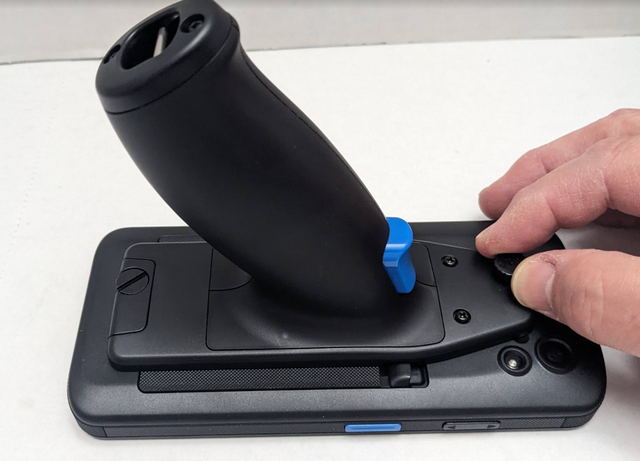

2. Slide trigger handle beath the trigger retainer, then tighten upper thumb screw to secure the trigger handle to the M51 device.




3. You can now use the Trigger Handle to activate the barcode scanner.
