ADA Keypad Mounting & Integration Guide for Elo Wallaby™ Pro Self-Service Stands

Audience: Public / Elo Customers, Kiosk Integrators & Field Technicians

Article Type: Hardware Accessory & Kiosk Integration Guide

The Elo Wallaby™ Pro Self-Service Stand includes a dedicated ADA-compliant mounting bracket plate, enabling seamless integration of commercial assistive keypads such as the Storm Interface Audio Nav 6 navigation and audio-assist module.

Included Bracket & Hardware

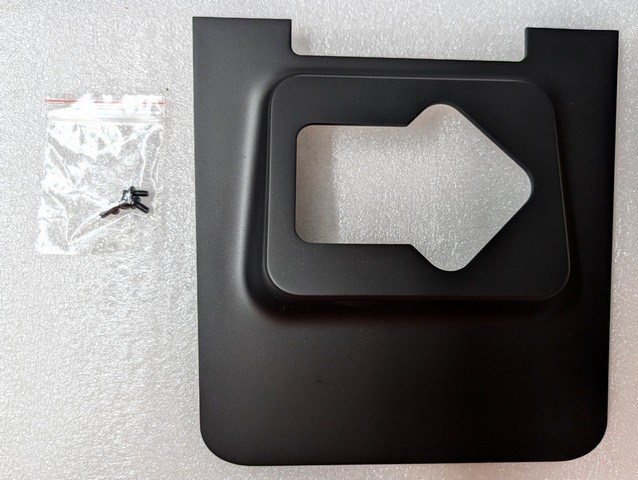

The stand packaging includes the custom sheet-metal ADA adapter plate and required fastening hardware:

Mounting & Installation Steps

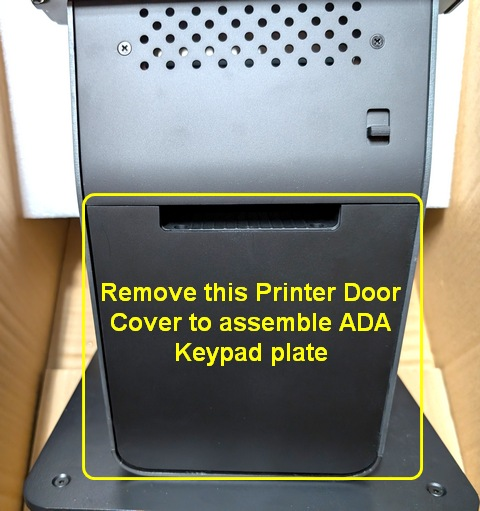

1. Remove Printer Door Cover: On the front housing of the Wallaby Pro stand, remove the blanking plate / printer door cover where the keypad module will reside.



2. Prepare ADA Assistive Keypad: Align the compatible assistive keypad device (e.g., Storm Interface Audio Nav 6).



3. Attach Keypad to Mounting Plate: Secure the keypad to the rear/backside of the ADA adapter mounting plate using the supplied screws.



4. Install Assembly into Stand: Fasten the completed ADA plate assembly into the front cutout of the Wallaby Pro kiosk chassis.

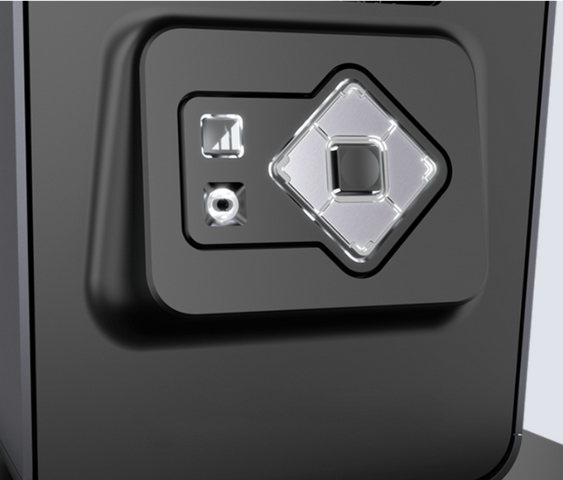

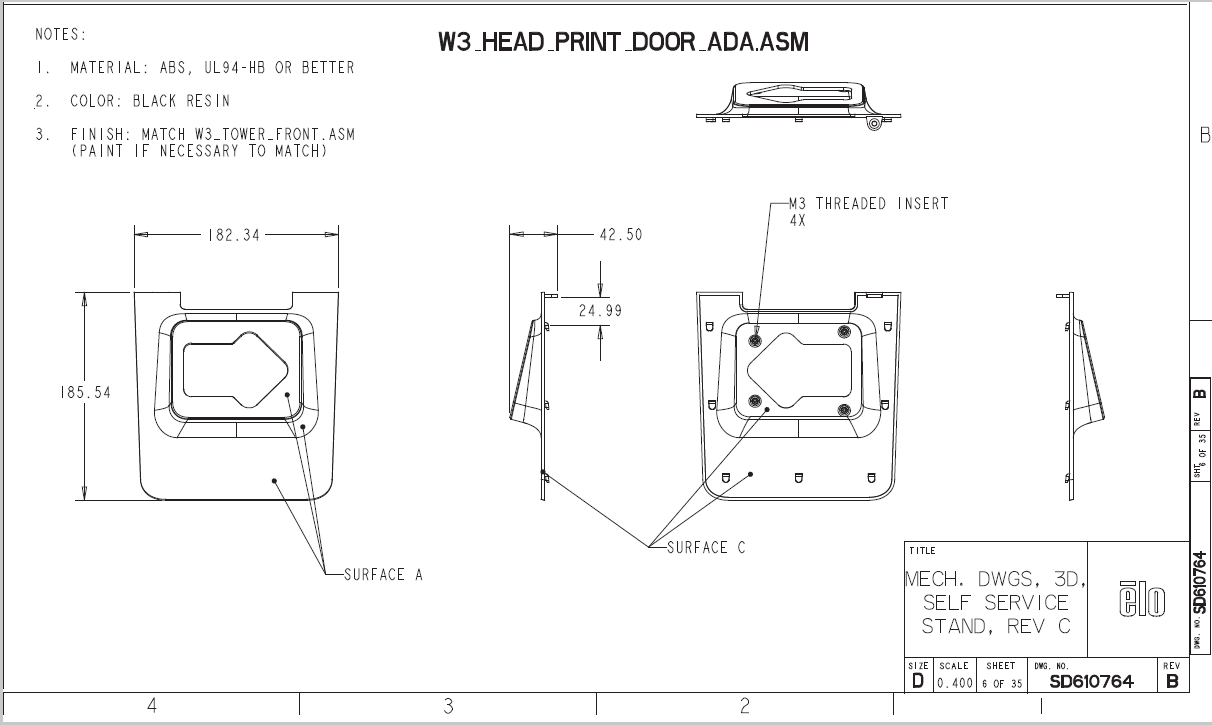

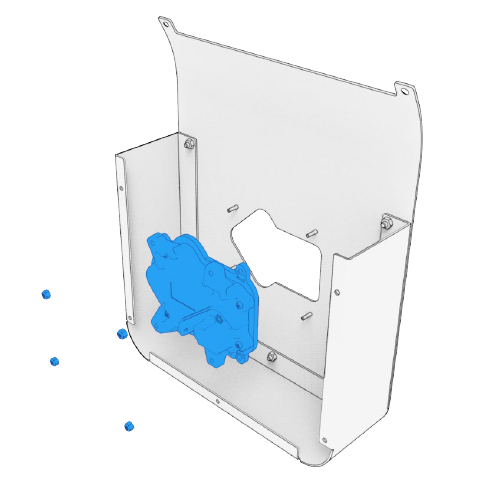

Mechanical Dimensions & Exploded View
