This article provides essential information regarding the operating conditions, proper mounting, thermal protection features, and ventilation methods for the 3263L touch display

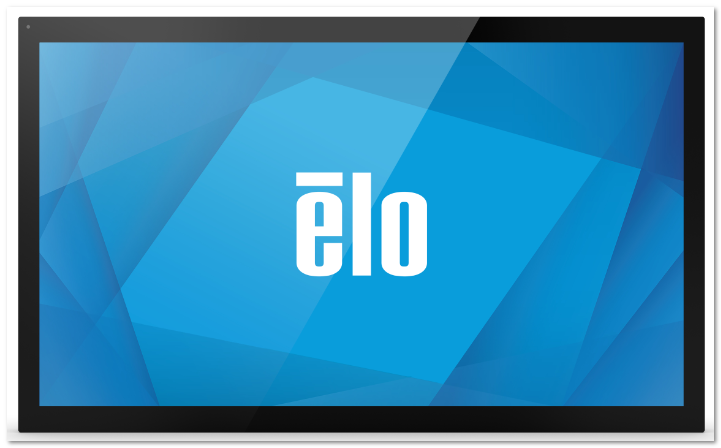

3263L Front

3263L Back

Operating Conditions

• Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
• Tabletop Mode: 0° C to 35° C / 32°F to 95°F
• Humidity: Operating: 20% to 80%

These conditions must be maintained to ensure optimal performance and longevity of the 3263L touch display.

Proper Mounting

To maintain the best temperature control, it is crucial to follow the proper mounting methods as outlined in the 4363L User's Manual. Please refer to pages 7-12 of the manual for detailed instructions: 3263L User's Manual.

Thermal Protection

The 3263L touch display is equipped with an advanced temperature sensor that actively monitors the system's temperature.

• Automatic Shutdown: If the temperature reaches 58°C, the monitor will automatically shut down to prevent damage. When the monitor is turned back on, a warning message will indicate that it was shut down due to excessive heat. For more details on this feature, see page 18 of the User's Manual.

• Temperature Warning: If the display operates outside the specified temperature range, it will enter Thermal Protection mode. In this mode:

  • The brightness will be reduced to help bring the temperature back within the safe range.

  • After five minutes of operating within the normal range, the brightness will automatically return to the previous setting.

  • If the display continues to operate outside the safe temperature range, it will shut off after a 60-second on-screen timer.

Proper Ventilation Methods

Proper ventilation is crucial for maintaining the operating temperature of the 3263L touch display. For detailed guidelines on ventilation, please refer to our Knowledge Article: Is ventilation required for kiosks and other enclosures?

By adhering to these guidelines, you can ensure that your 3263L touch display operates effectively and safely within the recommended conditions.

If you have further questions, please consult the 3263L User's Manual or reach out to our support team for assistance.
