Where can I find steps for DPC enrollment with Elo I-Series 4.0 devices?

Enrolling Elo I-Series 4.0 Devices Using Android DPC (Device Policy Controller)

This article explains how to enroll Elo I-Series 4.0 GMS devices using an EMM DPC identifier during the Android Out-of-Box Experience (OOBE).

Prerequisites

Before you begin, ensure you have:

• Elo I-Series 4.0 device with Google Mobile Services (GMS)
• Active Wi-Fi connection
• EMM authentication credentials
• EMM DPC identifier
• EMM enrollment credentials
• QR code (if your EMM supports QR enrollment)

Out-of-Box Experience (OOBE)

1. Power on the device.
2. Tap anywhere on the screen to begin setup.

3. Connect to a Wi-Fi network.
   Note: Wi-Fi is required for EloView and EMM enrollment.

4. When prompted for setup method, select Enroll with GMS.

DPC Identifier Enrollment

Workspace ONE

1. Power on the Elo I-Series device.
2. Connect to your Wi-Fi network.

3. When prompted to add a Google account, enter the following identifier:

   afw#hub




4. The setup wizard installs the Intelligent Hub automatically.
5. After installation, choose one of the following authentication methods:
   • Server Details
     Enter Server URL, Group ID, and user credentials.
   • QR Code
     Scan the QR code provided by your Workspace ONE environment.
6. Accept the Privacy Policy, Data Sharing, and Terms and Conditions to complete enrollment.

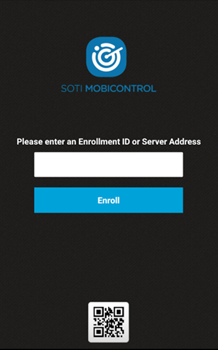

SOTI MobiControl

1. Power on the Elo I-Series device.
2. Connect to your Wi-Fi network.

3. When prompted to add a Google account, enter the following identifier:

   afw#mobitcontrol


4. The setup wizard installs the MobiControl Agent automatically.
5. After installation, choose one of the following authentication methods:
   • Enrollment ID
   • QR Code

6. Accept the Privacy Policy, Data Sharing, and Terms and Conditions to complete enrollment.

Notes

• The Google account added during DPC enrollment is temporary and used only to download the management agent.
• QR code enrollment is recommended for faster, error-free provisioning.
• This process applies only to Elo I-Series 4.0 GMS models.
