¿Dónde puedo encontrar los pinouts y dimensiones del Controlador IntelliTouch 2701 RSU?

Este artículo proporciona los pines y dimensiones del Controlador 2701 RSU IntelliTouch

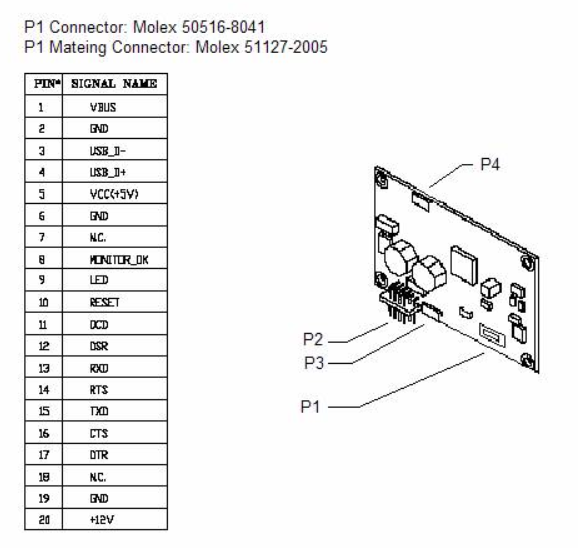

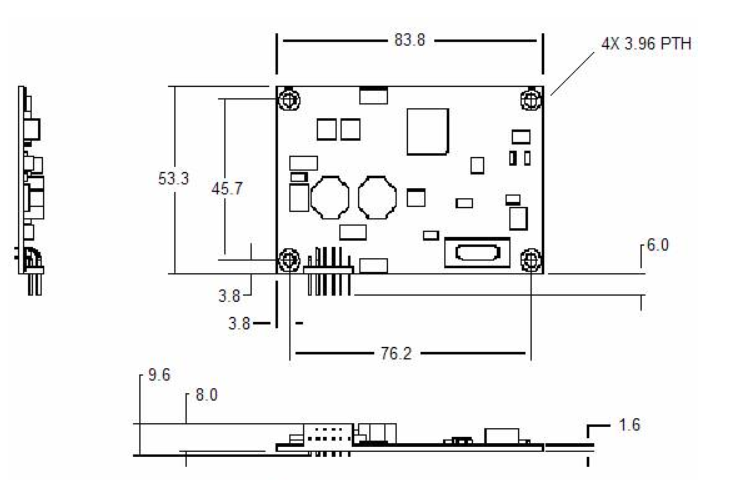

Vea a continuación los pines y dimensiones del Controlador 2701 RSU IntelliTouch.
