¿Dónde puedo encontrar los jumpers y pinouts del controlador serial SmartSet IntelliTouch 2500S?

Este artículo proporciona los puentes y conexiones del controlador serie SmartSet IntelliTouch 2500S

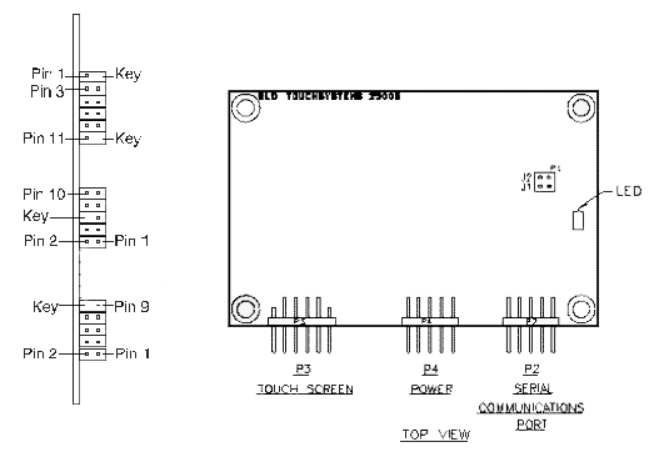

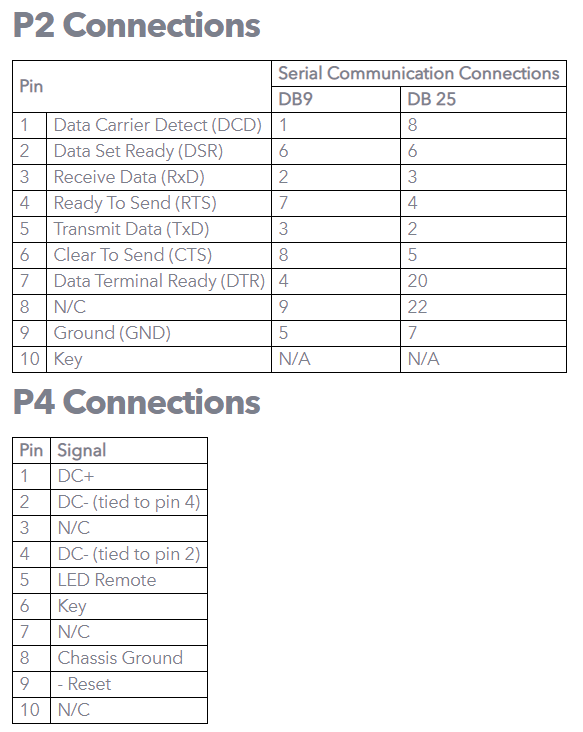

Consulte a continuación los puentes y conexiones del controlador serie SmartSet IntelliTouch 2500S.
