Bienvenido al Soporte de Elo

Controladores, información de productos, respuestas técnicas y más.

¿Dónde puedo encontrar información sobre el P/N: E038989 soporte de montura trasera para la serie X?

Este artículo proporciona información sobre el P/N: E038989 soporte de montaje trasero para la serie X

A continuación se presenta información sobre el P/N: E038989 Soporte de Montaje Trasero para el TouchComputer AIO de la serie X.

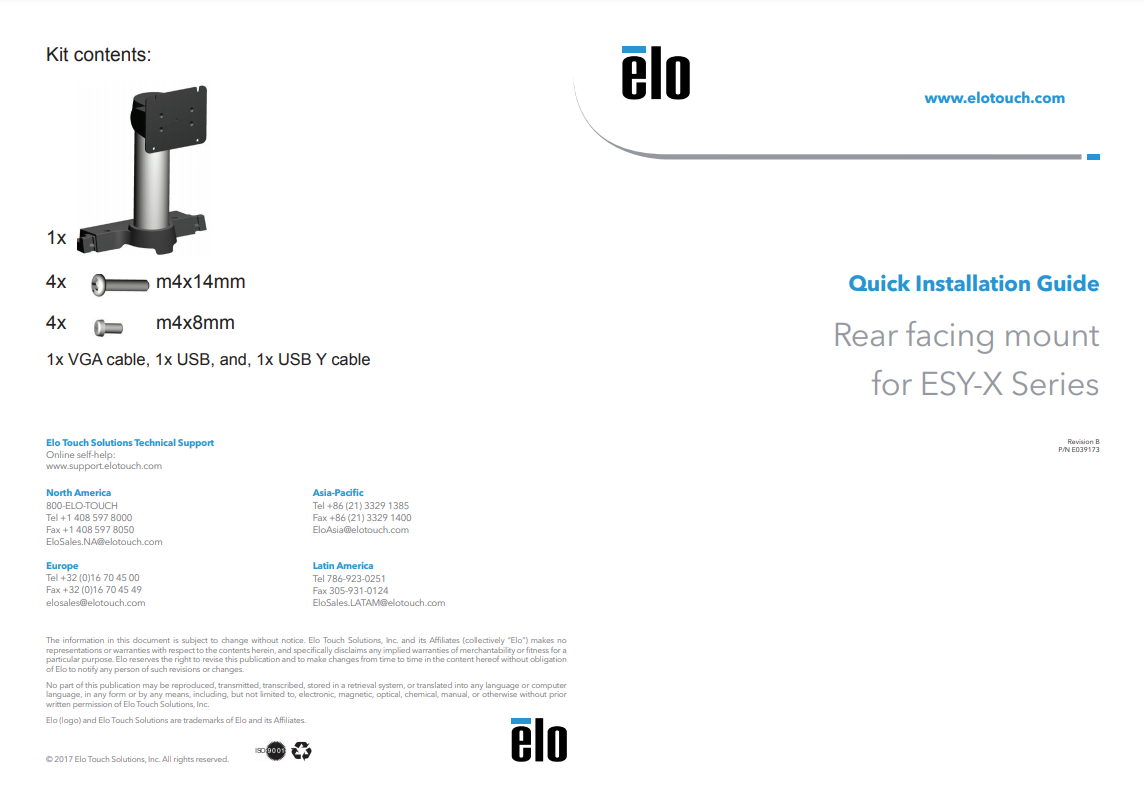

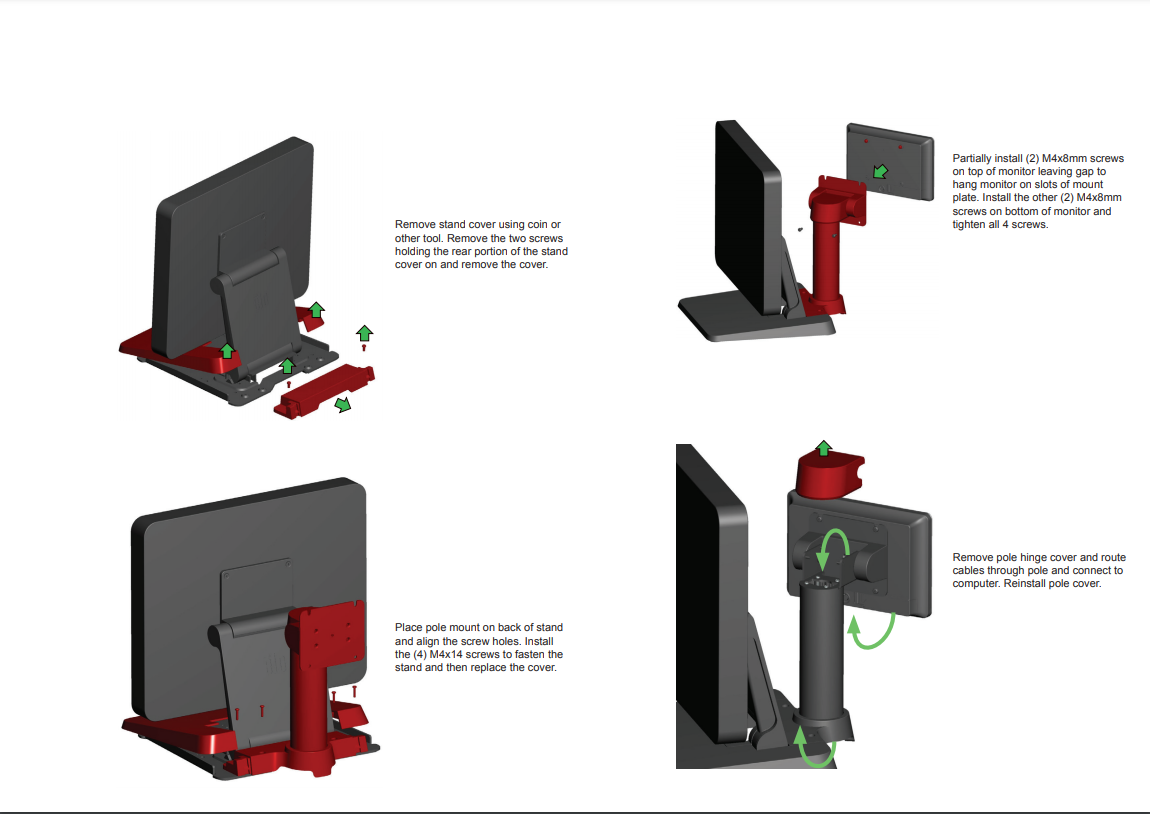

Guía de Instalación Rápida:

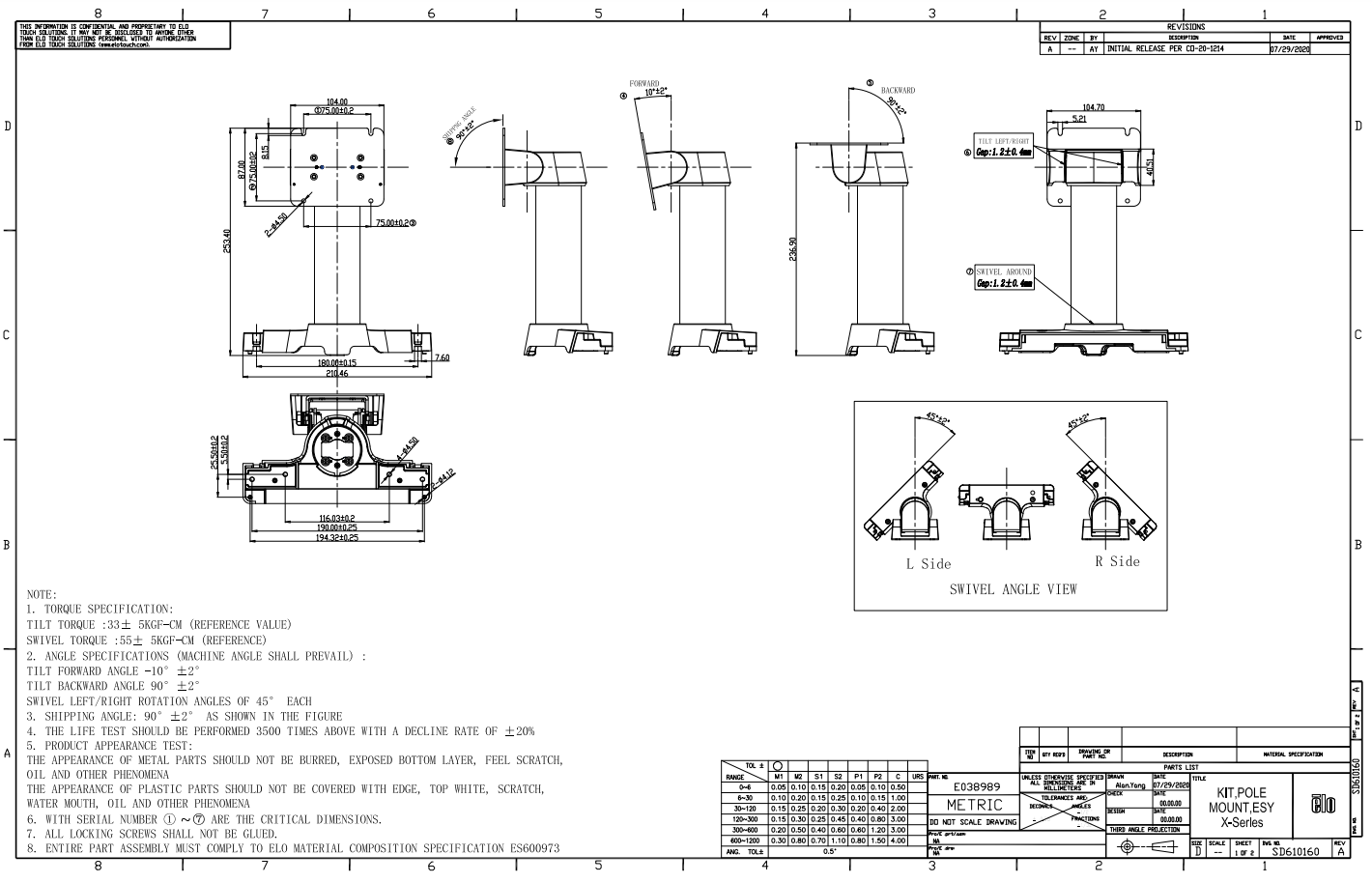

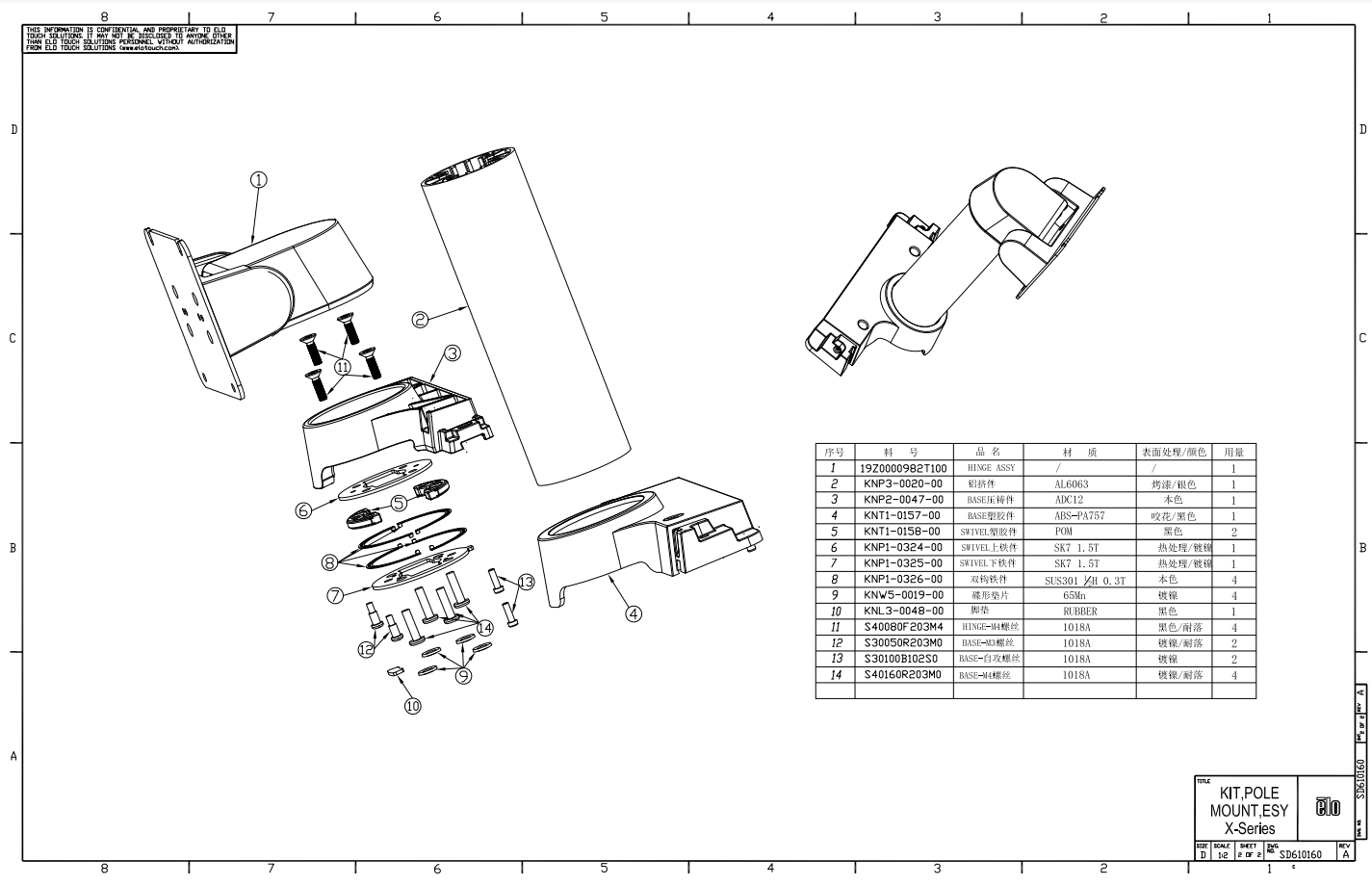

Planos Dimensionales:

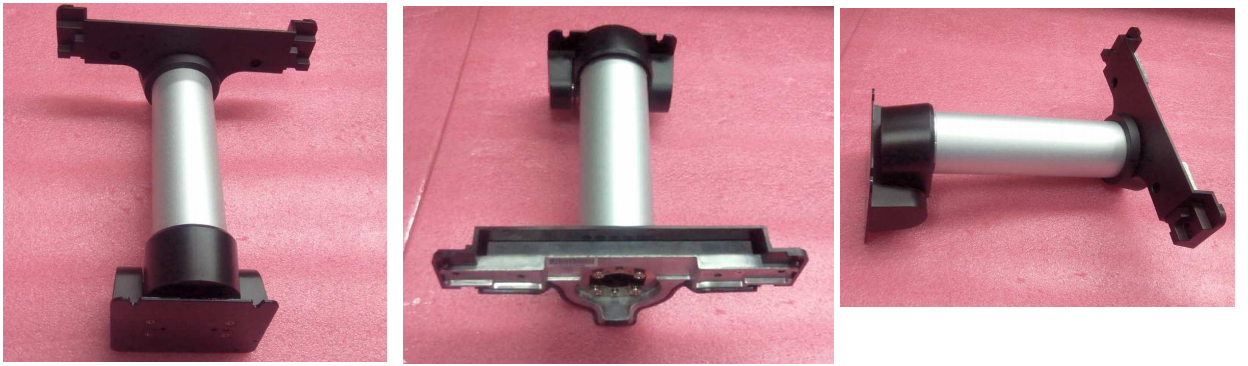

Fotos:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
