¿Dónde puedo encontrar el pinout del cable RJ45 a DB9 para las unidades EloPOS?

Este artículo describe la configuración de pines del cable RJ45 a DB9 que viene en la caja con las unidades EloPOS

Descripción de la parte: 5K.47T20.501: CABLE RJ45-RS232 900MM EA15PA0-1

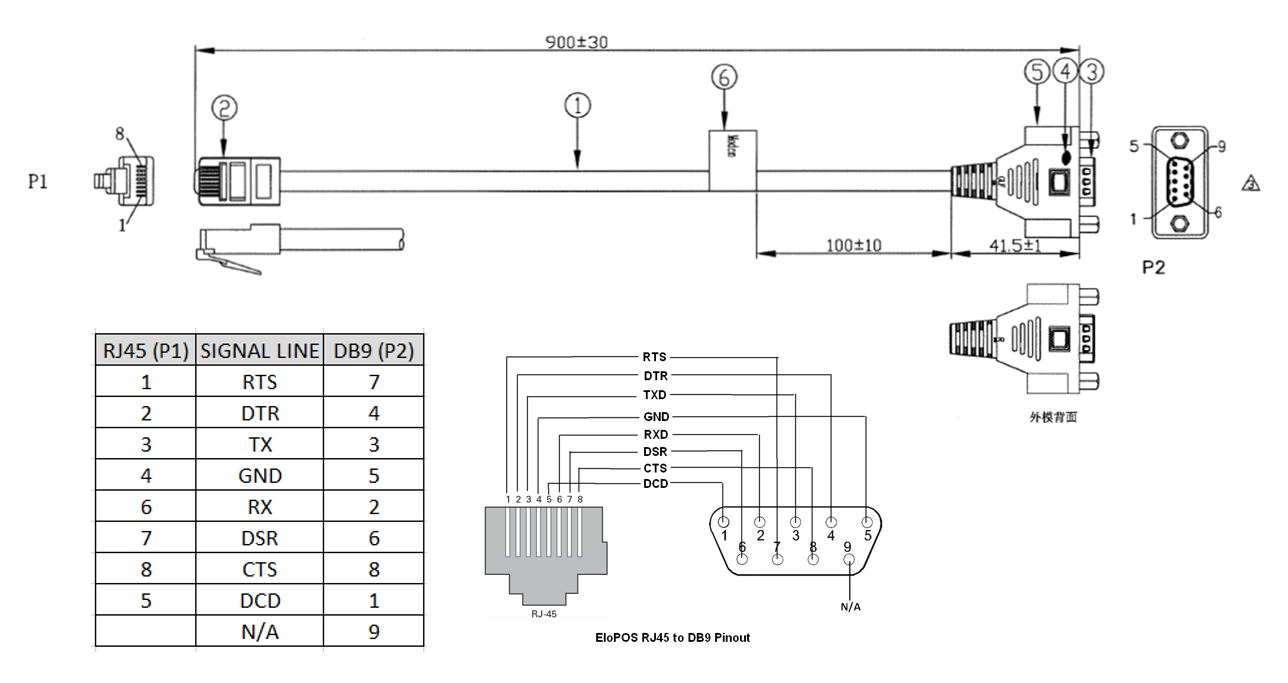

Configuración de pines RJ45 a DB9 de EloPOS

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
