¿Dónde puedo encontrar especificaciones y fotos del soporte E275623 para la serie IDS 02?

Este artículo proporciona especificaciones y fotos del soporte E275623 para monitores de la serie IDS 02

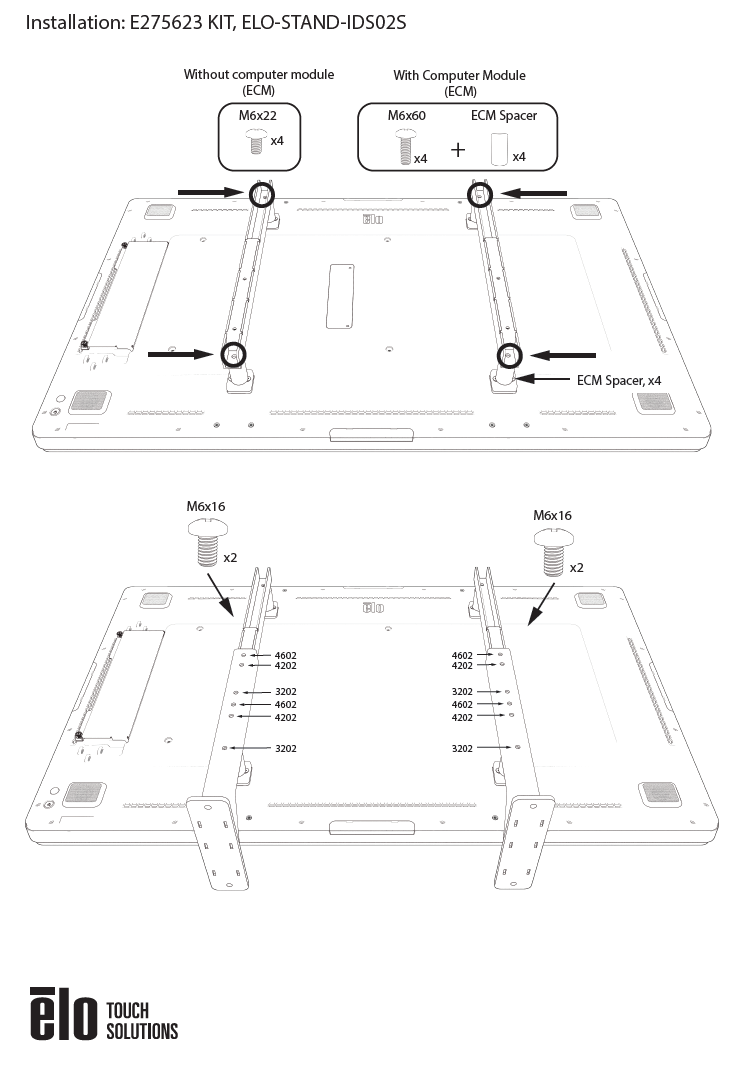

Vea a continuación las especificaciones y fotos del soporte E275623 para monitores de la serie IDS 02.

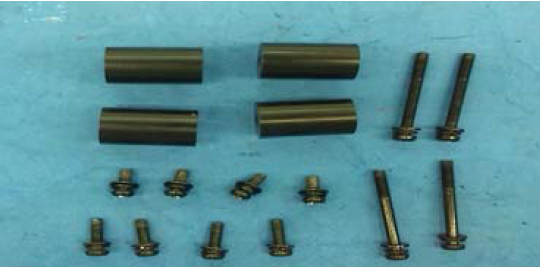

Contenido del kit:

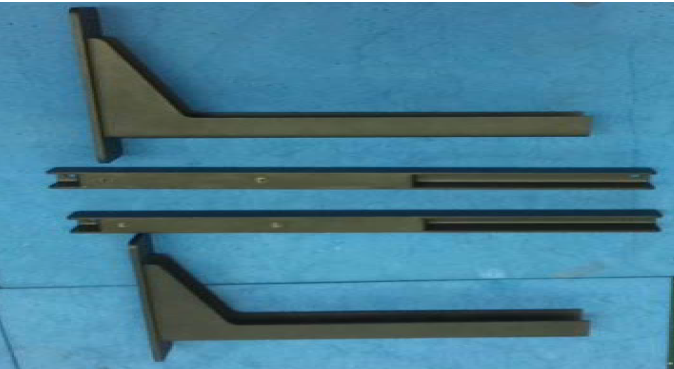

  • 2x IDS3_STAND_MNT
  • 2x IDS3_STAND_LEG
  • 4x tornillos Phillips M6 x 22mm
  • 4x tornillos Phillips M6 x 16mm
  • 4x tornillos Phillips M6 x 60mm
  • 4x ESPACIADOR VESA de 39MM de largo

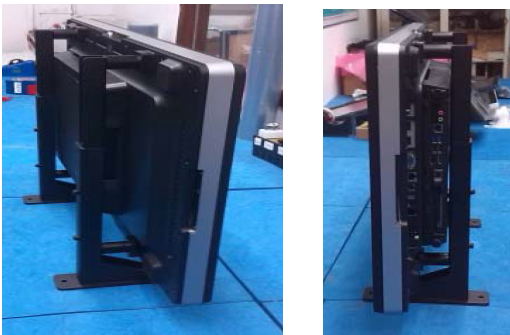

Fotos:
