¿Dónde puedo encontrar información sobre E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M?

Este artículo proporciona información sobre E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

La información a continuación es para Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

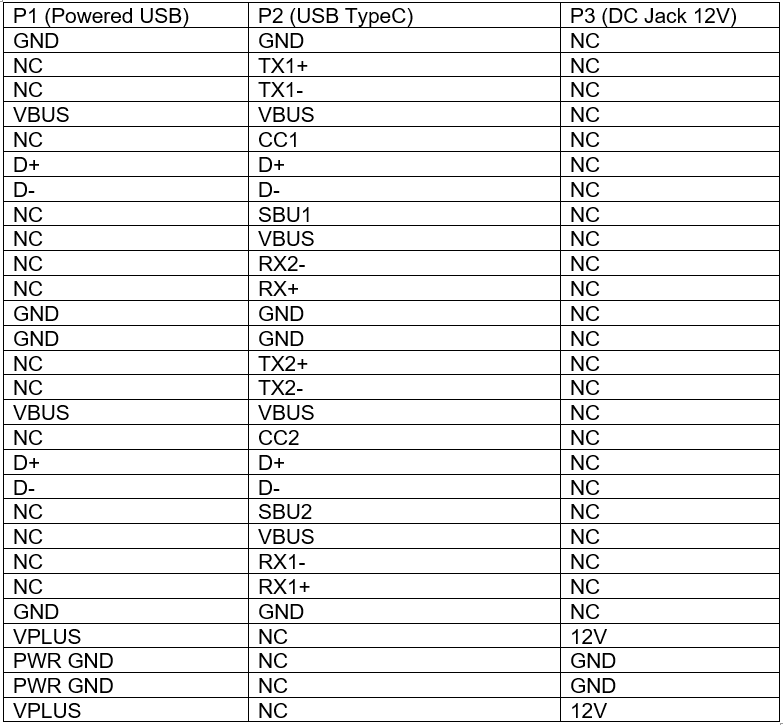

Especificaciones:

  • El cable Power-via-USB para TypeC debe incluir tres tipos de conectores en el cable.
    • Un lado (P1) debe ser un conector macho USB Powered estándar
    • El otro lado debe ser USB TipoC (P2) y conector DC 12V (P3)
    • El cable debe medir 3.0 m de largo, negro

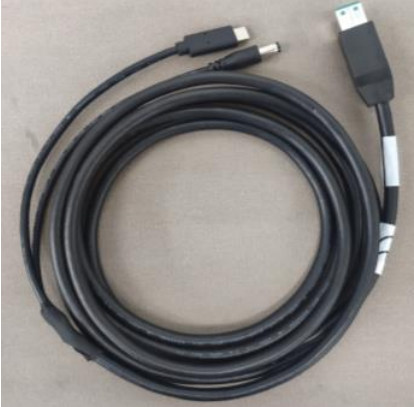

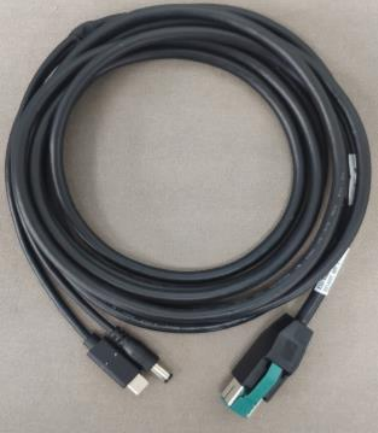

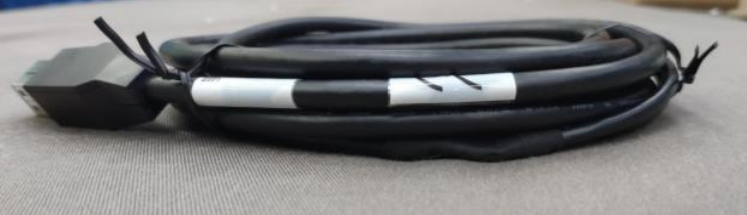

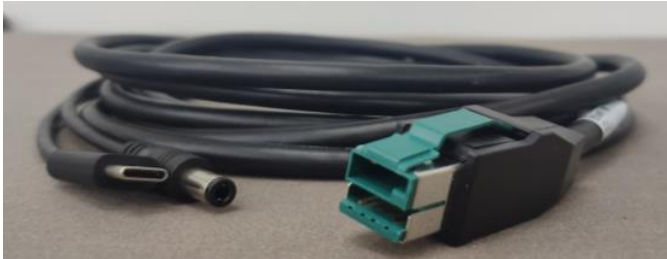

Fotos
