For ZEBRA mobile computers, scanners, printers, and RFID products visit the Zebra Support page.

Búsqueda

Bienvenido al soporte de Elo

Controladores, información del producto, respuestas técnicas y más.

¿Dónde puedo encontrar los diagramas de pines y dimensiones del controlador 2701 RSU IntelliTouch?

Este artículo proporciona los pinouts y dimensiones del controlador 2701 RSU IntelliTouch

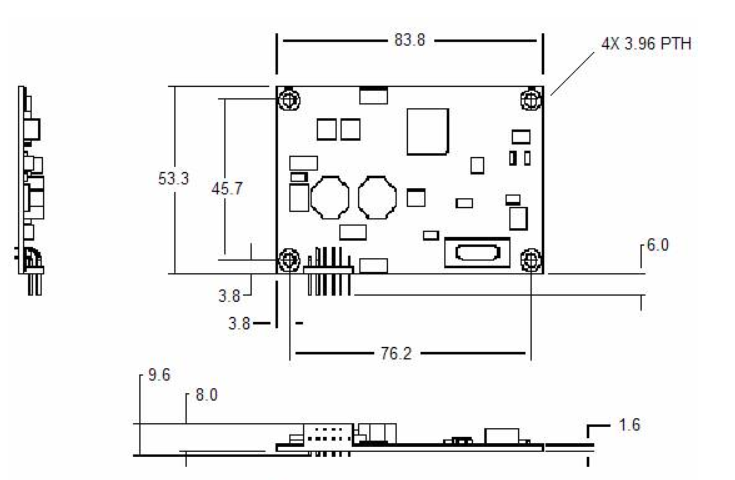

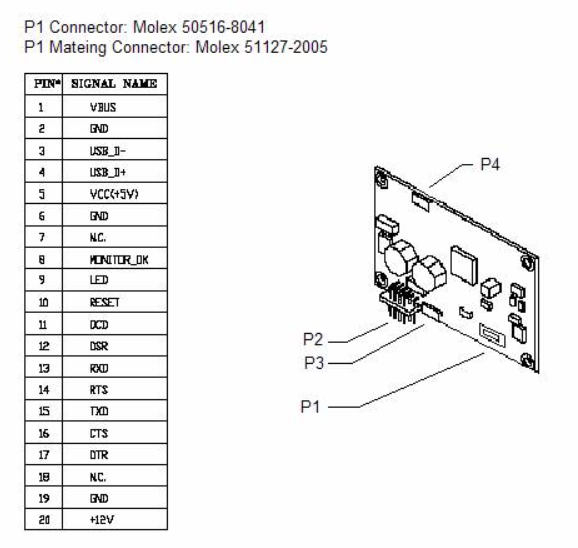

Consulte a continuación los pinouts y dimensiones del controlador 2701 RSU IntelliTouch.






Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
