¿Dónde puedo encontrar los puentes y las configuraciones de pines del controlador en serie IntelliTouch 2500S SmartSet?

Este artículo proporciona los puentes y pinouts del controlador serie SmartSet IntelliTouch 2500S

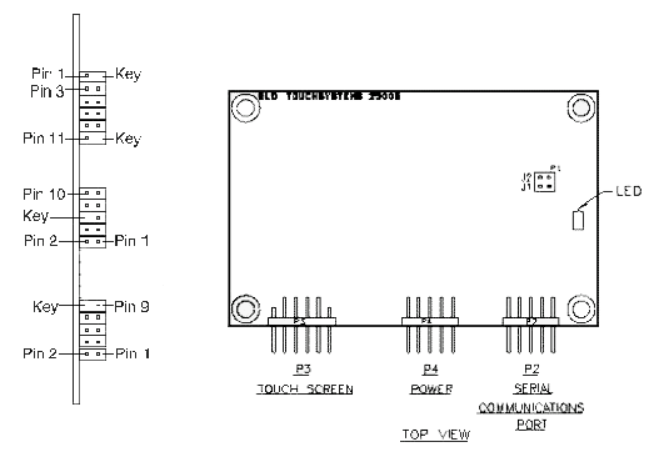

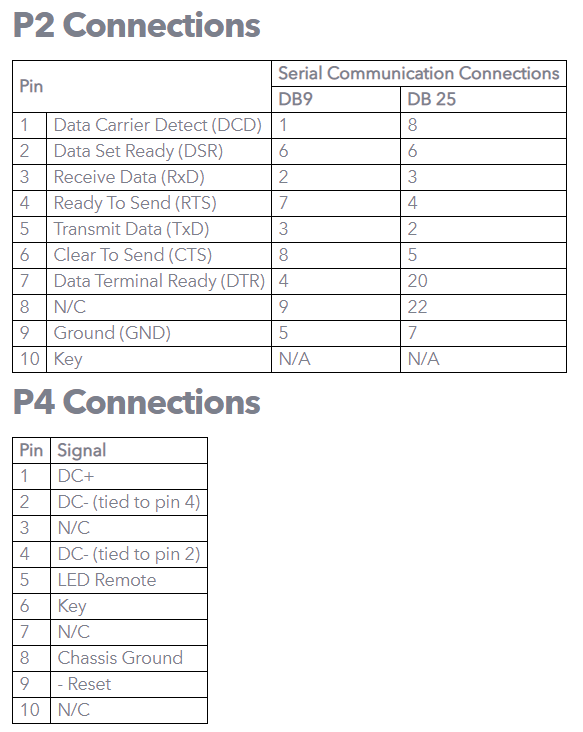

Vea a continuación los puentes y pinouts del controlador serie SmartSet IntelliTouch 2500S.
