¿Dónde puedo encontrar información sobre P/N: E038989 Soporte de poste orientado hacia atrás para la serie X?

Este artículo proporciona información sobre P/N: E038989 soporte de poste orientado hacia atrás para la serie X

Abajo se presenta información sobre Elo P/N: E038989 soporte de poste orientado hacia atrás para el AIO TouchComputer de la serie X.

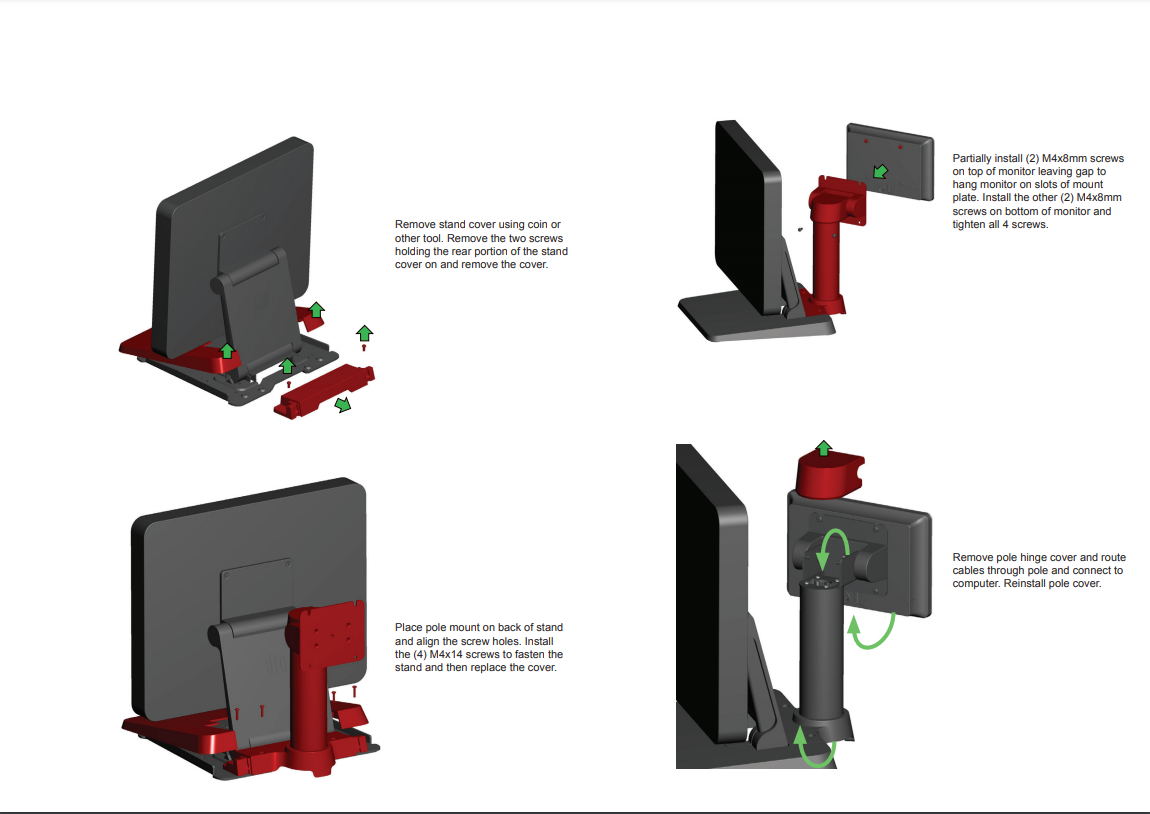

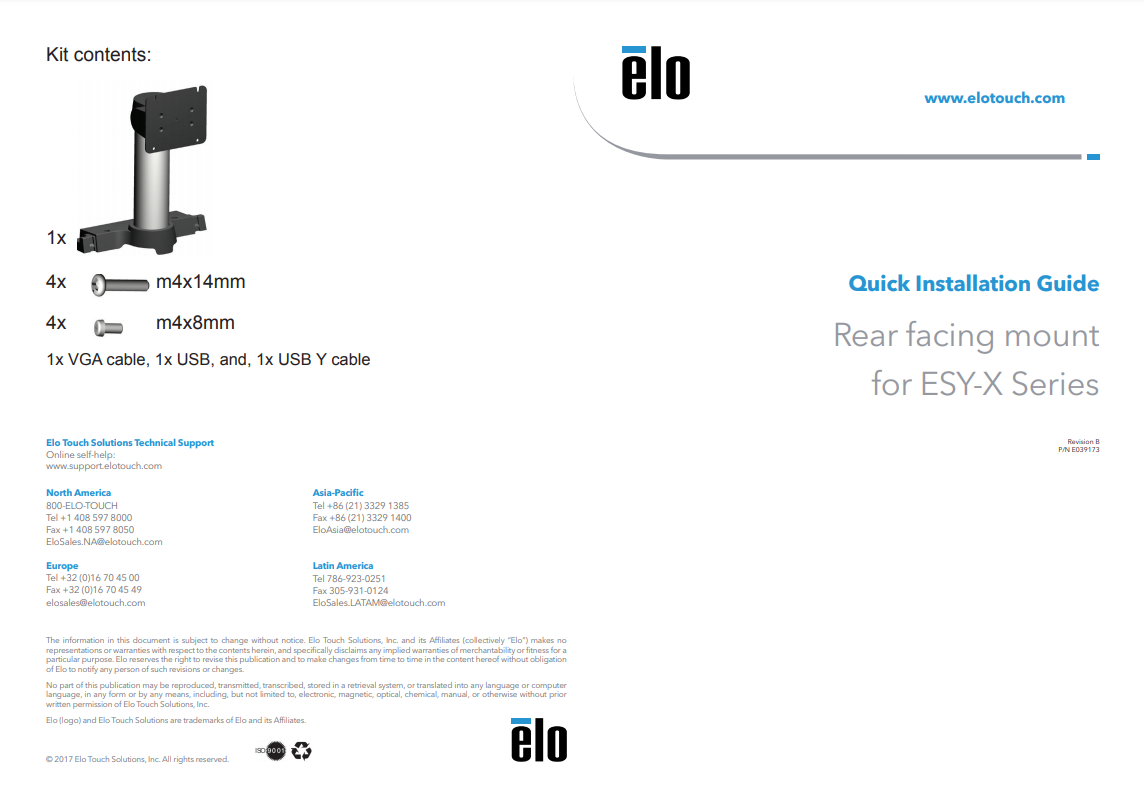

Guía de Instalación Rápida:

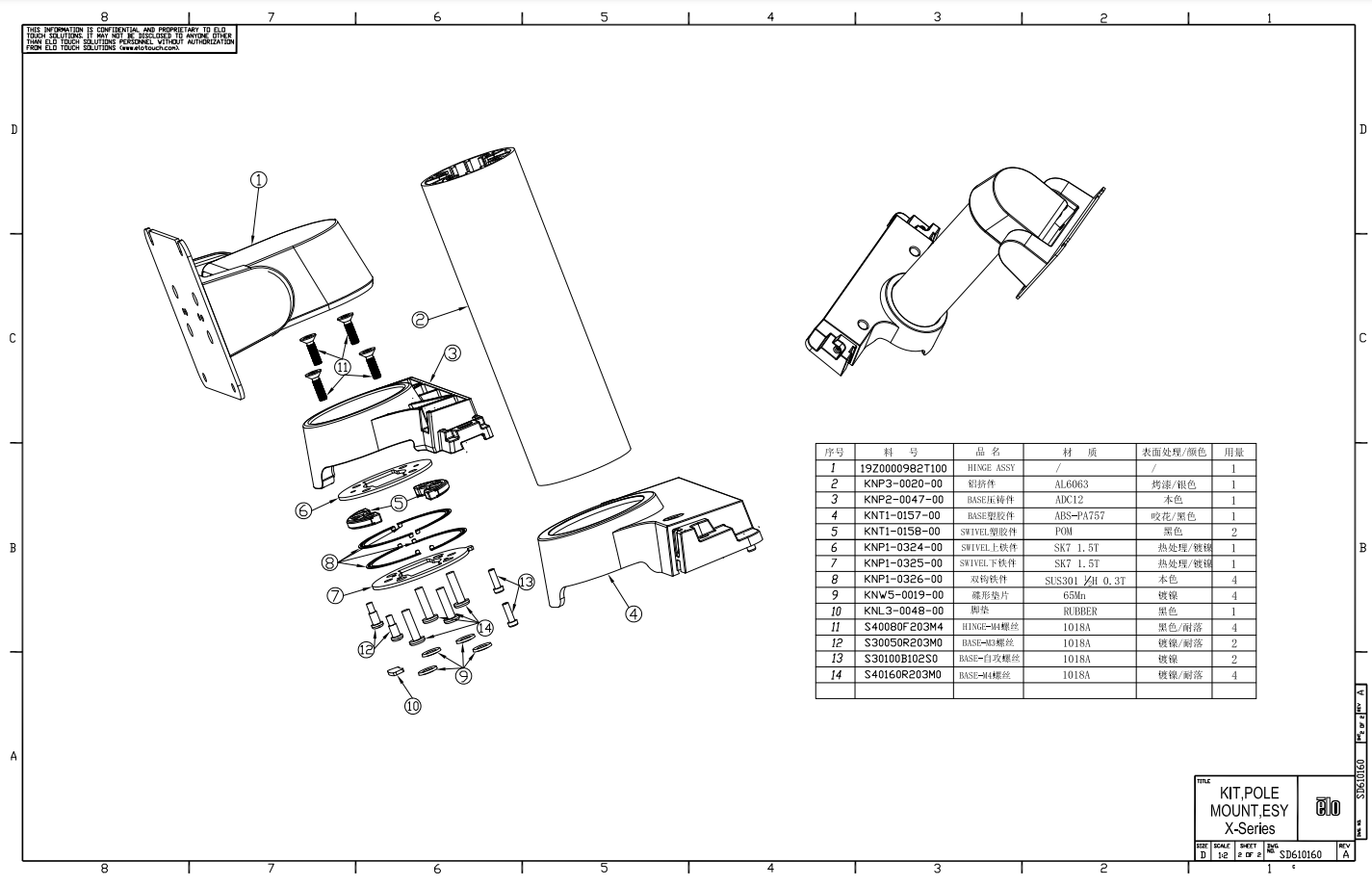

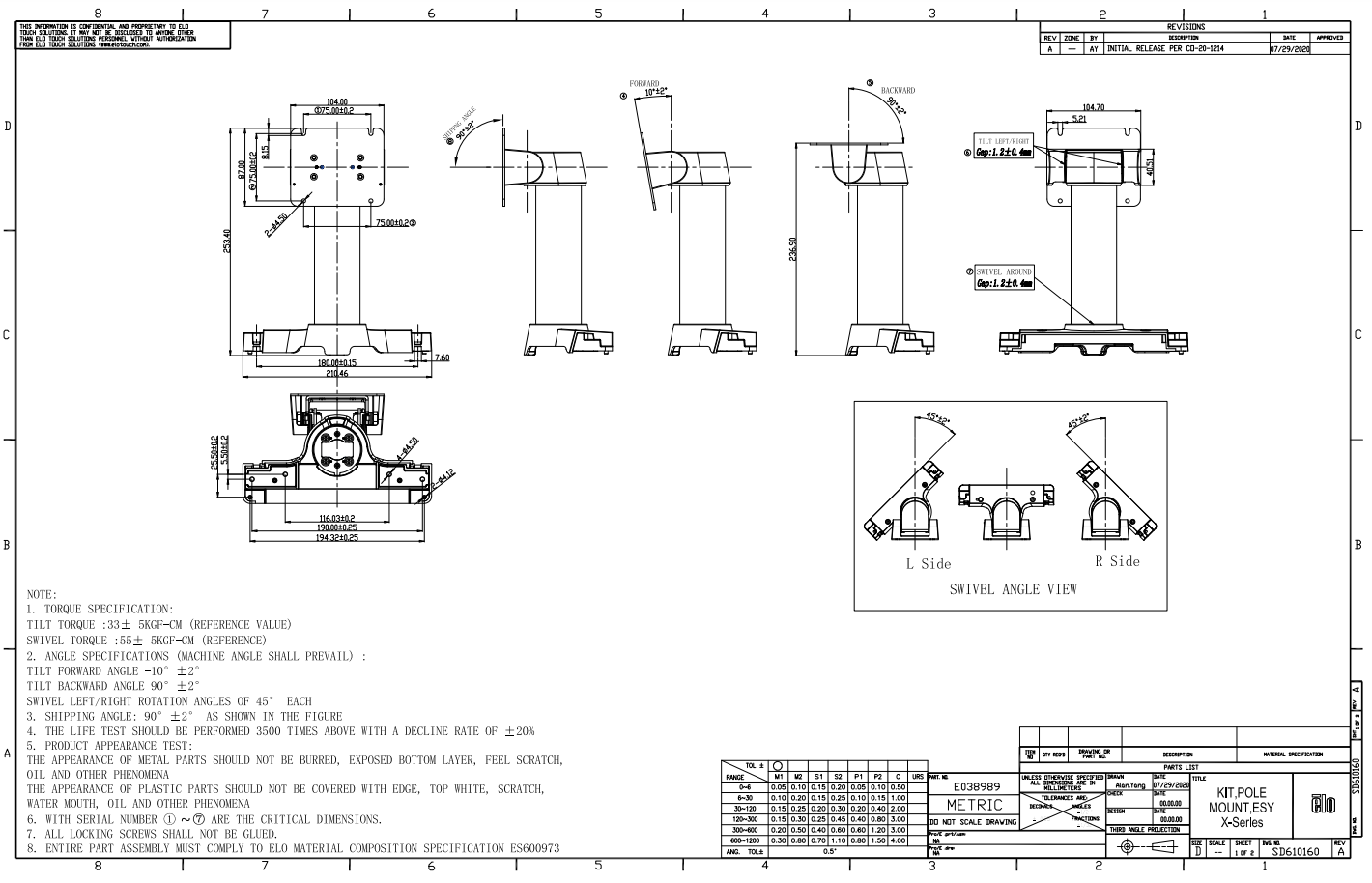

Planos Dimensionales:

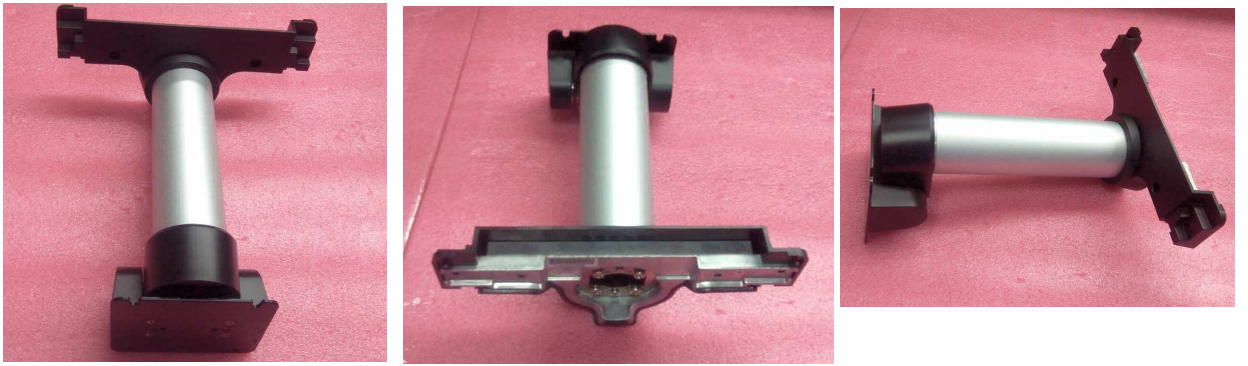

Fotos:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
