¿Dónde puedo encontrar el pinout del cable RJ45 a DB9 para las unidades EloPOS?

Este artículo describe el pinout del cable RJ45 a DB9 que viene en la caja con las unidades EloPOS

Descripción de la pieza: 5K.47T20.501: CABLE RJ45-RS232 900MM EA15PA0-1

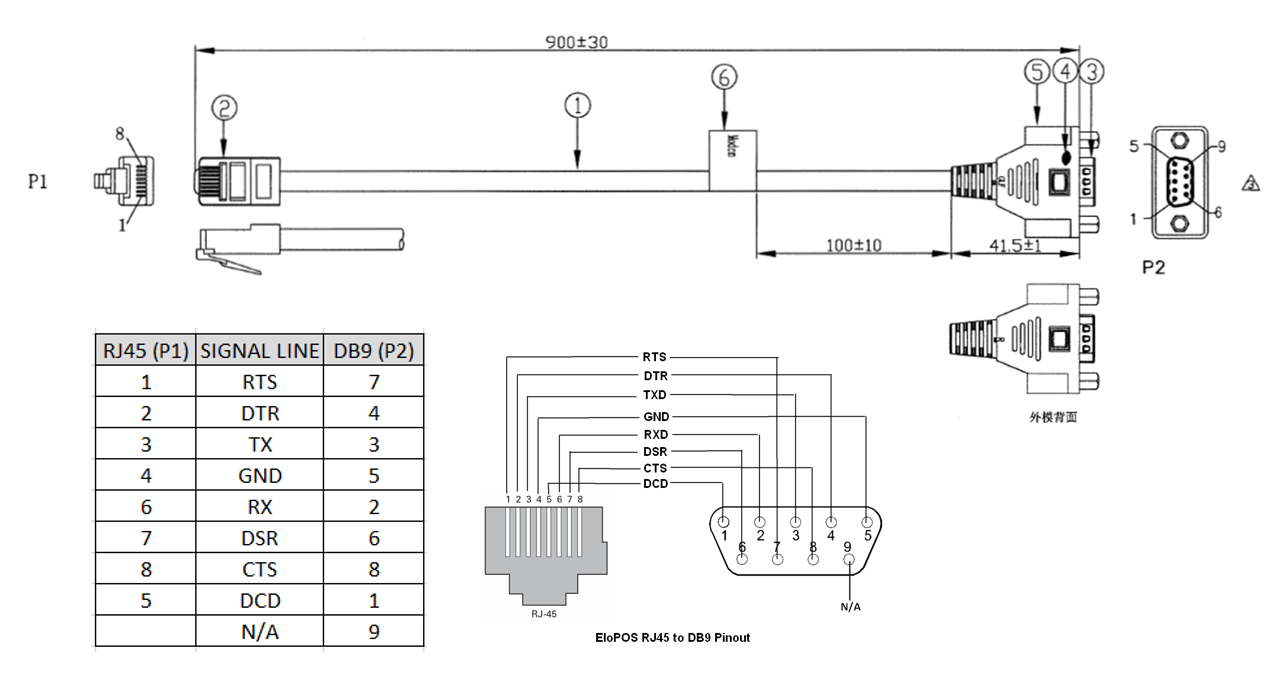

Pinout de EloPOS RJ45 a DB9

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
