Bienvenido al soporte de Elo

Controladores, información del producto, respuestas técnicas y más.

¿Dónde puedo encontrar el pinout para E196292, Cable RS232 a DB9 de la serie X?

Este artículo contiene el pinout para el E196292, Cable RS232 a DB9 de la serie X

A continuación se muestran el dibujo y los pinouts para P/N: E196292, Cable RS232 a DB9 de la serie X.

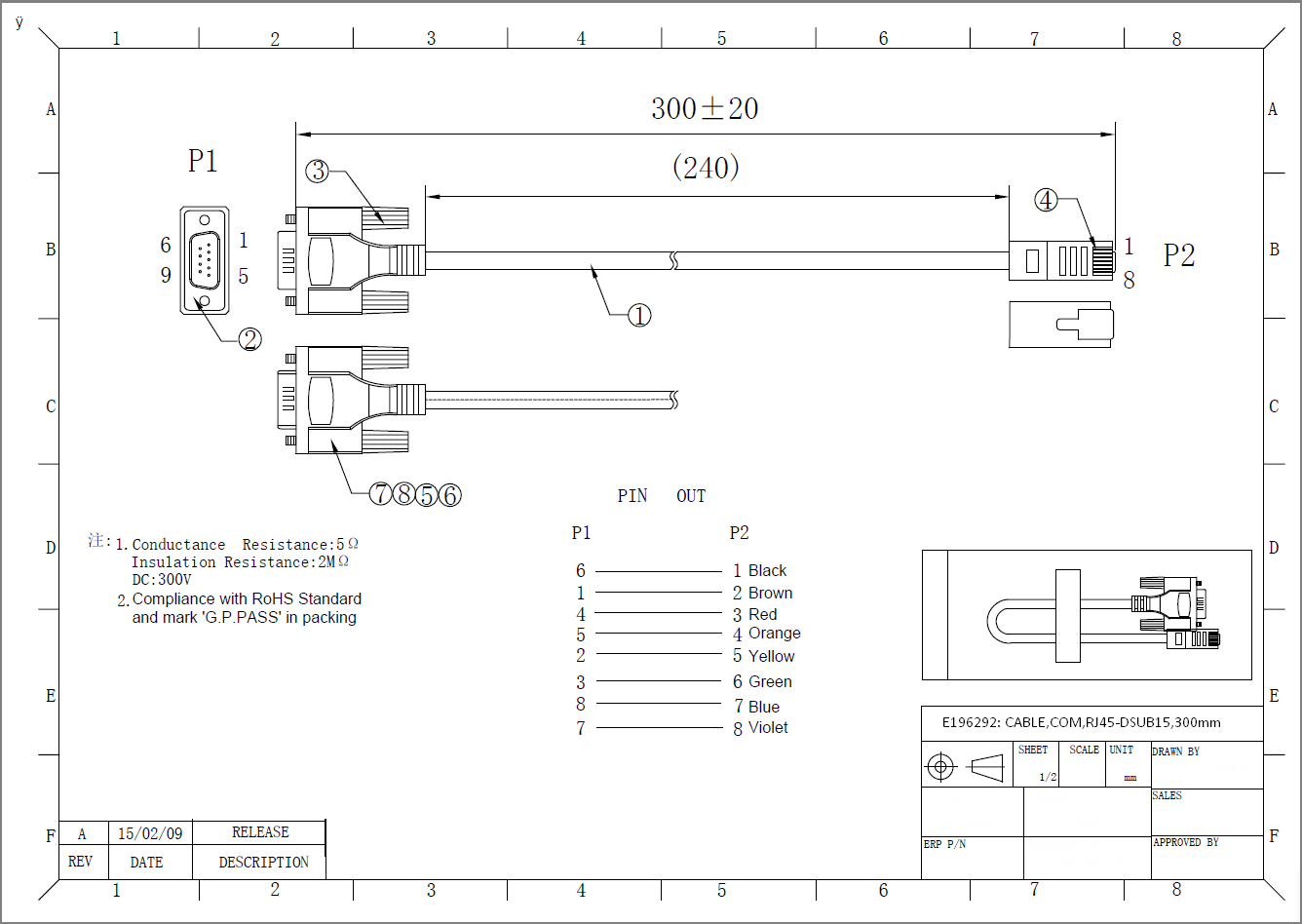

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

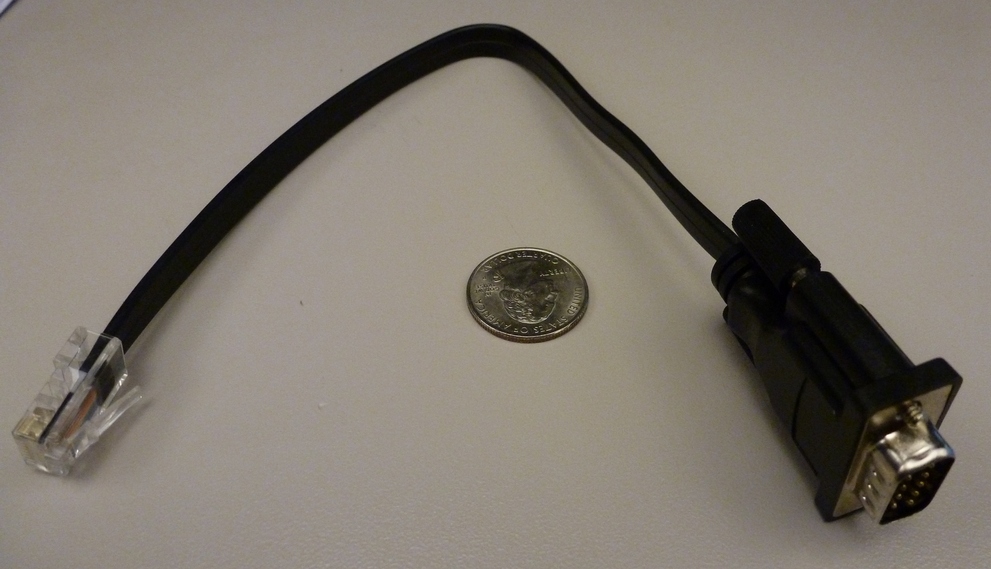

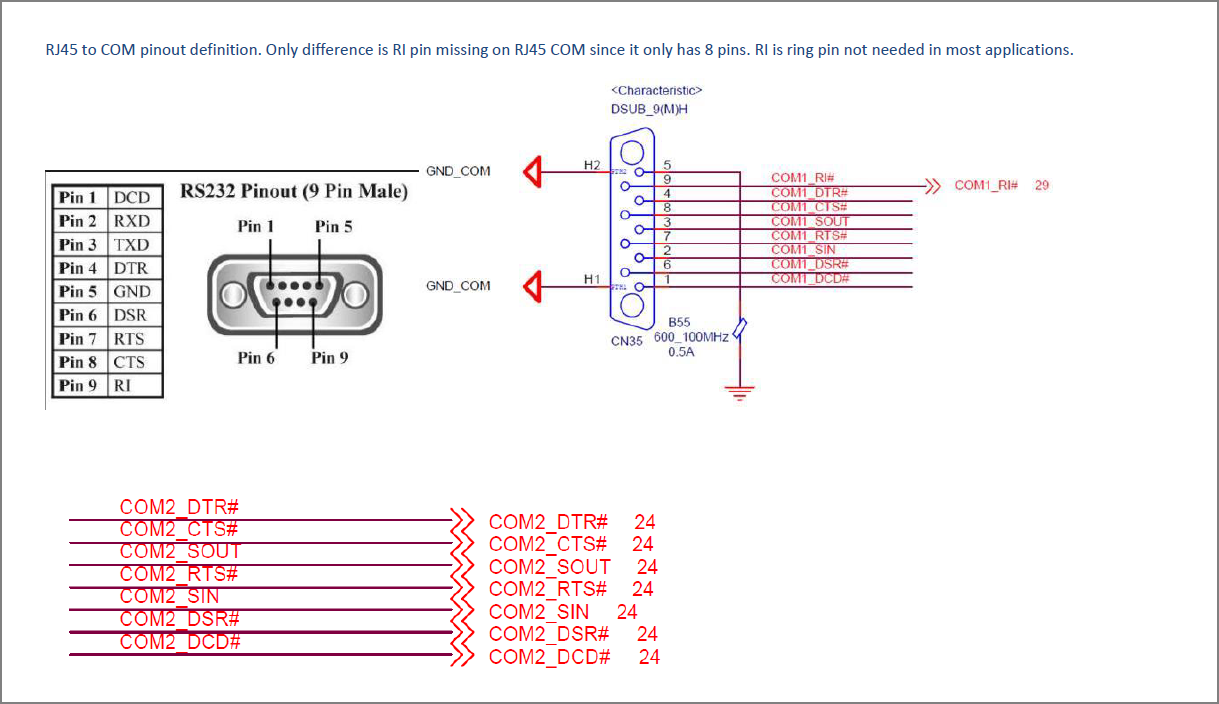

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg




Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
