¿Dónde puedo encontrar información sobre E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M?

Este artículo proporciona información sobre E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

La siguiente información es para Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

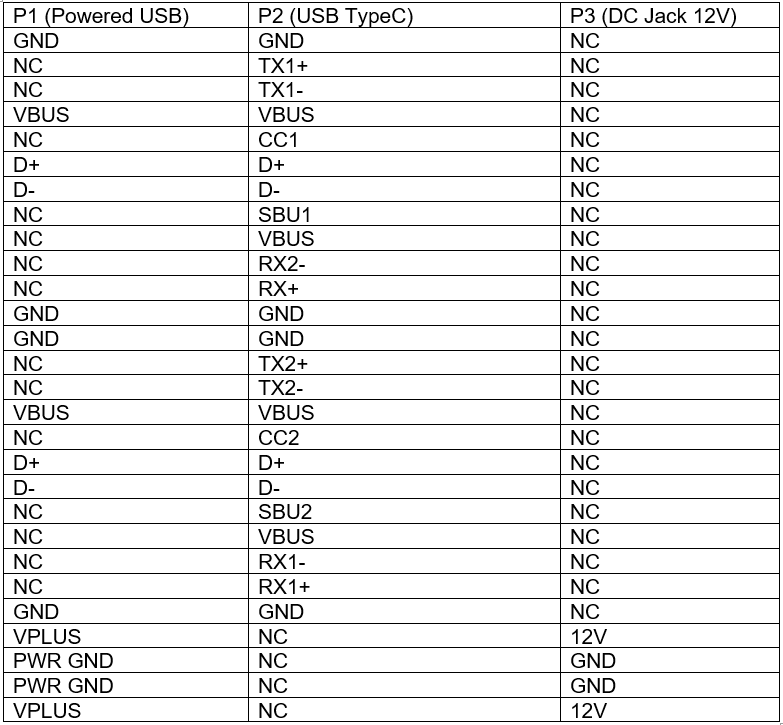

Especificaciones:

  • El cable Power-via-USB para TipoC deberá incluir tres tipos de conectores en el cable.
    • Un lado (P1) será un conector USB macho estándar con alimentación
    • El otro lado será un conector USB TipoC (P2) y un conector de CC 12V (P3)
    • El cable debe tener 3.0 m de largo, negro

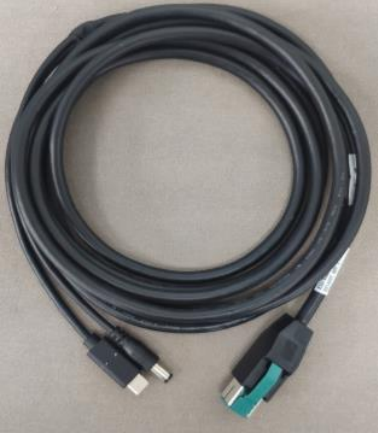

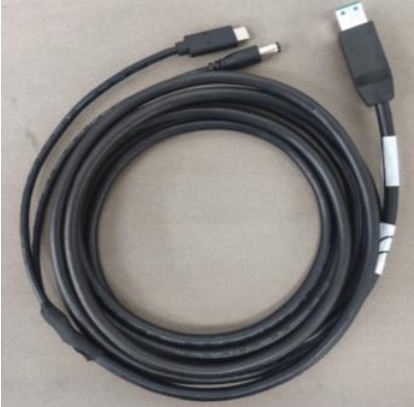

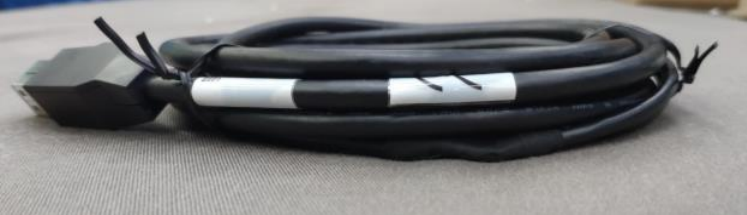

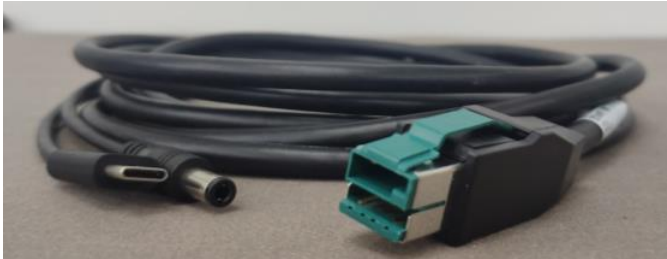

Fotos
