¿Cómo instalo la guía de rollo de papel en un sistema PayPoint?

Este artículo proporciona instrucciones sobre cómo instalar la guía de rollo de papel en un dispositivo PayPoint

Para los clientes que requieren un rollo de papel de recibo de 58 mm de ancho, el dispositivo PayPoint se envía con una guía de rollo de papel insertable. Vea a continuación cómo instalar la guía.

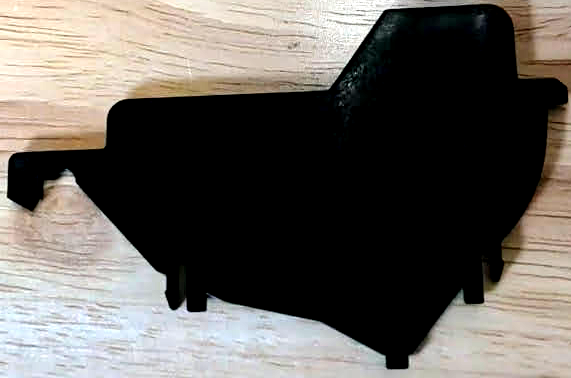

Foto de la guía

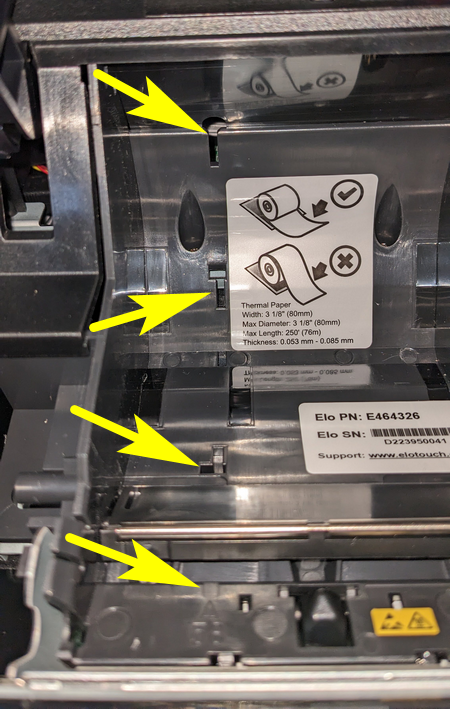

Lugares de montaje en la bahía de la impresora

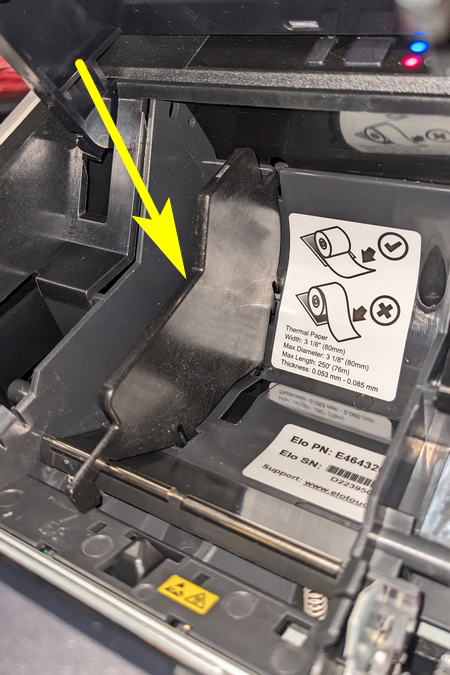

La foto muestra la guía de rollo de papel instalada

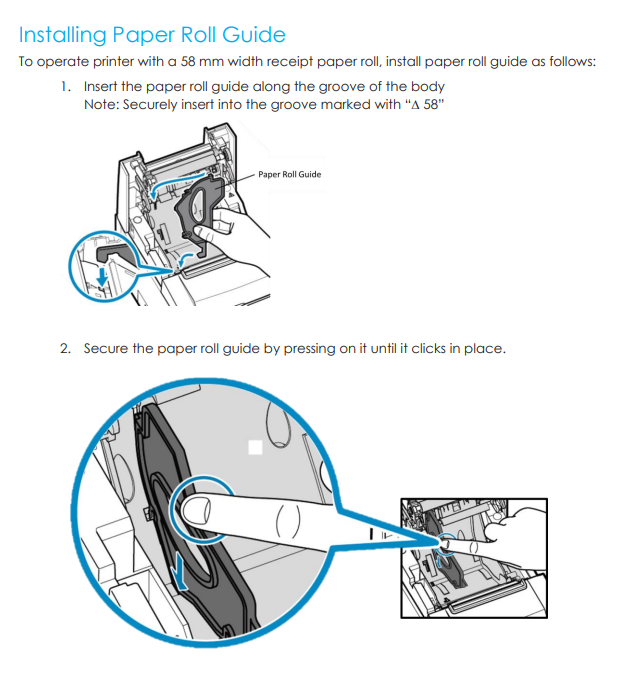

Pasos de instalación del Manual del Usuario de PayPoint
