Bienvenido al soporte de Elo

Controladores, información del producto, respuestas técnicas y más.

¿Dónde puedo encontrar información sobre E641484: Kit, cable RJ45 a DB9, EloPOS?

Este artículo contiene información sobre el E641484: Kit, cables de RJ45 a DB9 que se incluyen con los sistemas EloPOS

Descripción

  • Longitud: 900mm
  • RJ45 macho vertical a DB9 macho vertical (Tipo de cable directo)

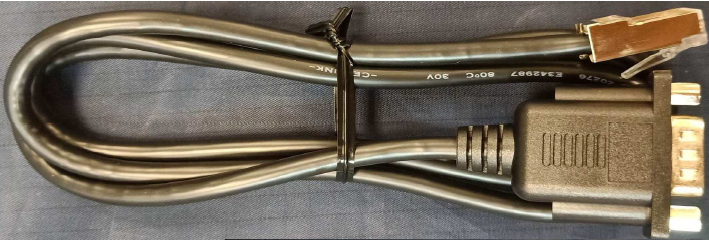

Foto

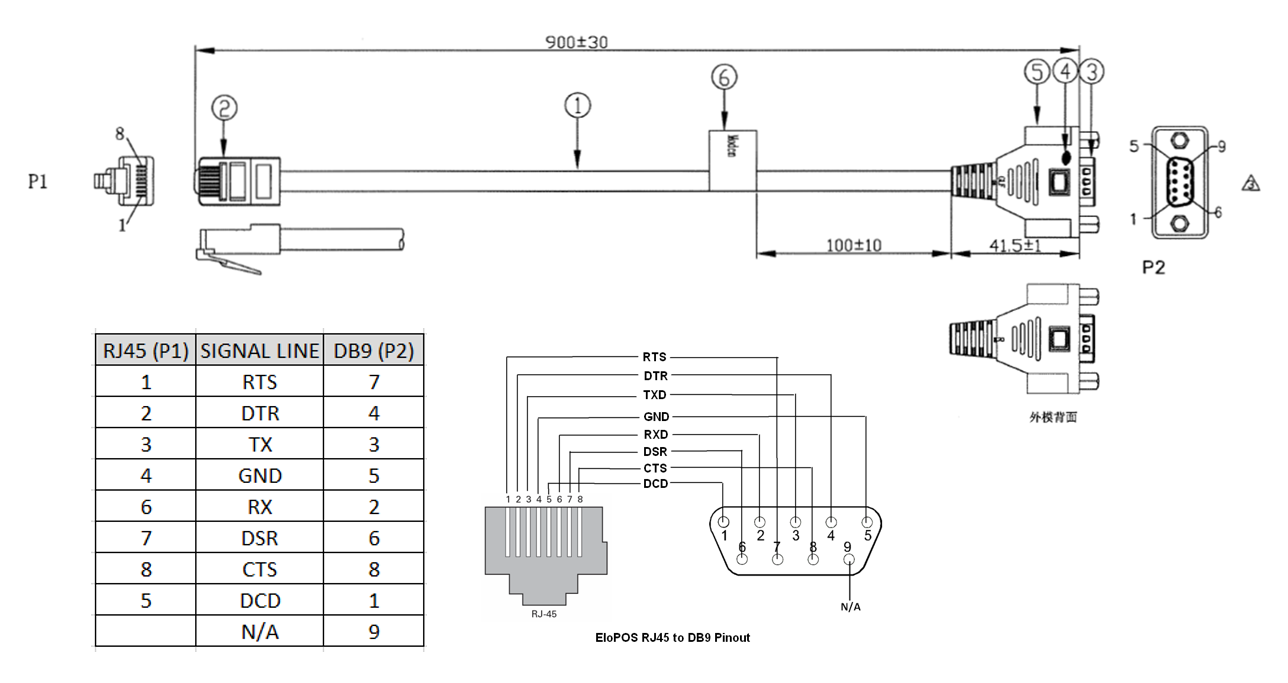

Dibujo y Pinout
