Où puis-je trouver un dessin dimensionnel pour l'appareil E-Series 2 ?

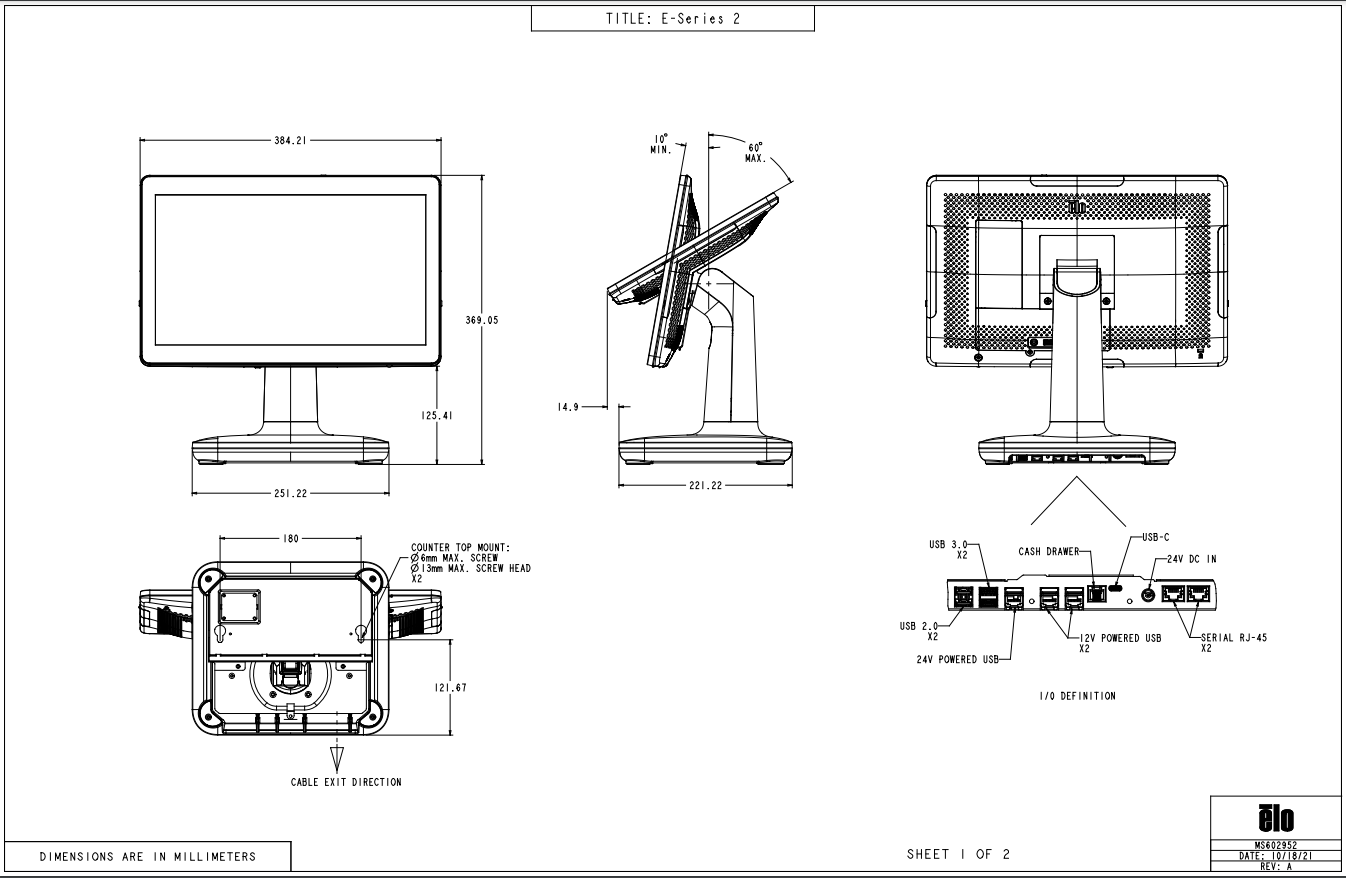

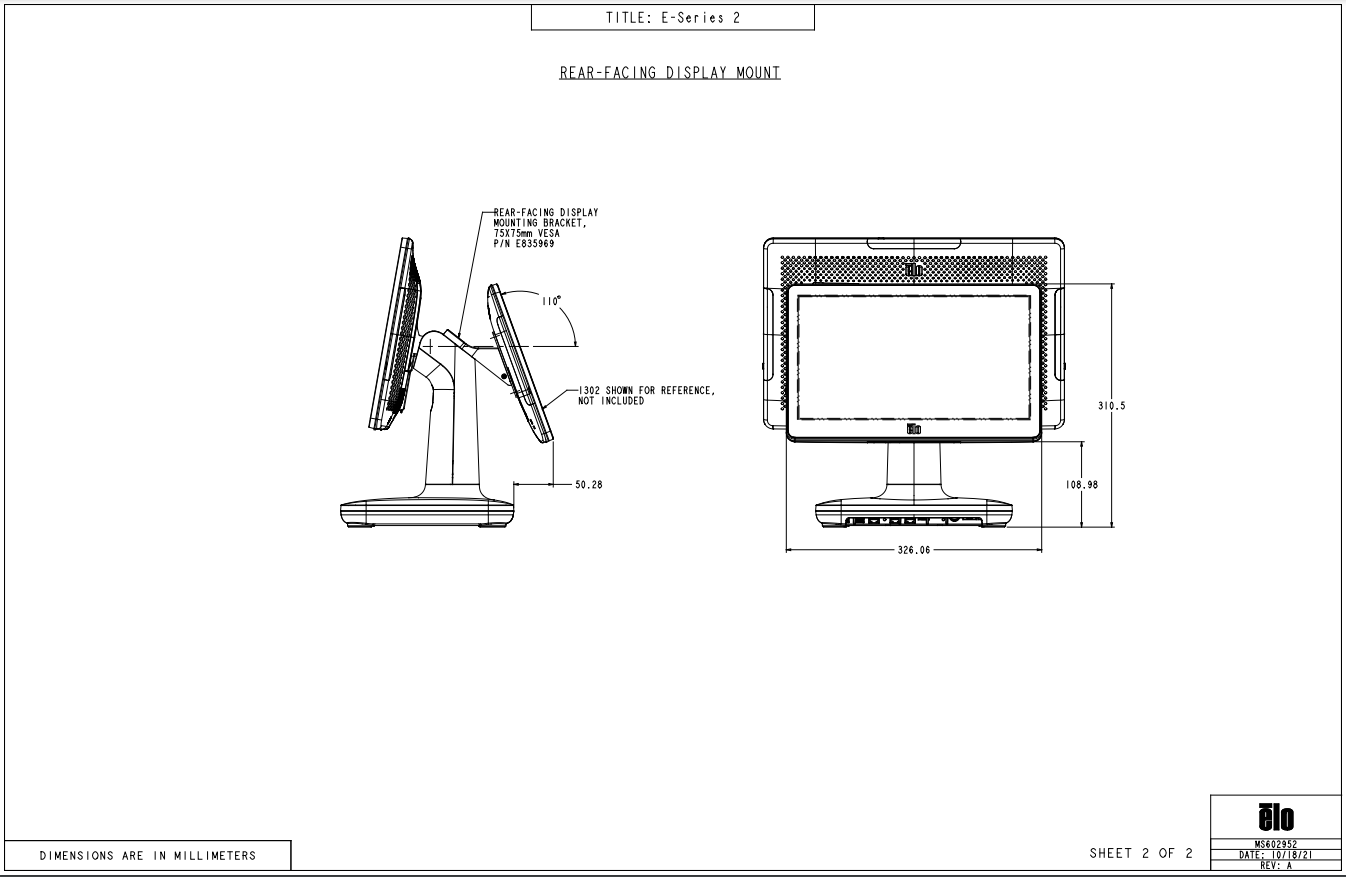

Cet article fournit le dessin dimensionnel pour l'ordinateur tactile E-Series 2 AIO.

Le dessin peut également être téléchargé depuis le site Web d'Elo
