Où puis-je trouver des informations sur le kit de façade de montage en rack Elo 2293L-2294L E462672 ?

Cet article fournit des informations sur le E462672 Elo 2293L-2294L Monture de rack Bezel

E462672 Elo 2293L-2294L Monture de rack Bezel, uniquement adaptée aux versions intelliTouch, SecureTouch, AccuTouch des produits. Ce support nécessite un espace de rack de 12U.

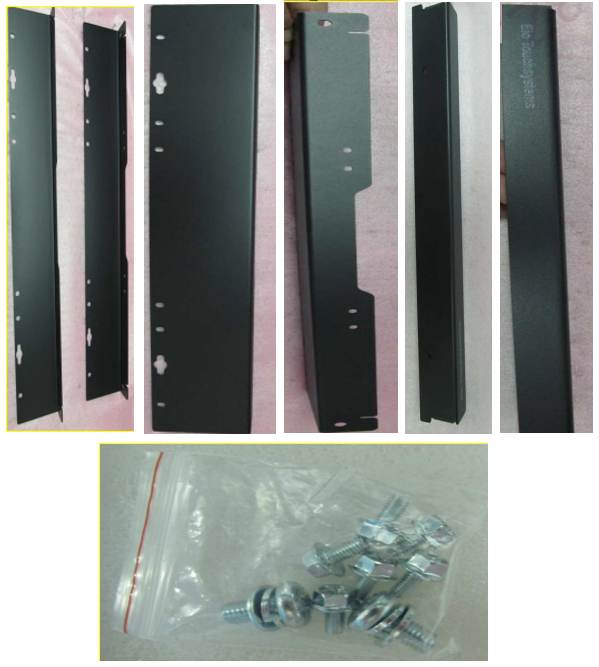

Contenu du kit :

  • 1x SUPPORT, MONTAGE RACK INFÉRIEUR
  • 2x SUPPORT, LATÉRAL, MONTAGE RACK
  • 4x VIS, PHIL, PNHD AVEC CAPT WHRS, M6X12L-R
  • 4x VIS, HXHD, PHIL, SERRATION, M4X

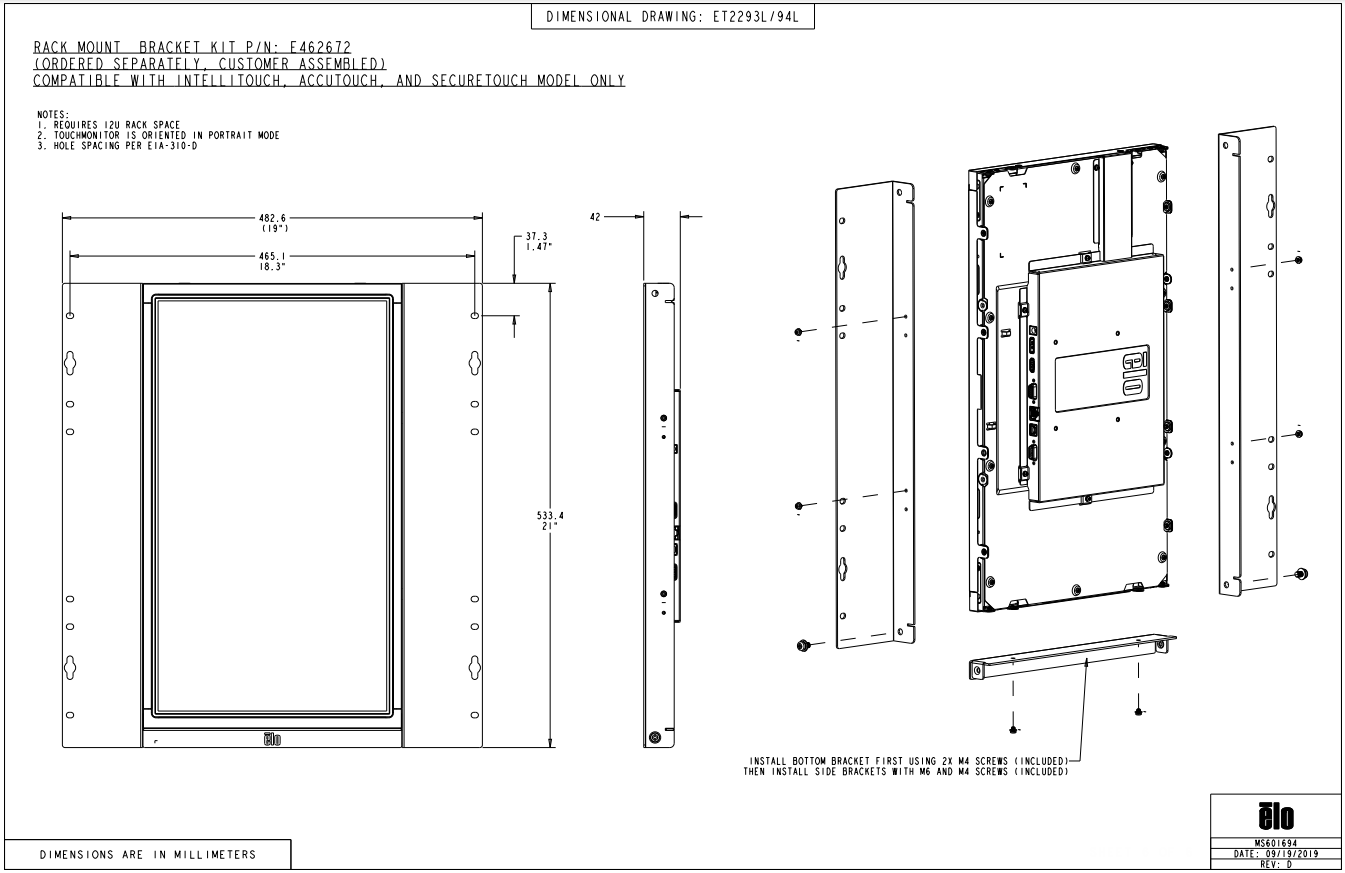

Schéma et assemblage
