Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

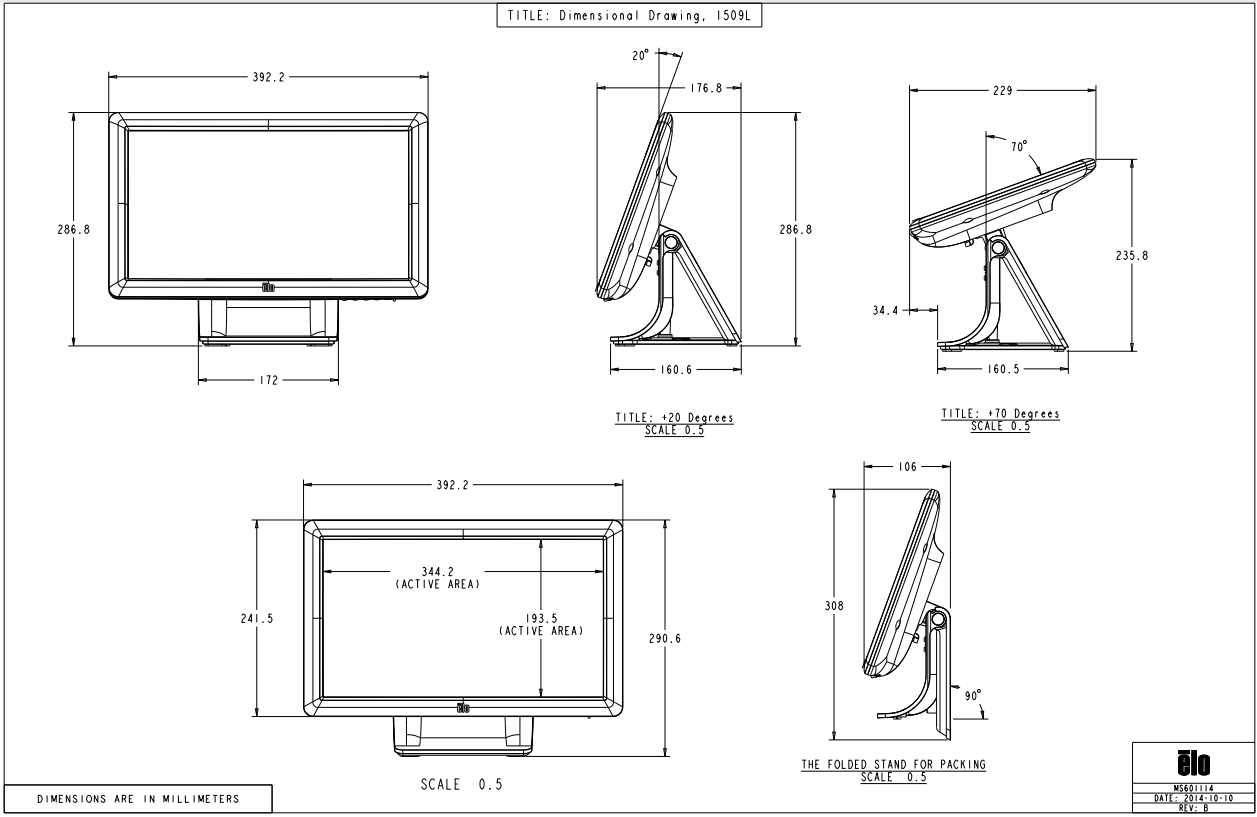

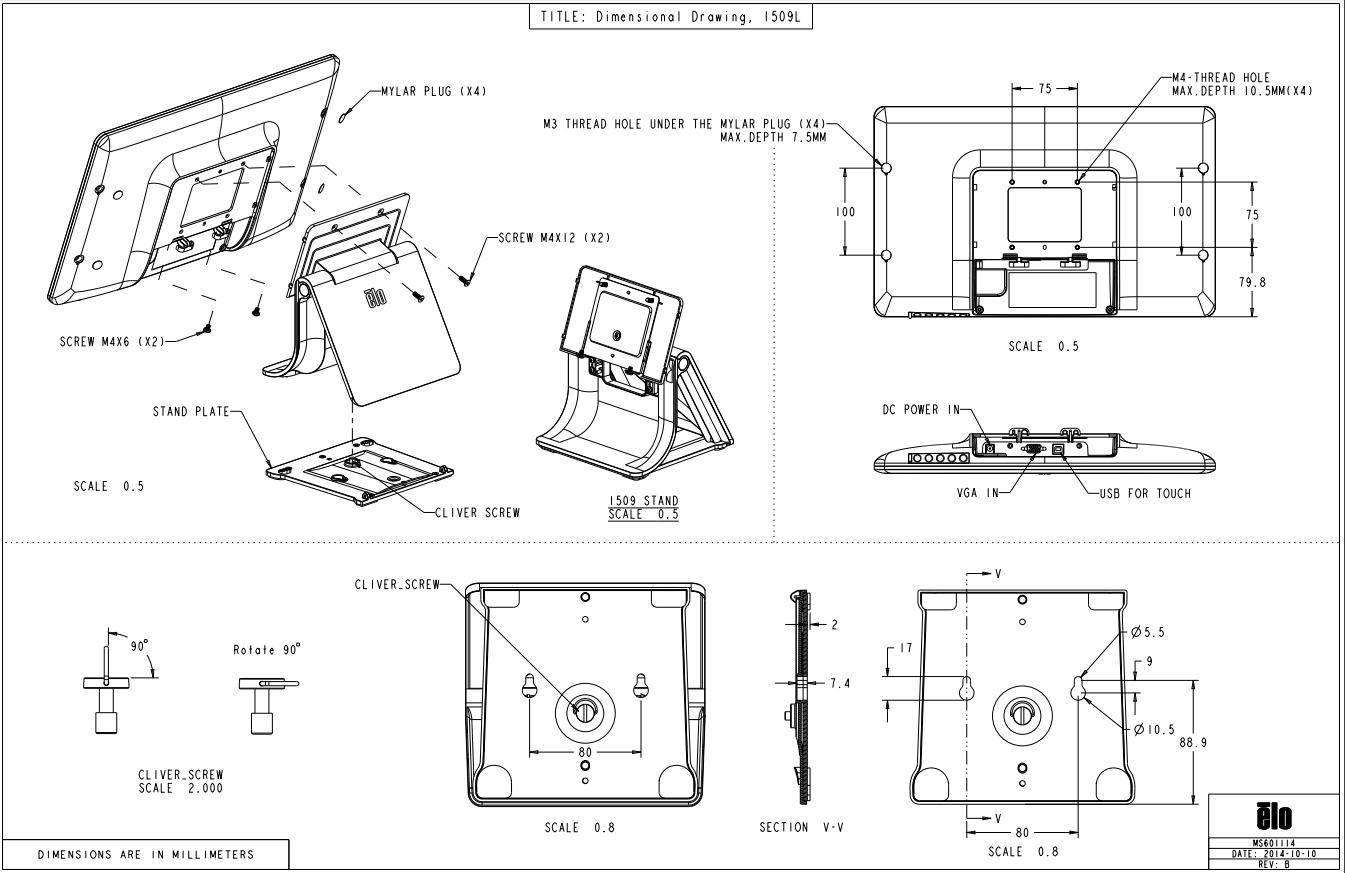

Où puis-je trouver un dessin de E534869 : ET1509L-8UWA-0-G (obsolète) ?

Cet article fournit des dessins de E534869: ET1509L-8UWA-0-G (produit supprimé le 28 mars 2023).


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
