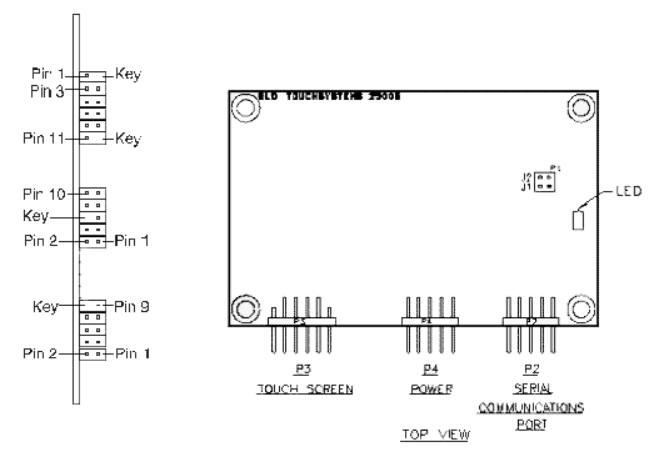

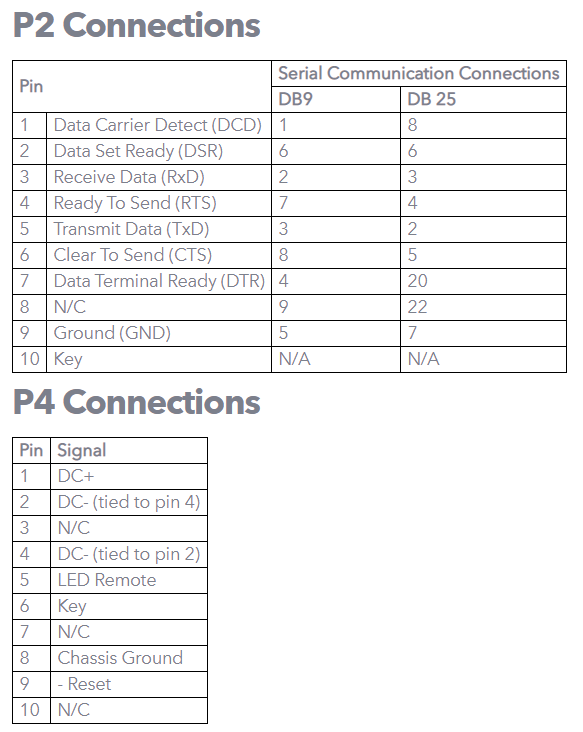

Dove posso trovare i jumper e i pinout del controller seriale IntelliTouch 2500S SmartSet?

Questo articolo fornisce i ponticelli e le configurazioni dei pin del Controller Seriali SmartSet IntelliTouch 2500S

Vedi di seguito per i ponticelli e le configurazioni dei pin del Controller Seriali SmartSet IntelliTouch 2500S.
