Qual è il supporto VESA sul monitor Elo 1302L?

Questo articolo fornisce informazioni sul tipo di montaggio presente nel monitor Elo 1302L

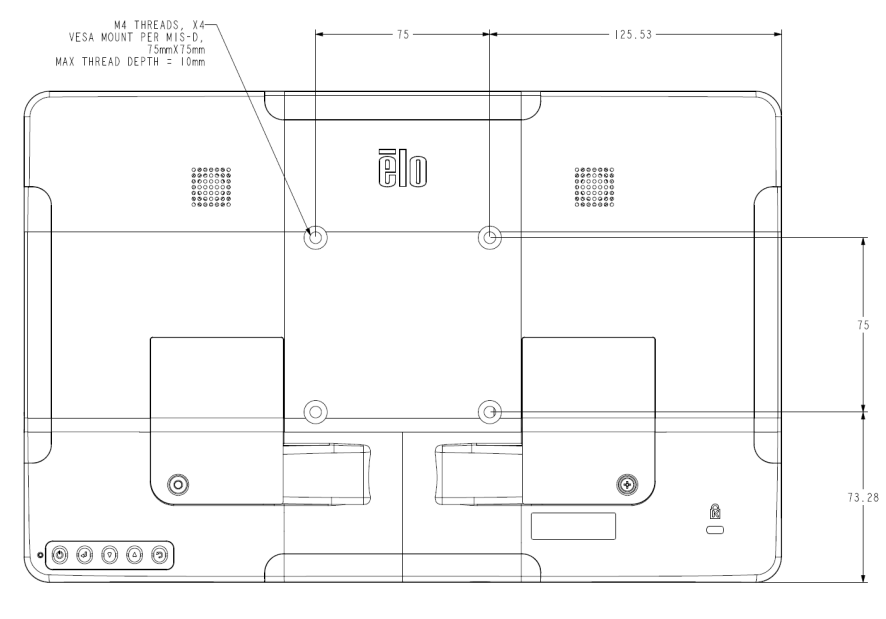

Montaggio VESA posteriore sul Elo ET1302L:

È fornita un'interfaccia di montaggio a quattro fori 75 x 75 mm per viti M4 sul retro del monitor. Rimuovere il supporto con un cacciavite a croce per accedere all'interfaccia di montaggio. Il conteggio conforme al VESA FDMI è codificato VESA MIS-D, 75, C.
