Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

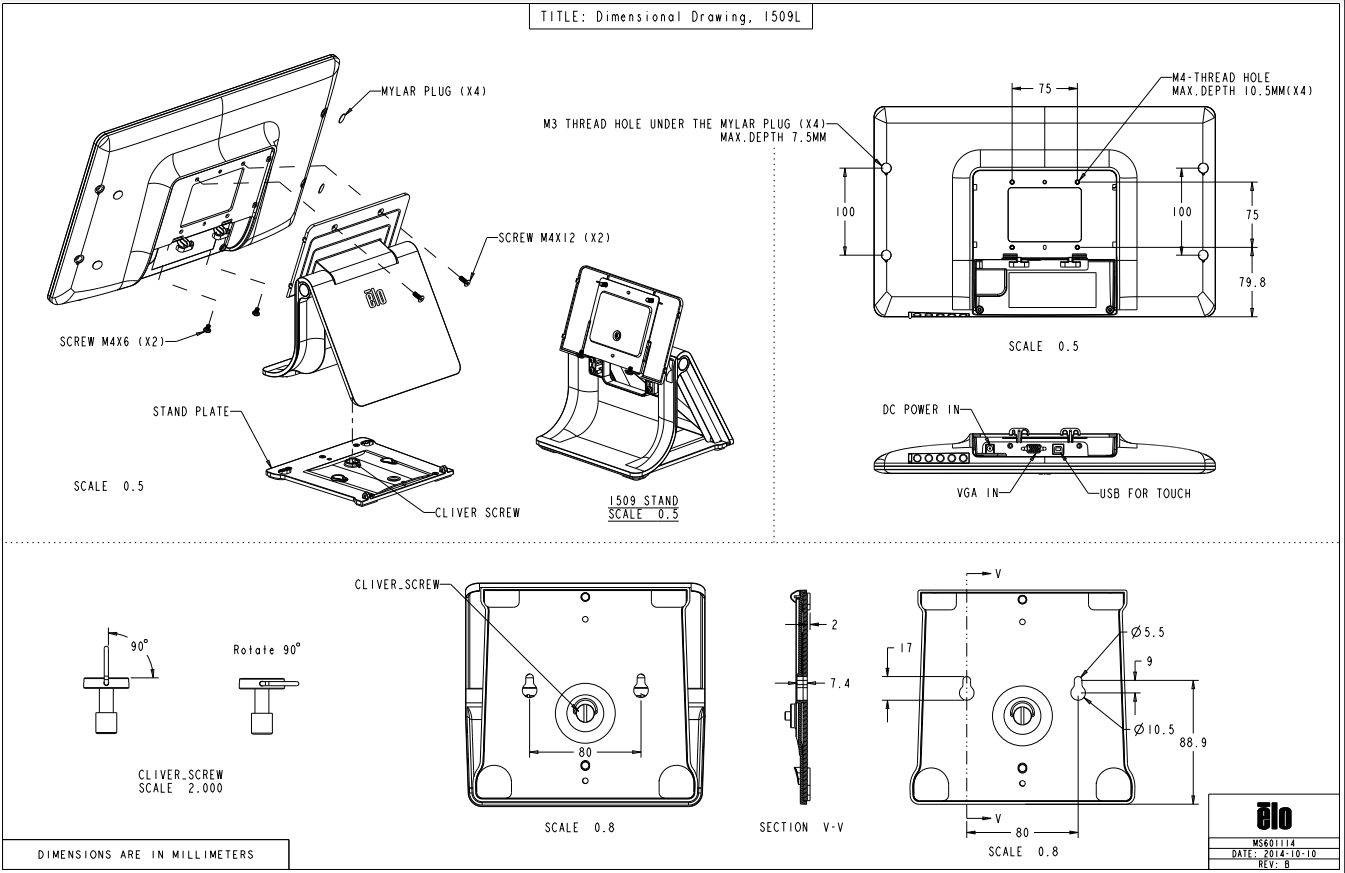

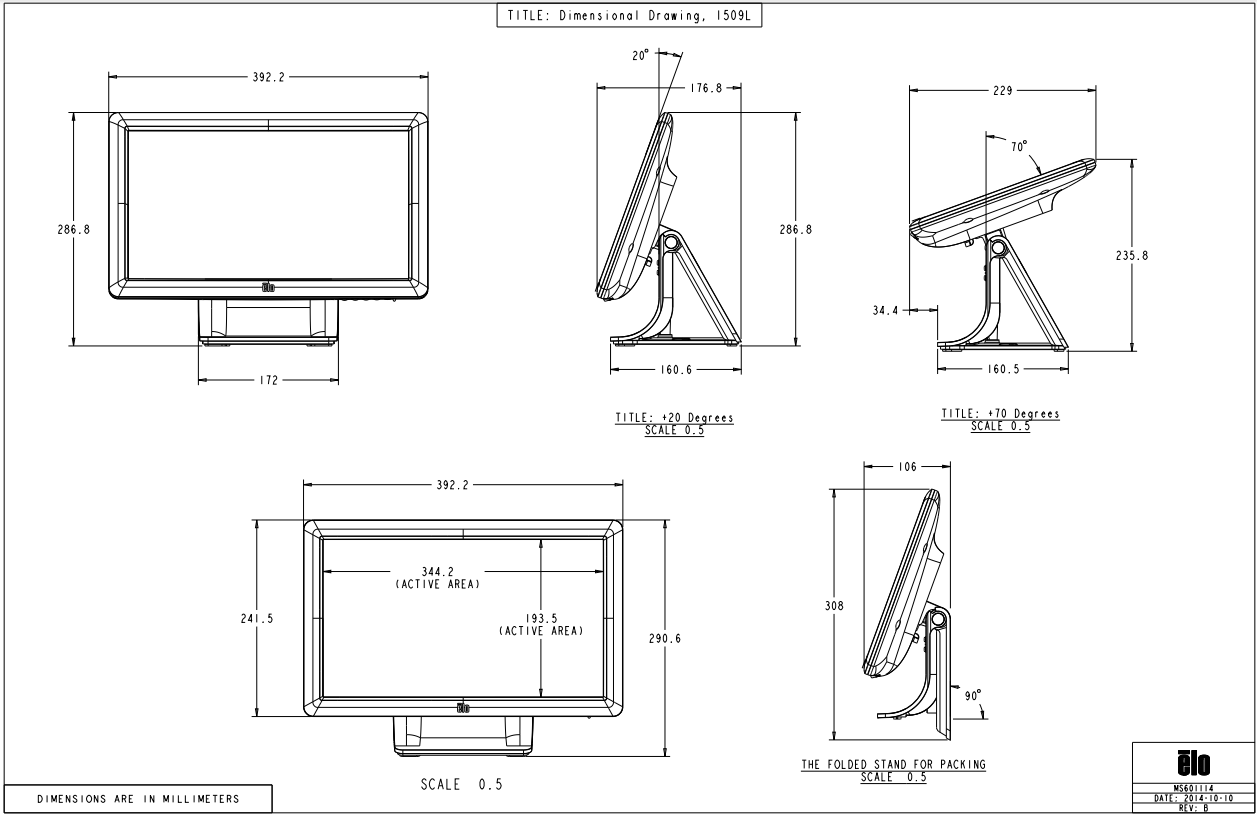

Dove posso trovare un disegno di E534869: ET1509L-8UWA-0-G (obsoleto)?

Questo articolo fornisce disegni di E534869: ET1509L-8UWA-0-G (prodotto dismesso il 28 marzo 2023).


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
