Che cos'è il supporto VESA sul monitor Elo 1517L?

Questo articolo fornisce quale opzione di montaggio è disponibile sul monitor Elo 1517L

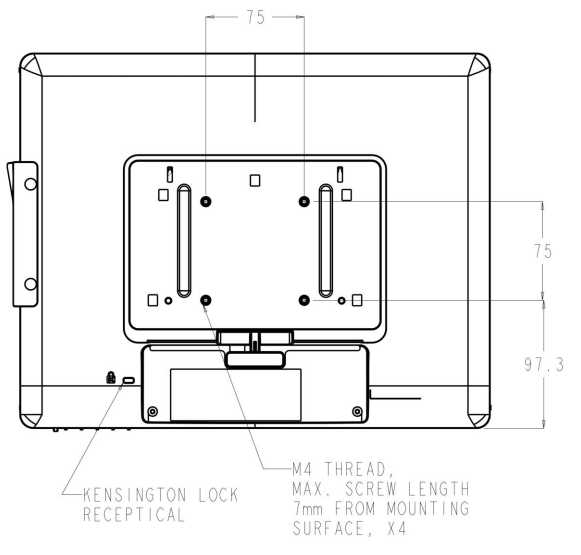

Montaggio VESA posteriore sul monitor Elo 1517L:

Per il touchmonitor 1517L, è fornito un modello di montaggio a quattro fori 75x75mm per viti M4 sulla parte posteriore del monitor. Rimuovere il supporto utilizzando un cacciavite a croce per accedere a questa interfaccia di montaggio. Il conteggio conforme a VESA FDMI è codificato: VESA MIS-B, 75, C.
