Dove posso trovare il pinout per il cavo RJ45 a DB9 per le unità EloPOS?

Questo articolo descrive la pinout del cavo RJ45 a DB9 che viene fornito nella confezione con le unità EloPOS

Descrizione del pezzo: 5K.47T20.501: CAVO RJ45-RS232 900MM EA15PA0-1

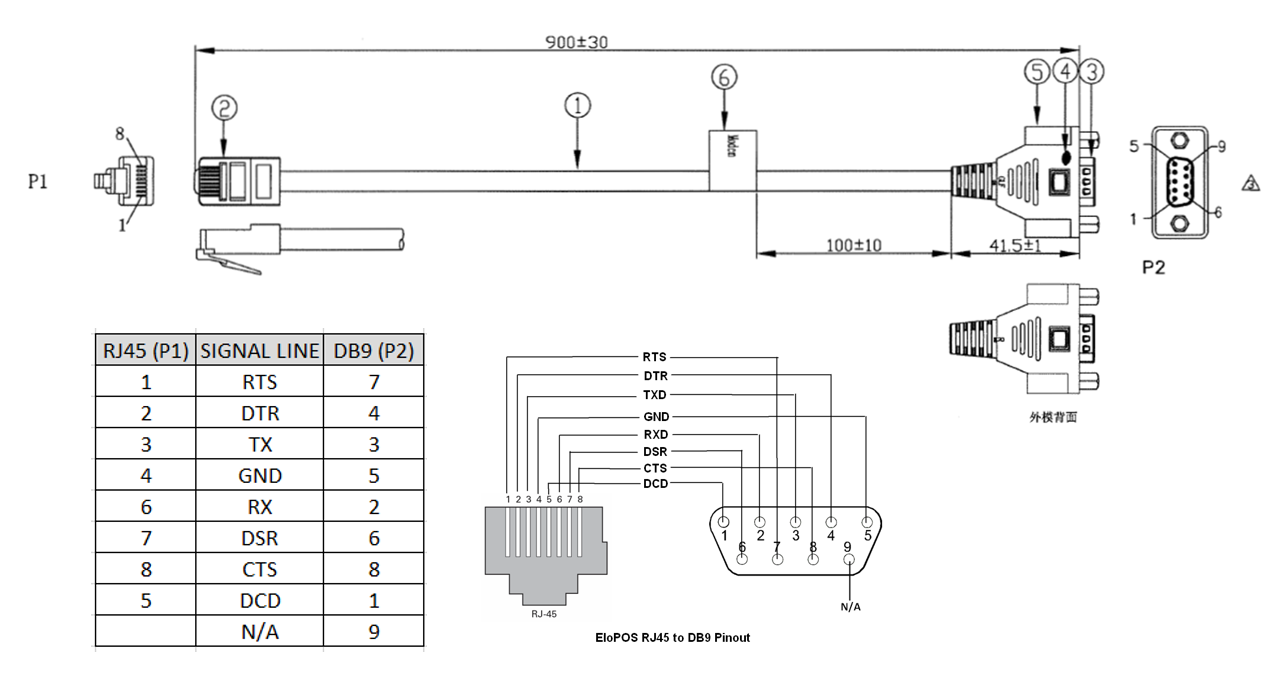

Pinout RJ45 a DB9 di EloPOS

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
