Dove posso trovare il pinout per E196292, cavo RS232 per serie X a DB9?

Questo articolo contiene il pinout per il cavo E196292, X-Series RS232 a DB9

Di seguito è riportato lo schema e i pinout per P/N: E196292, cavo X-Series RS232 a DB9.

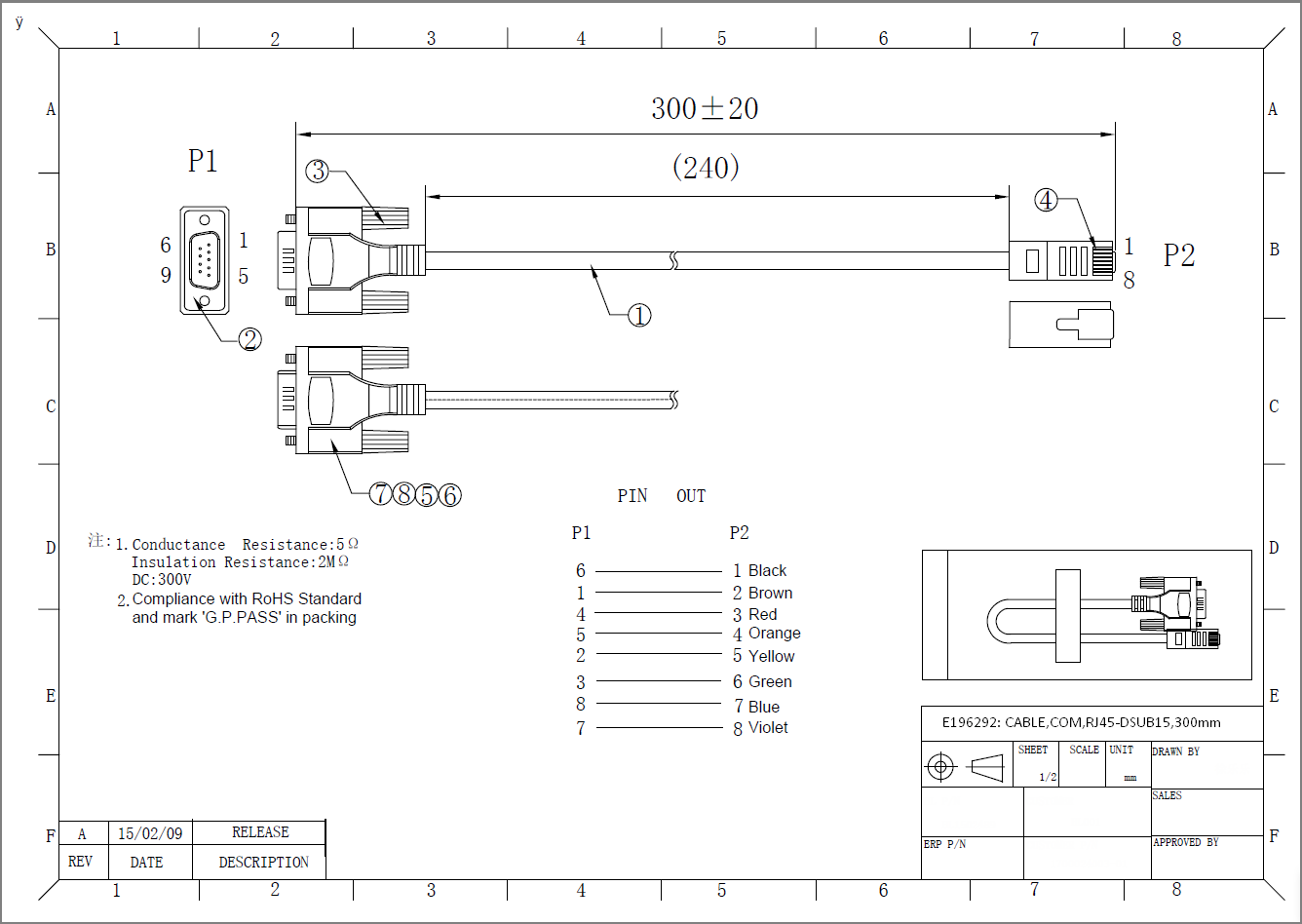

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

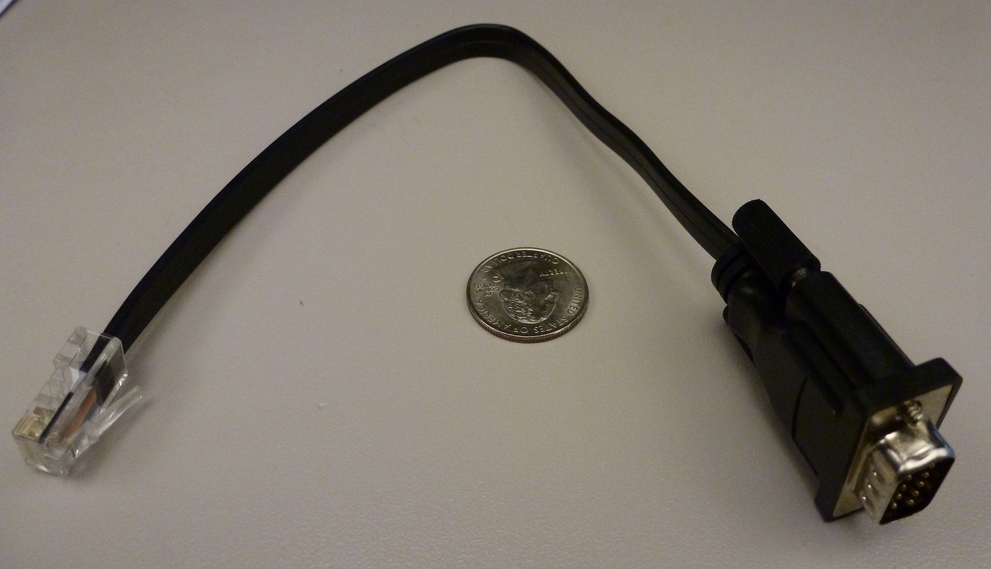

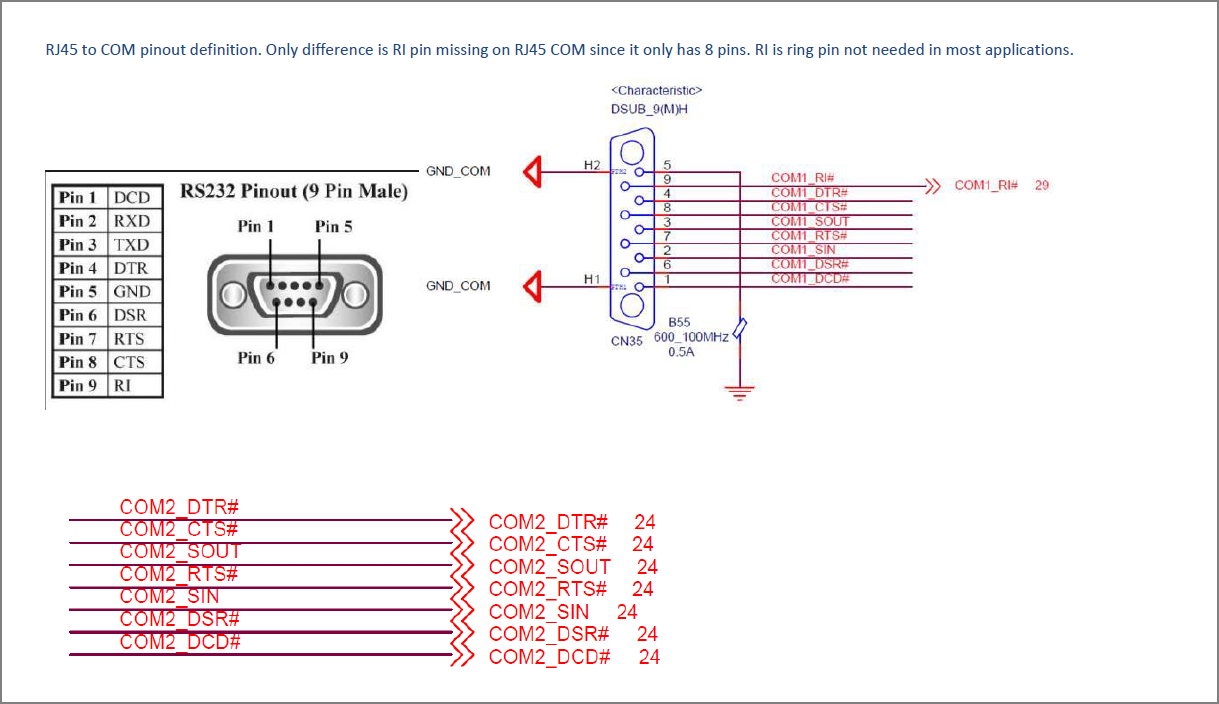

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
