Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

Dove posso trovare informazioni su E075614, cavo USB Y per 0700L (Obsoleto)?

Questo articolo fornisce ulteriori informazioni su Elo P/N: E075614, cavo Y USB per monitor 0700L

Di seguito sono riportate informazioni su Elo P/N: E075614, cavo Y USB di 8 piedi per monitor 0700L (ora obsoleto)

Numero di parte & Descrizione

  • E075614: CAB-USB-XT-8.2FT-R
  • CAB-KIT-2.5 Metro cavo Y per il 0700L
  • Nota: Il connettore finale che si inserisce nel 0700L è Mini-USB

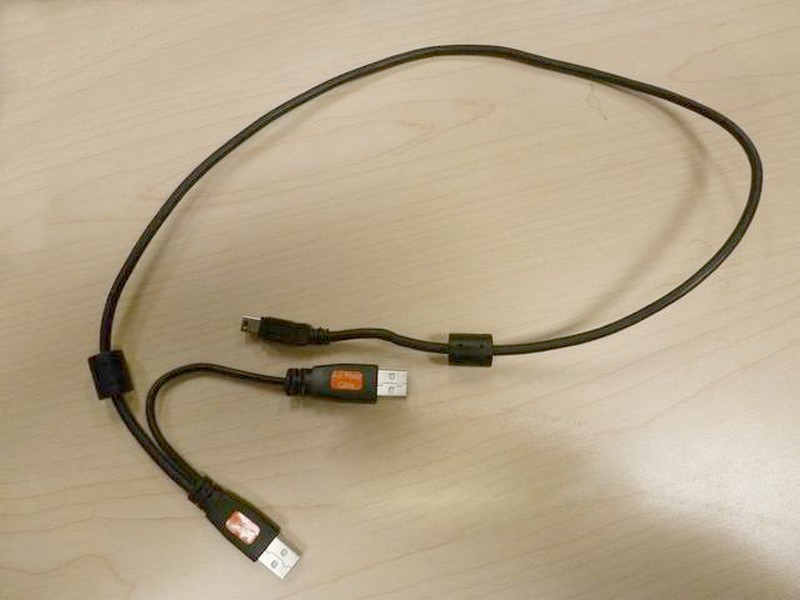

Foto

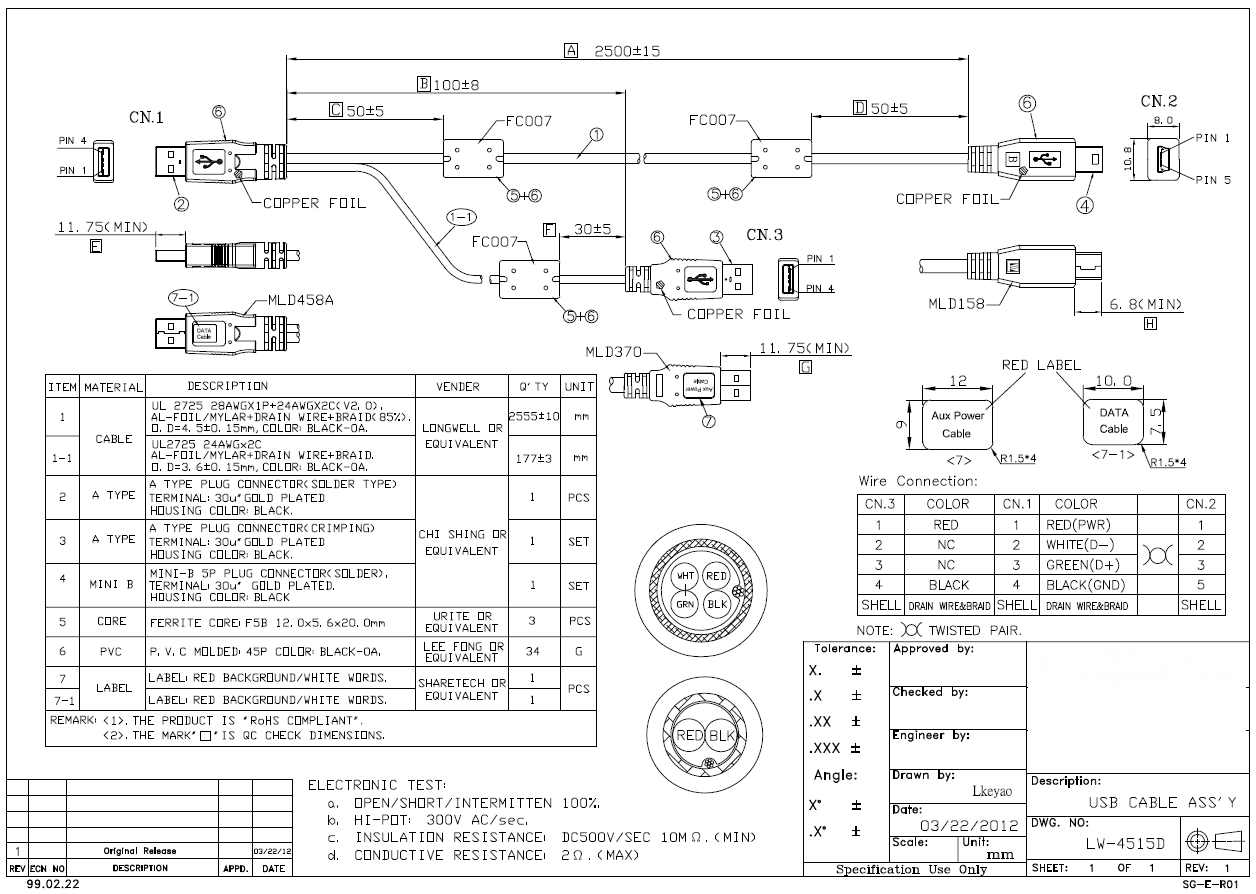

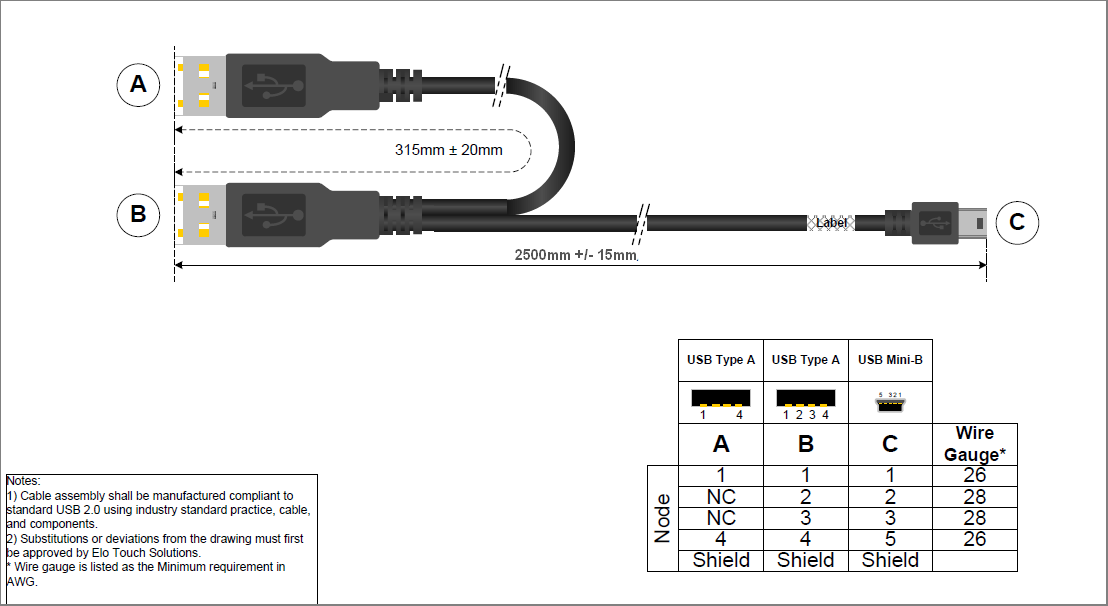

Disegno
