Dove posso trovare un disegno dimensionale per lo scanner di codici a barre 2D di 1ª generazione (E926356)?

Questo articolo fornisce un disegno dimensionale dello Scanner Barcode 2D, Numero di parte: E926356

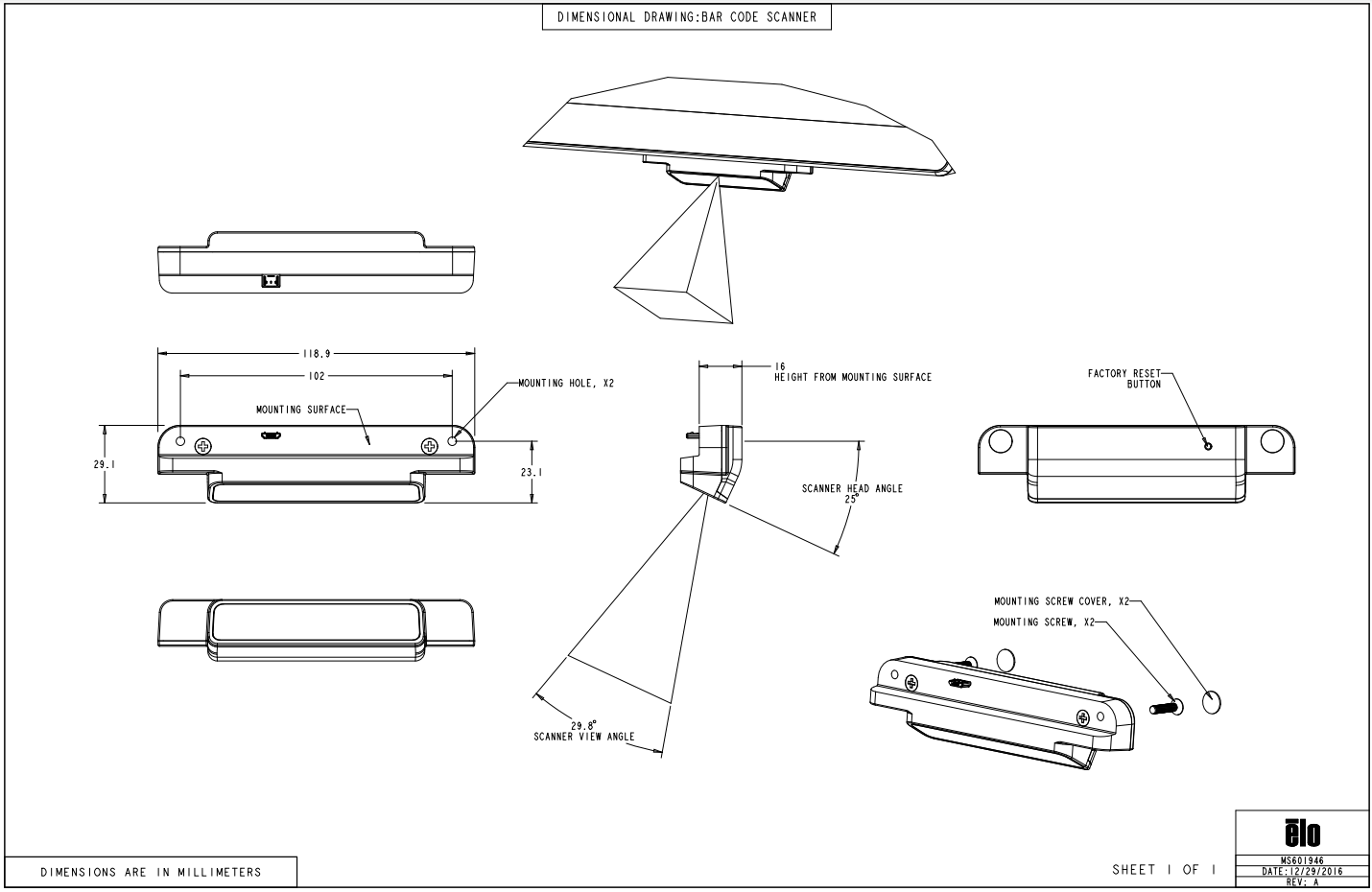

Vedi il disegno qui sotto dello Scanner Barcode 2D, Numero di parte: E926356

Il disegno qui sotto può anche essere scaricato QUI
