Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

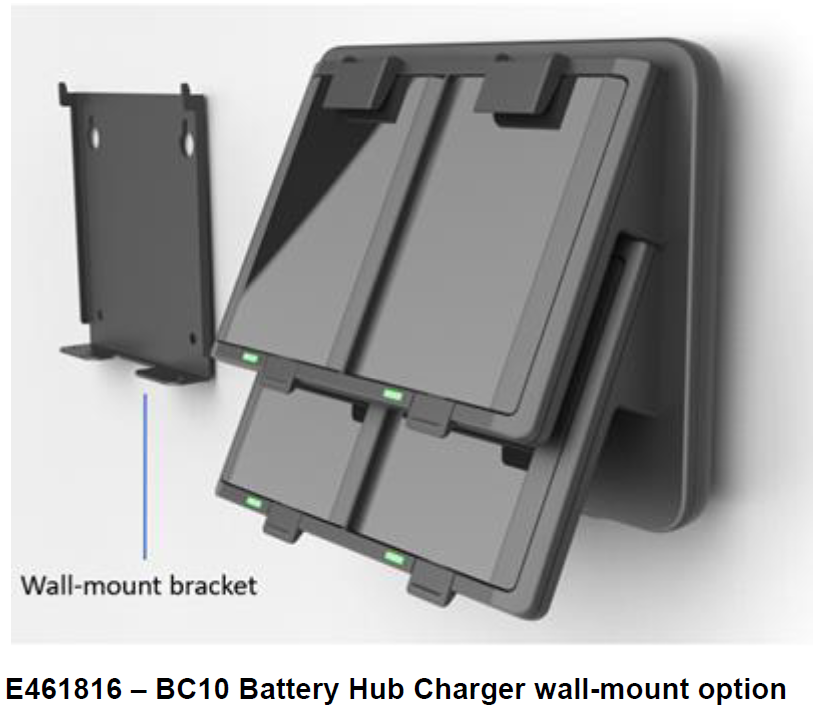

Come posso montare a parete il caricabatterie BC10 a 4 vani?

Questo articolo fornisce informazioni per il montaggio a muro del caricabatterie BC10 a 4 slot.

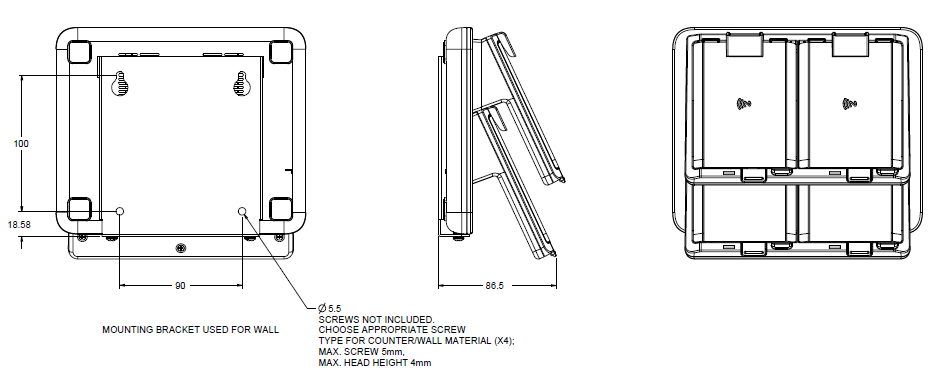

Utilizzare viti da 5,5 mm (non incluse) per fissare il pannello di montaggio a muro al muro, posizionare il caricabatterie sul montaggio a muro facendolo scivolare sui ganci e appoggiandolo sul fondo del supporto.
