Dove posso trovare informazioni su E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M?

Questo articolo fornisce informazioni su E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

Le informazioni di seguito sono per Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

Specifiche:

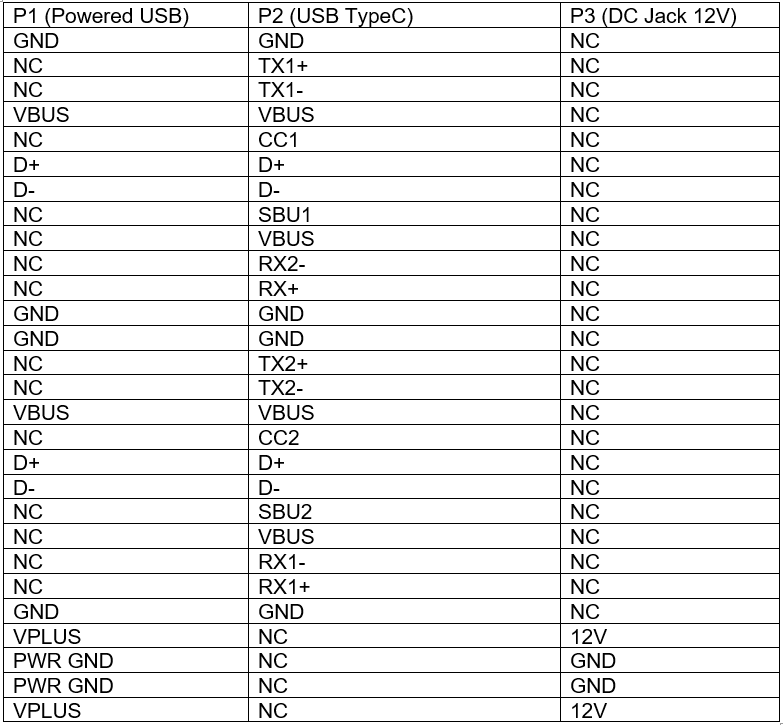

  • Il cavo Power-via-USB per cavo TypeC deve includere tre tipi di spinotti sul cavo.
    • Un lato (P1) deve essere un normale spinotto USB maschio alimentato
    • L'altro lato deve essere USB TypeC (P2) e jack DC 12V(P3)
    • Il cavo deve essere lungo 3,0 m, di colore nero

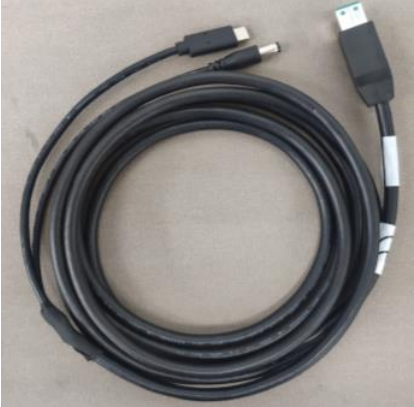

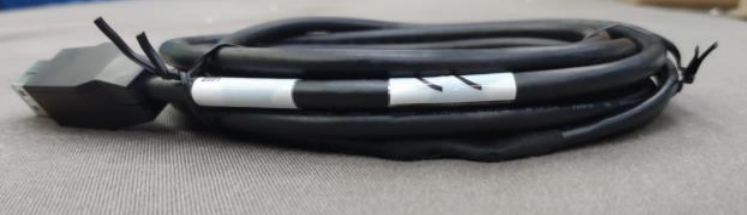

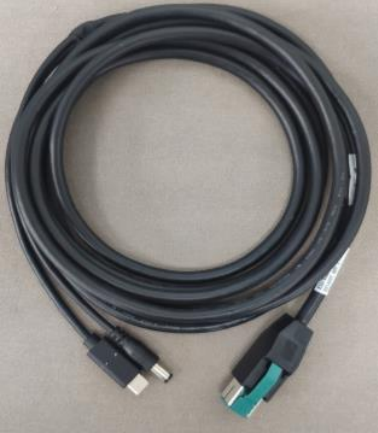

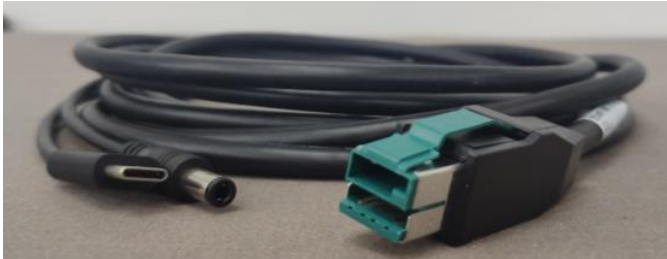

Foto
