Dove posso trovare informazioni sul kit di cornice per montaggio su rack Elo 2293L-2294L E462672?

Questo articolo fornisce informazioni sul Bezel di montaggio a rack E462672 Elo 2293L-2294L

Bezel di montaggio a rack E462672 Elo 2293L-2294L, adatto solo per le versioni intelliTouch, SecureTouch, AccuTouch dei prodotti. Questo supporto richiede 12U di spazio rack.

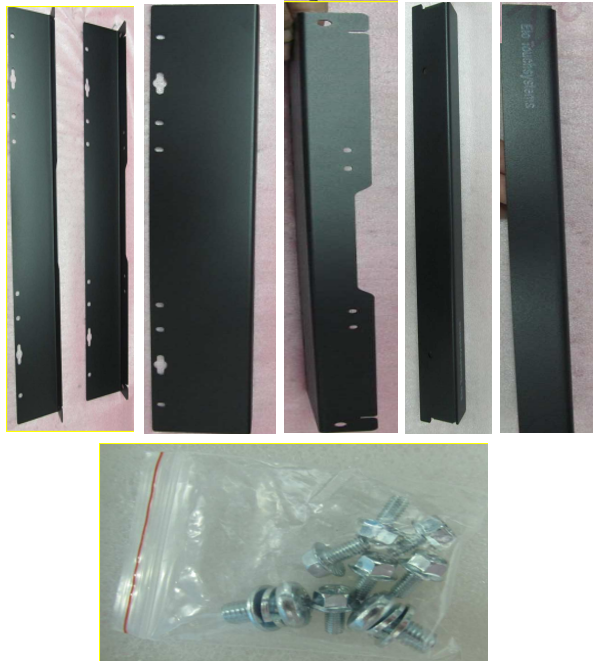

Contenuto del kit:

  • 1x SUPPORTO, MONTAGGIO BASSO RACK
  • 2x SUPPORTO, LATERALE, MONTAGGIO RACK
  • 4x VITE, PHIL, PNHD W/CAPT WHRS, M6X12L-R
  • 4x VITE, HXHD, PHIL, SEGHETTATA, M4X

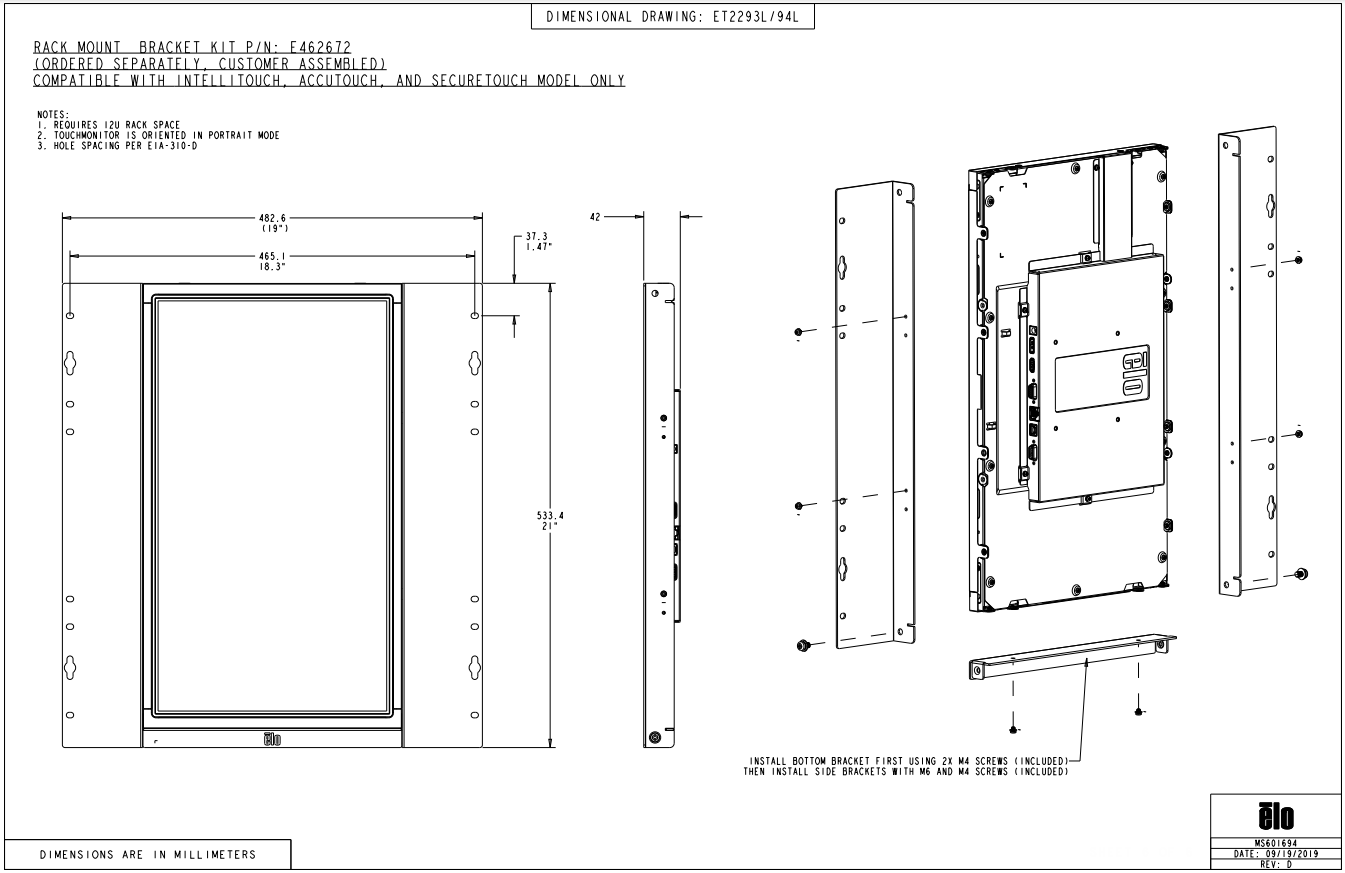

Disegno e Assemblaggio
