Dove posso trovare informazioni sugli E763022 e E752302, cavi USB Y alimentati a 12V?

Questo articolo fornisce informazioni sui cavi USB alimentati a 12V attualmente venduti per i monitor touch Elo 1002L e 1502L.

Numeri di parte e descrizioni:

  • E763022: Cavo, USB 12V Pwd, 3M, cavo Y USB alimentato a 12V 3m
  • E752302: Cavo, pUSB 12V 2.5mm 1.8m, cavo Y USB alimentato a 12V Elo 1.8m

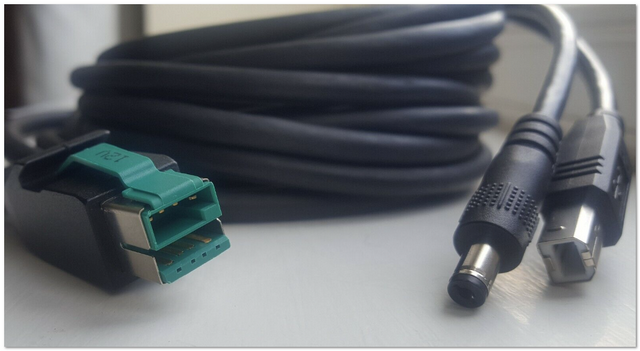

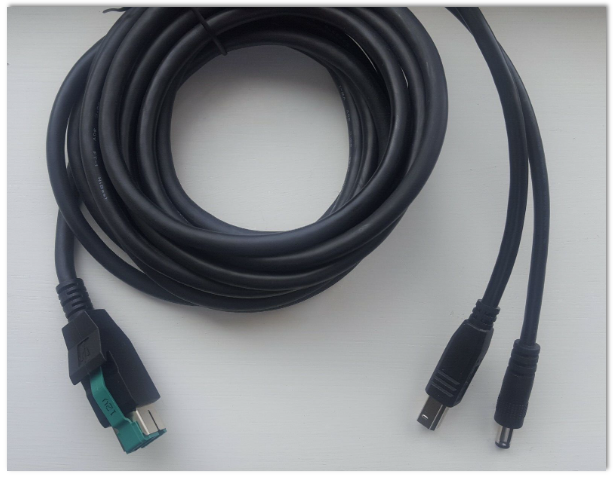

Foto (cavo da 3m mostrato. Il cavo da 1.8m è identico a parte la lunghezza del cavo).

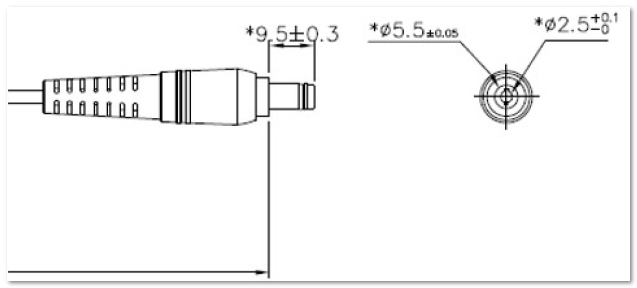

Pinout del connettore a barile 5.5mm x 2.5mm per uscita DC 12V
