Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

Dove posso trovare informazioni su E641484: Kit, cavo RJ45 a DB9, EloPOS?

Questo articolo elenca le informazioni per l'E641484: Kit, cavi RJ45 a DB9 inclusi nei sistemi EloPOS

Descrizione

  • Longhezza: 900 mm
  • RJ45 maschio verticale a DB9 maschio verticale (Tipo di cavo diretto)

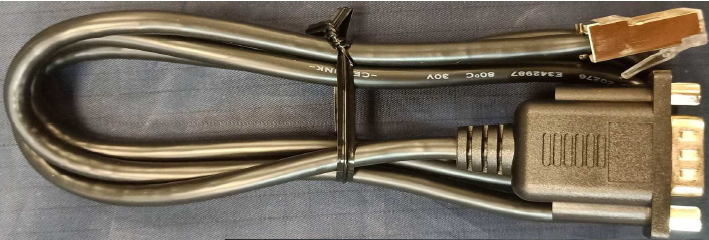

Foto

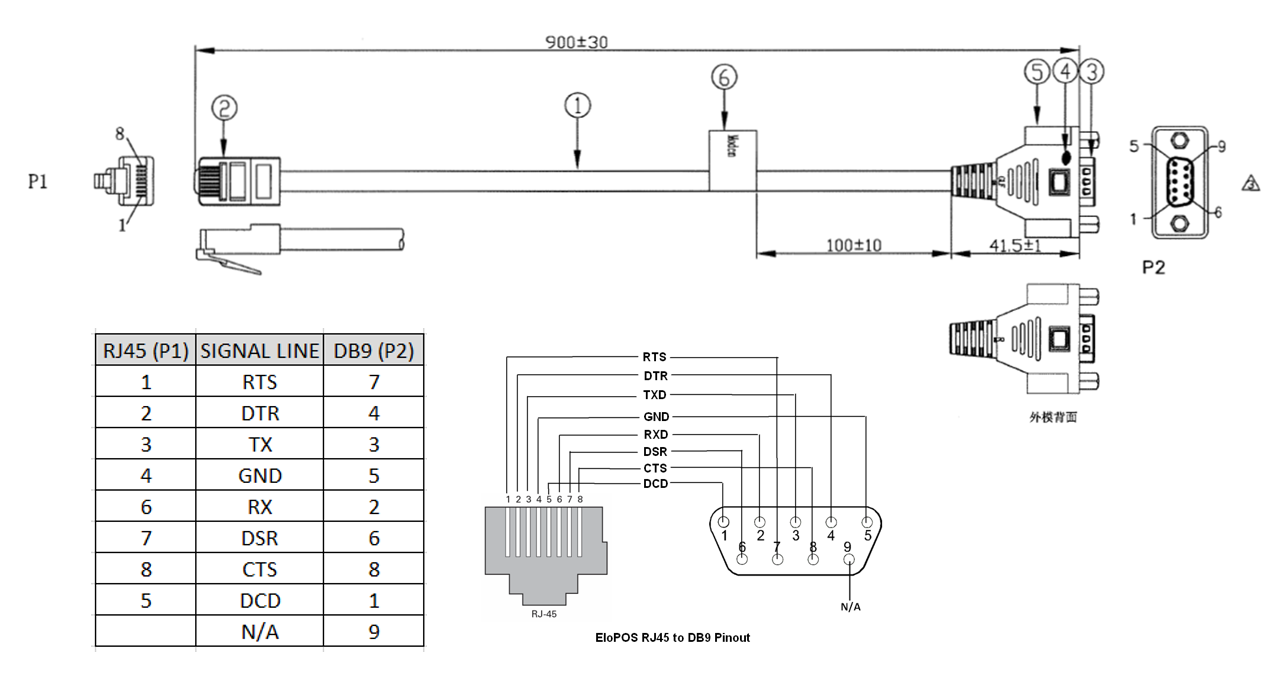

Disegno e Pinout
