Eloサポートへようこそ

ドライバー、製品情報、技術的な回答など。

EloPOSパックの寸法図はどこにありますか？

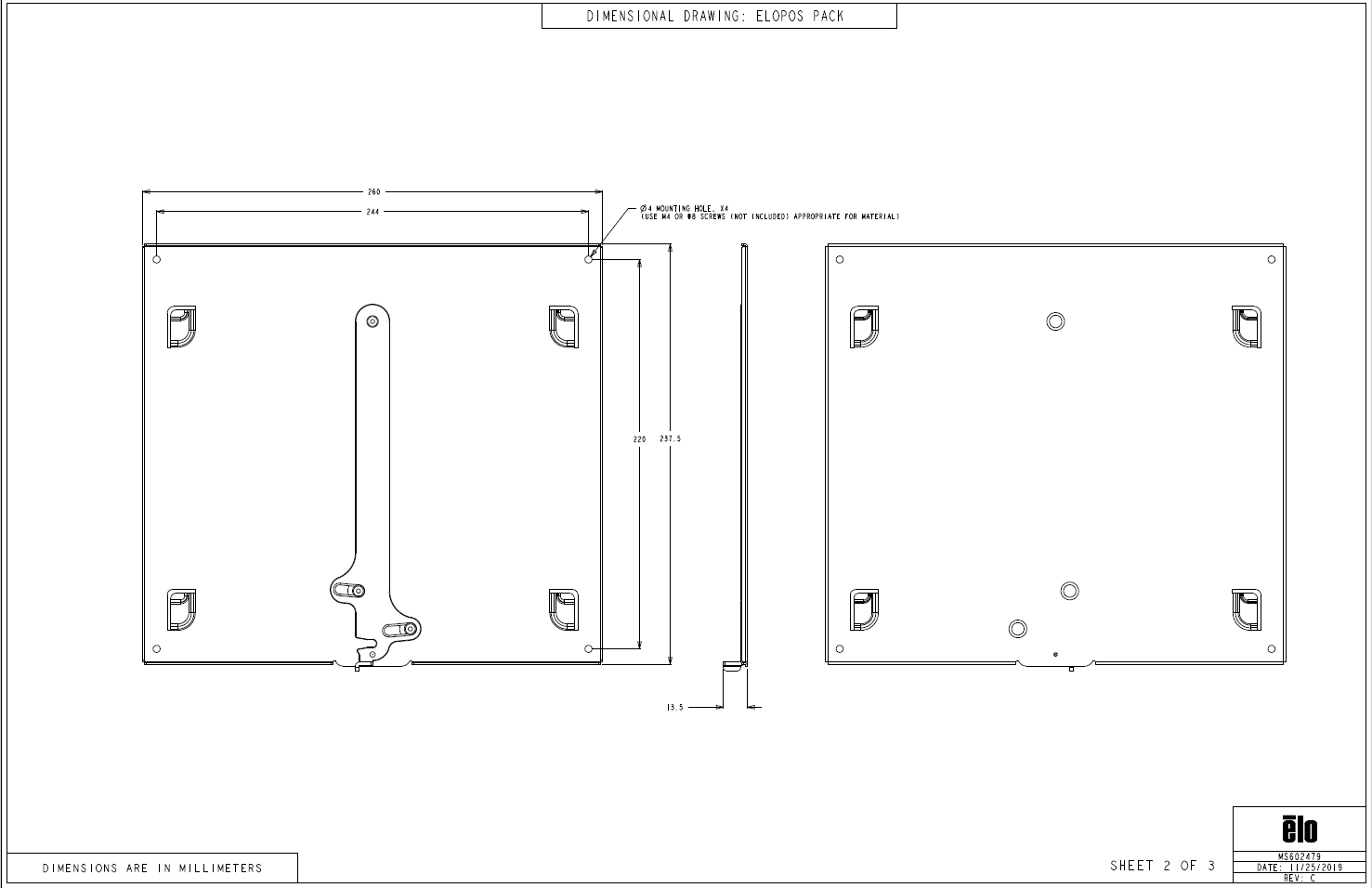

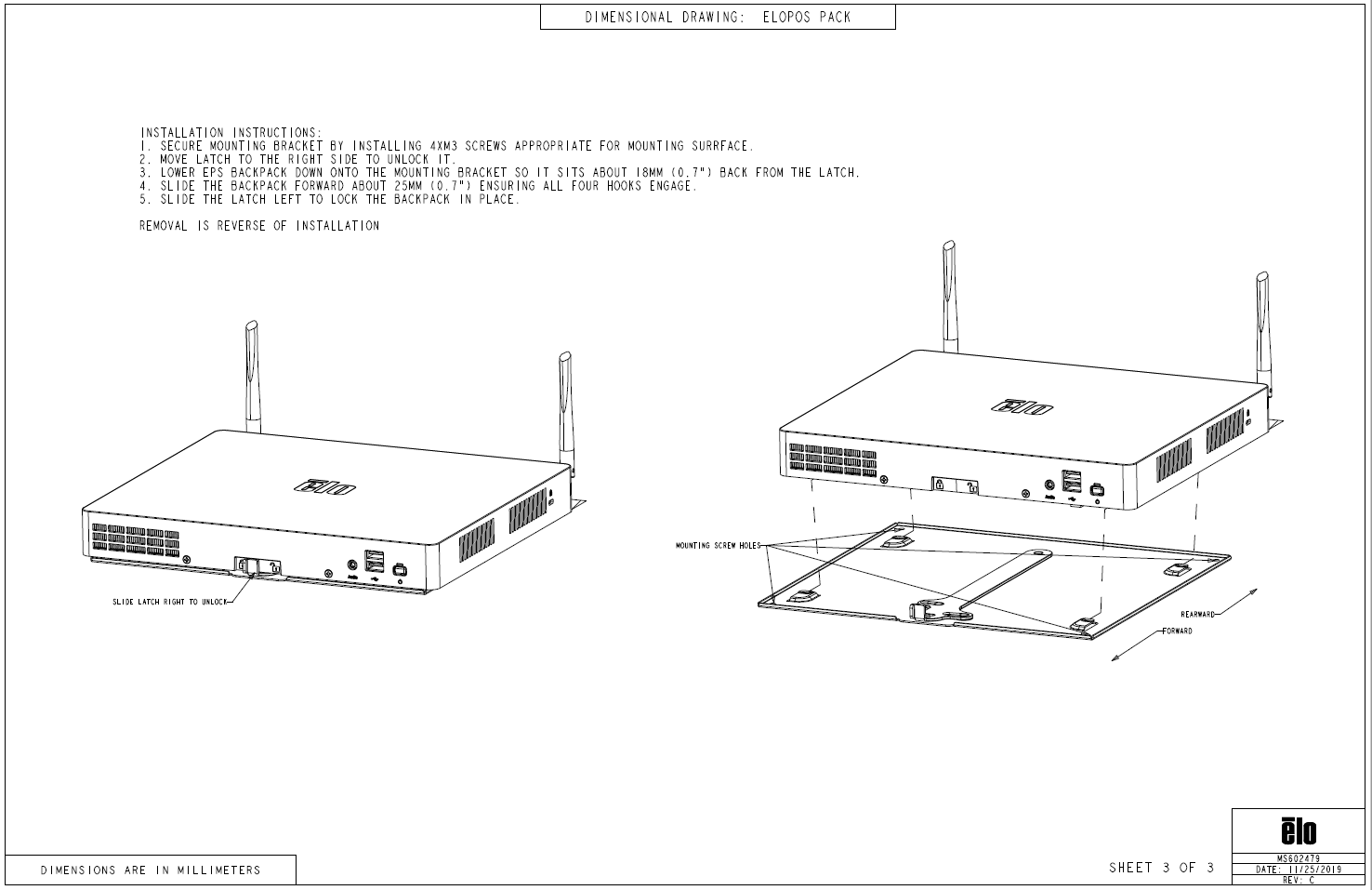

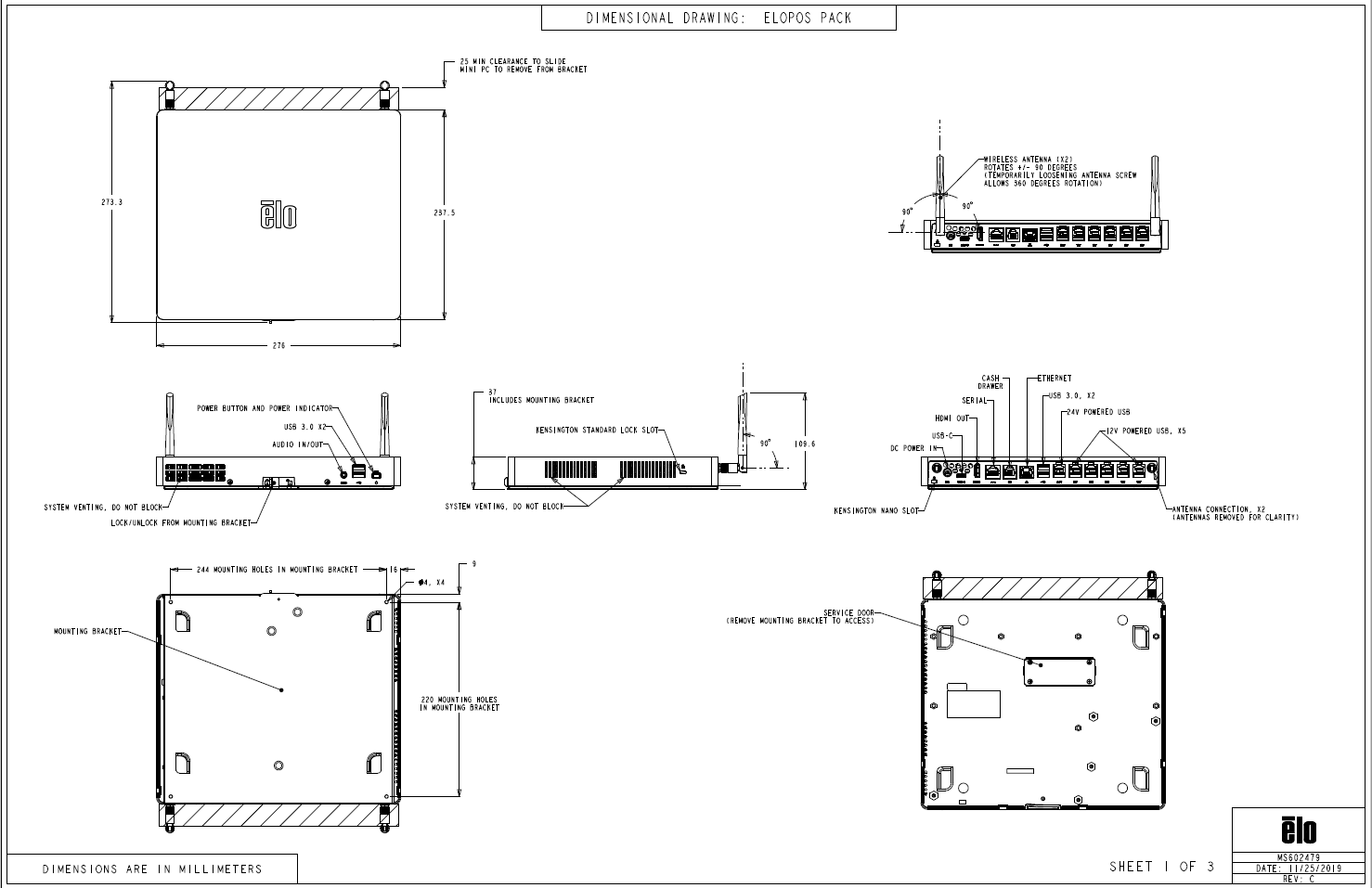

この記事では、EloPOS Packの寸法図を以下に提供します

.pdfバージョンはこちらからダウンロードできます。



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
