第1世代2Dバーコードスキャナー（E926356）の寸法図はどこで見つけられますか？

この記事では、2Dバーコードスキャナーの寸法図を提供します。部品番号: E926356

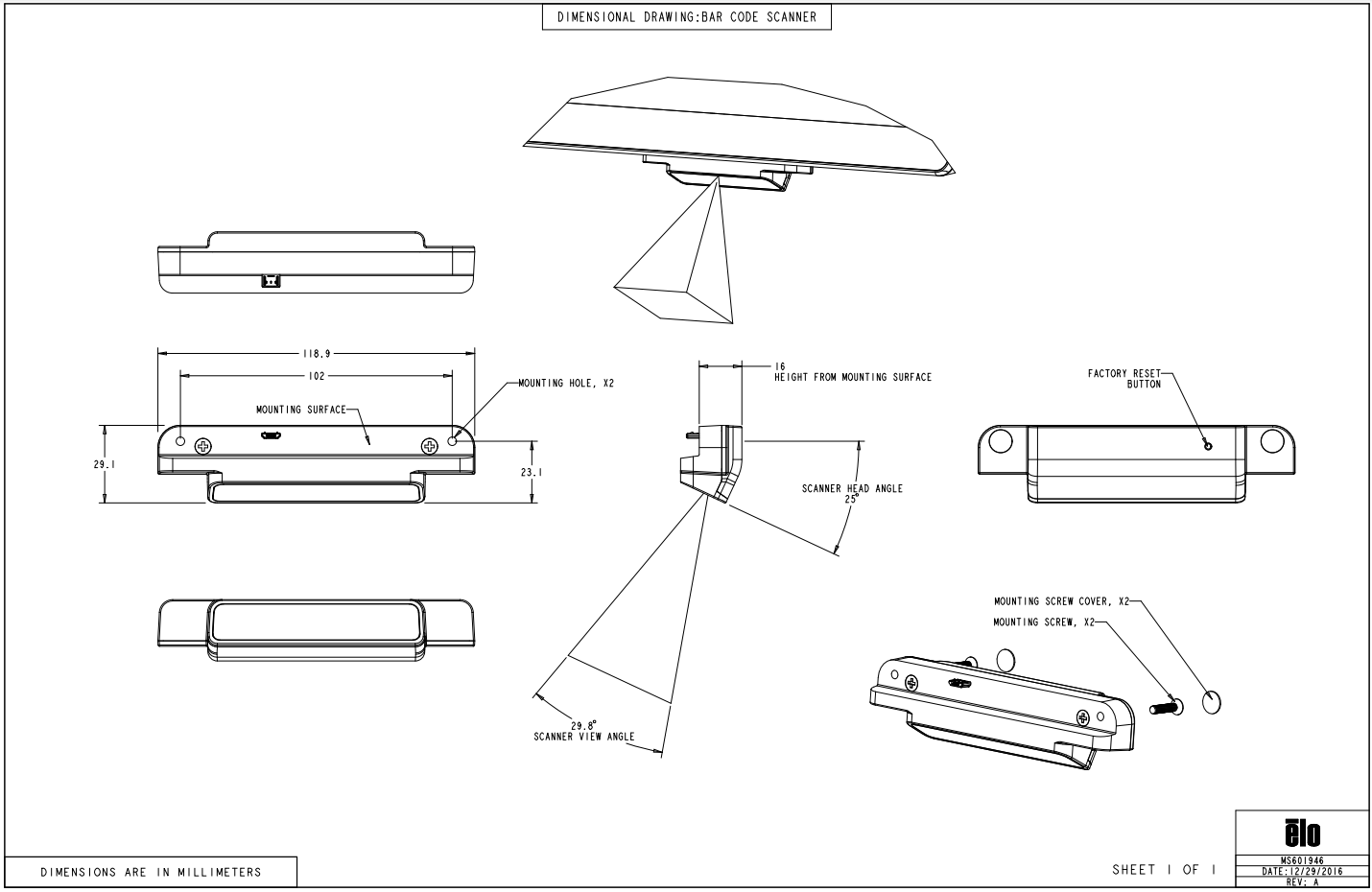

下に2Dバーコードスキャナーの図を示します。部品番号: E926356

下の図は、こちらからもダウンロードできます。
