E000878、2440L IntelliTouchオープンフレームモニター用サイドマウントブラケットキットに含まれるものは何ですか？

この記事では、E000878、2440L IntelliTouchオープンフレームモニター用サイドマウントブラケットキットに含まれる部品を一覧にします

以下の情報はElo P/N: E000878: ELO-24INCHWIDE-L-BKT-R、2440L IT/非タッチサイドマウントブラケットキットに適用されます。

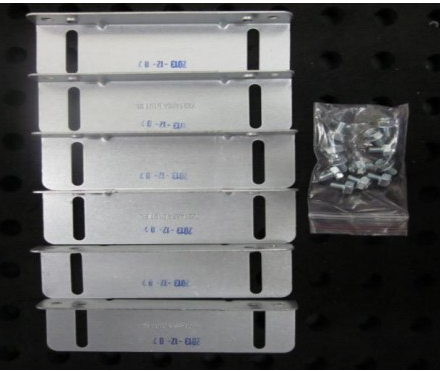

キットには次が含まれます:

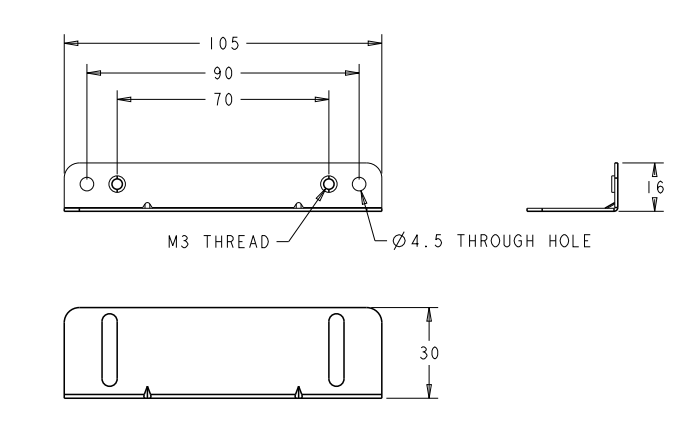

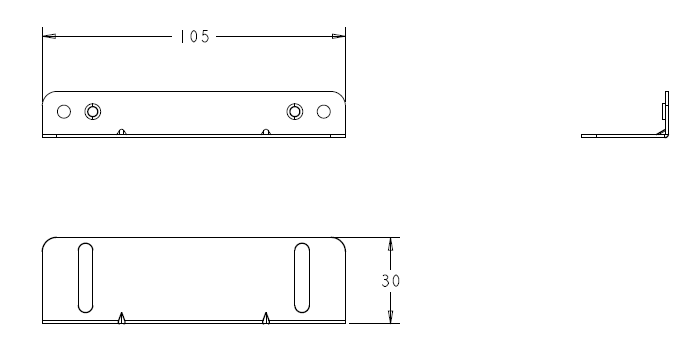

  • ブラケット6個 - 材質: 規格鋼、厚さ1.0mm

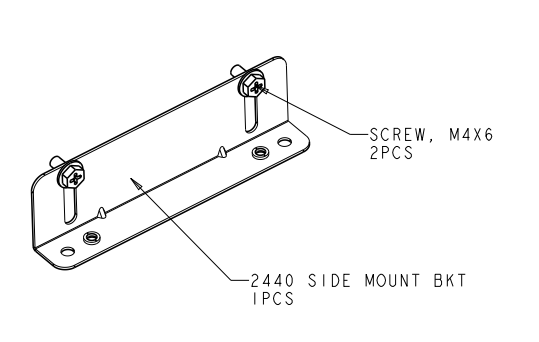

  • m4 x 6 ロッキングスクリュー12個
