Eloサポートへようこそ

ドライバー、製品情報、技術的な回答など。

2521コントロールボードの寸法は何ですか？

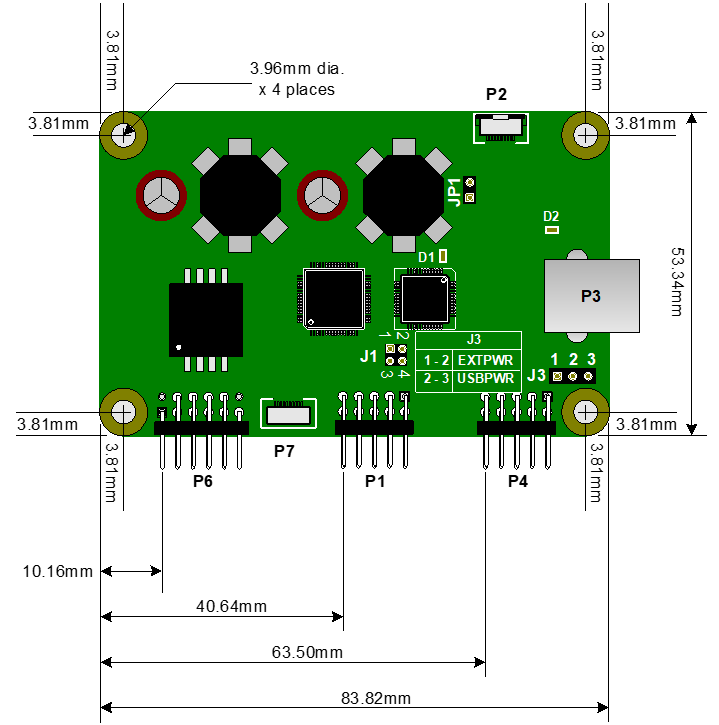

この記事では、2521コントローラーボードの寸法図を一覧表示します




Y次元:


Z次元:

  • PCB上面からの最大高さ: 9.5mm
  • PCB下面からの部品の最大高さ: 2.54mm
  • 全体のボードの最大高さ: 13.8mm (一般的には13.1mm)
2521コントローラーボードに関する追加情報および文書は、このナレッジ記事でご覧ください。
