1099L屋外オープンフレームモニターの寸法図はどこで見つけられますか？

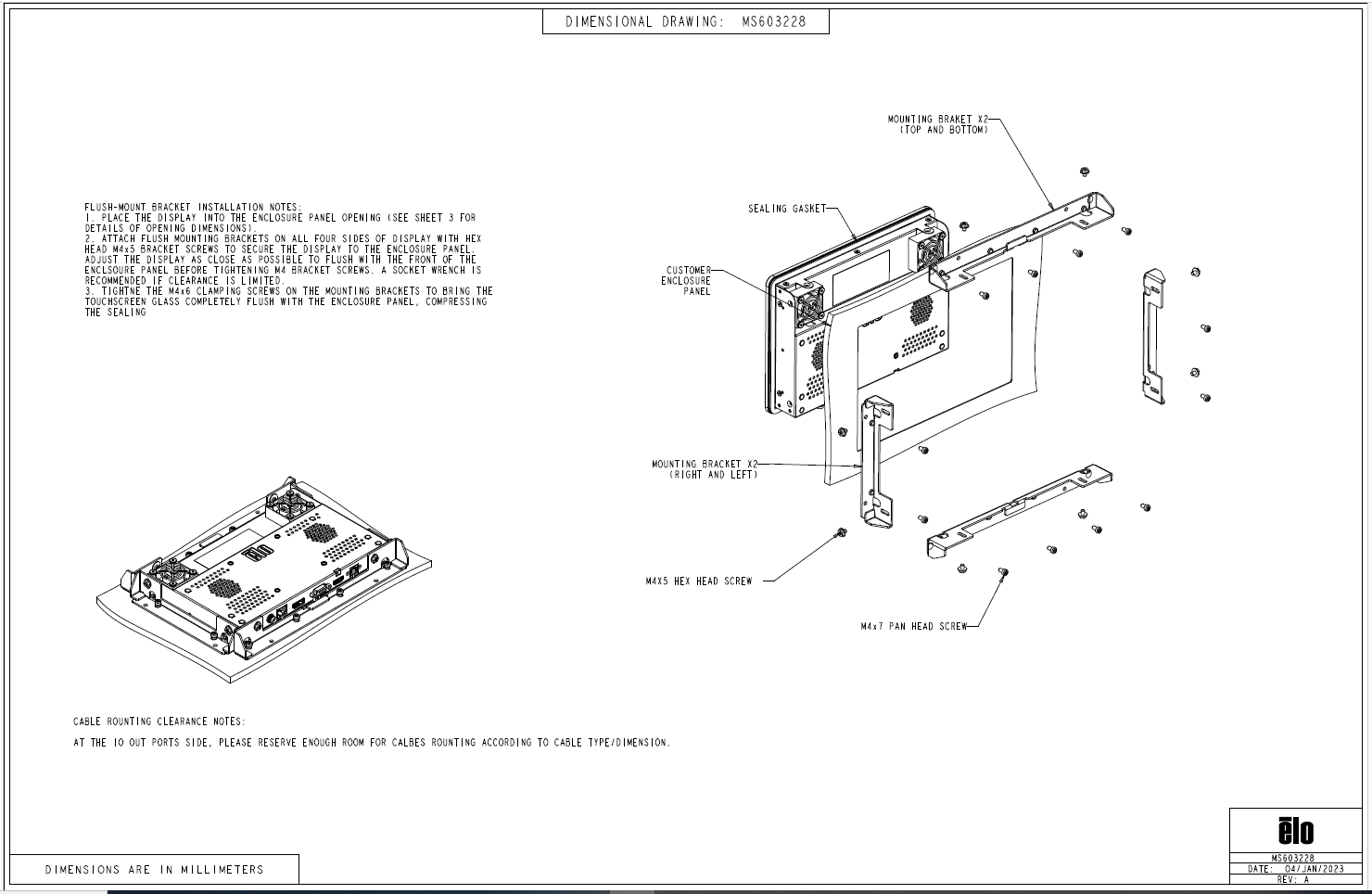

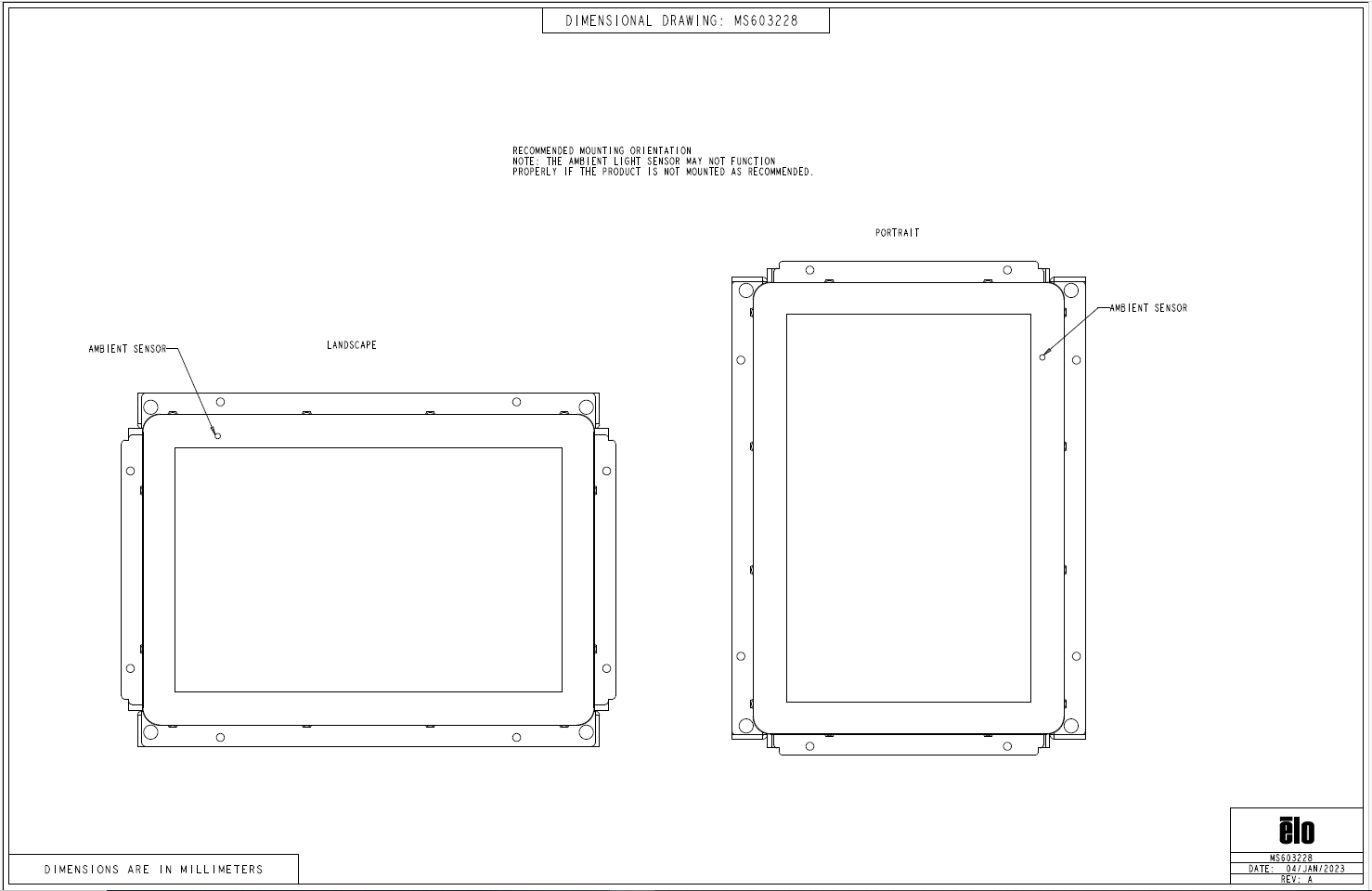

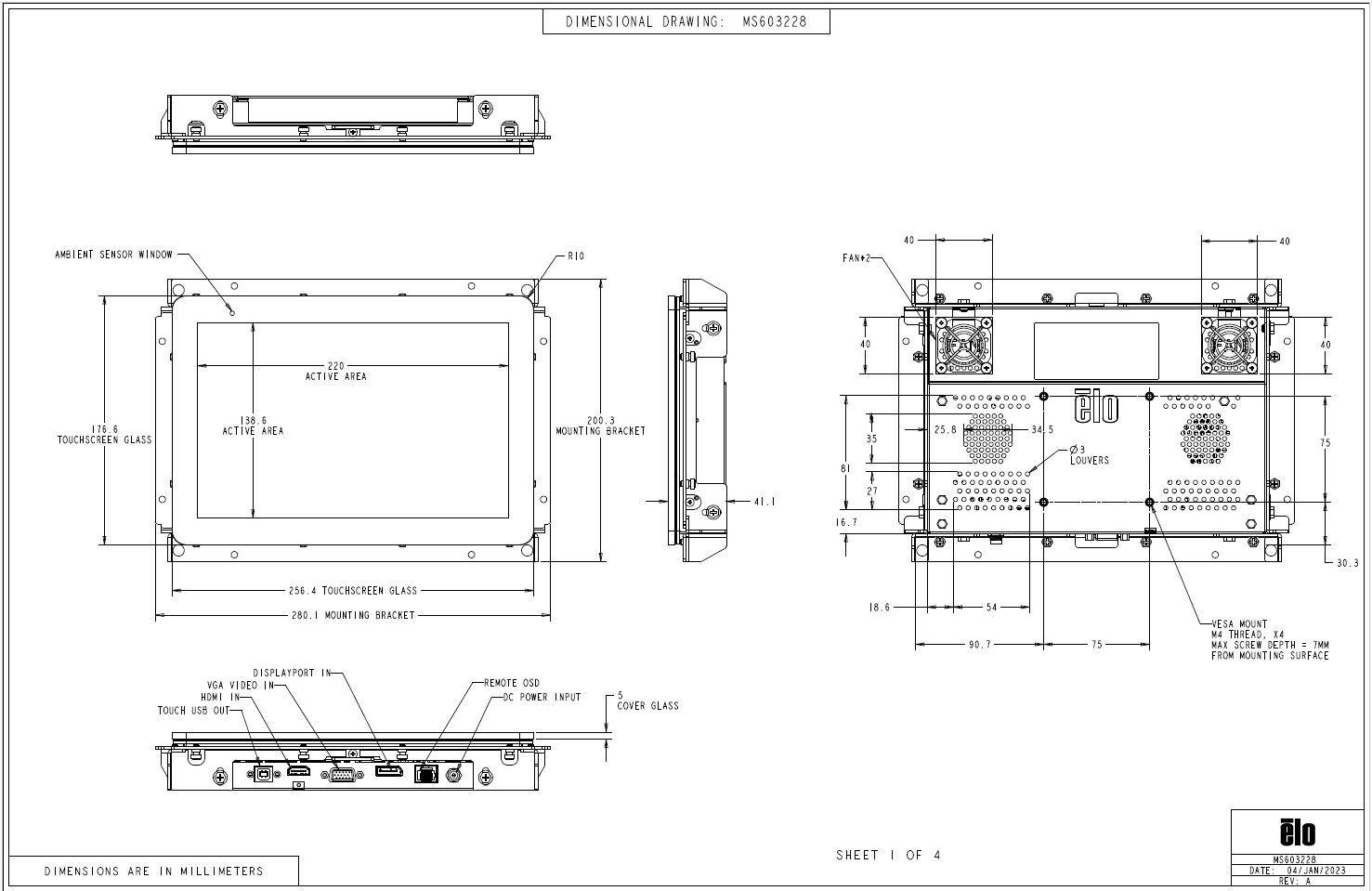

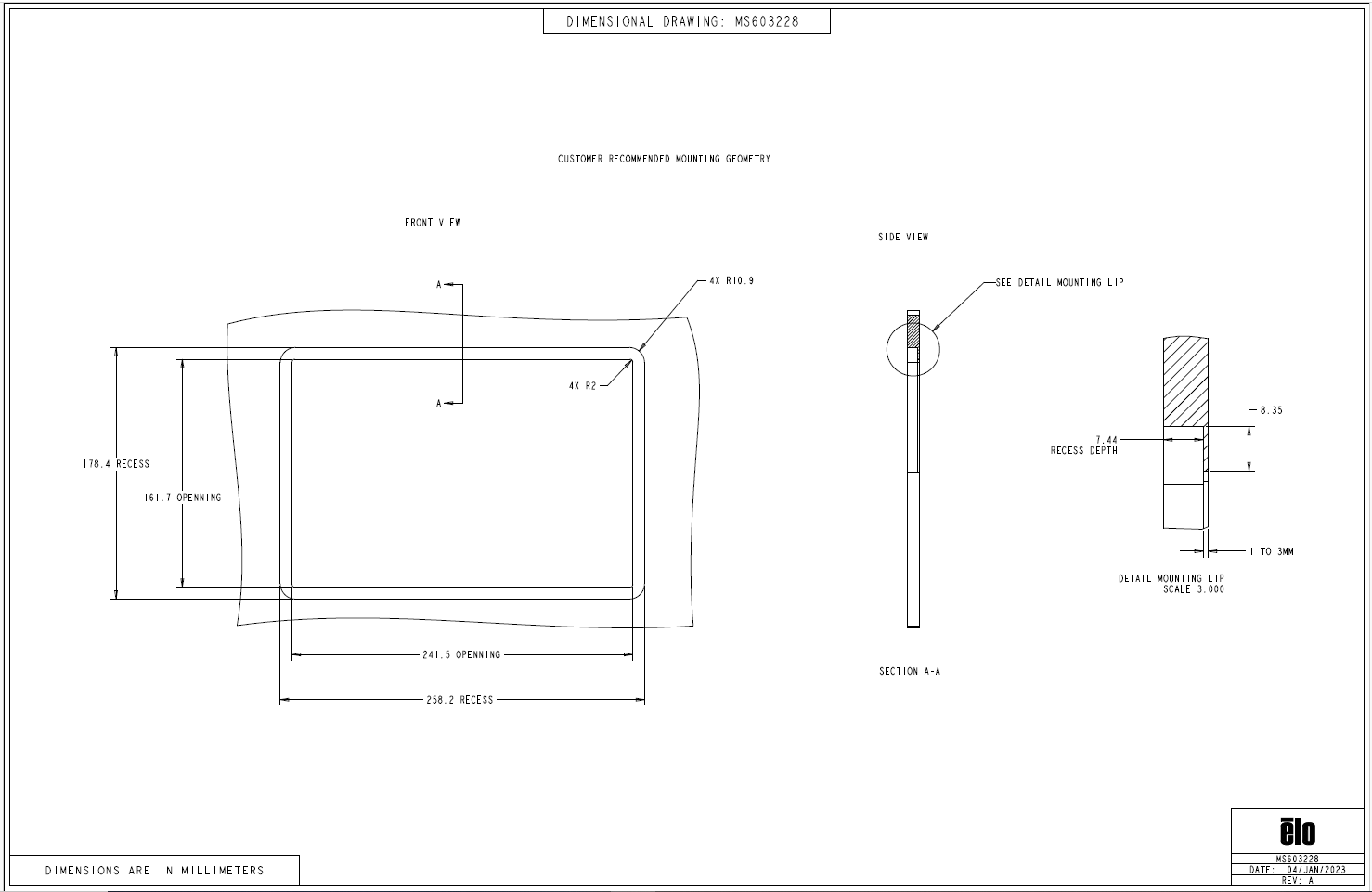

この記事では、ET1099L屋外オープンフレームタッチモニターの寸法図を提供します

この記事に添付されている図もご覧ください。
