Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

2701 RSU IntelliTouch 컨트롤러의 핀배치 및 치수는 어디에서 찾을 수 있습니까?

이 문서에서는 2701 RSU IntelliTouch 컨트롤러의 핀 배치 및 치수를 제공합니다

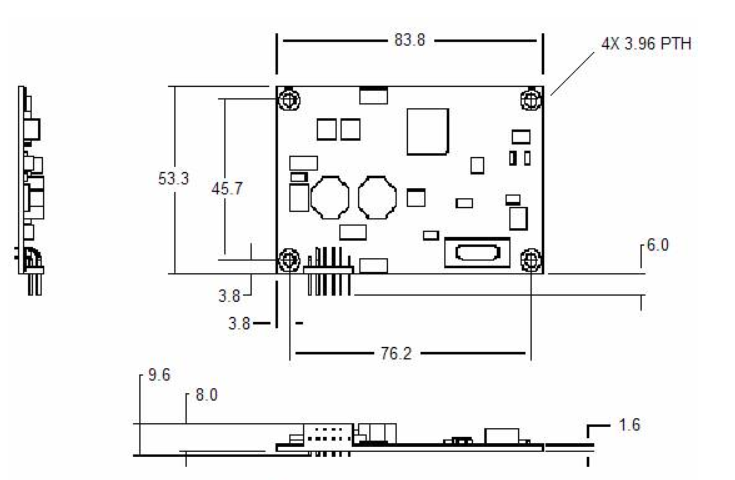

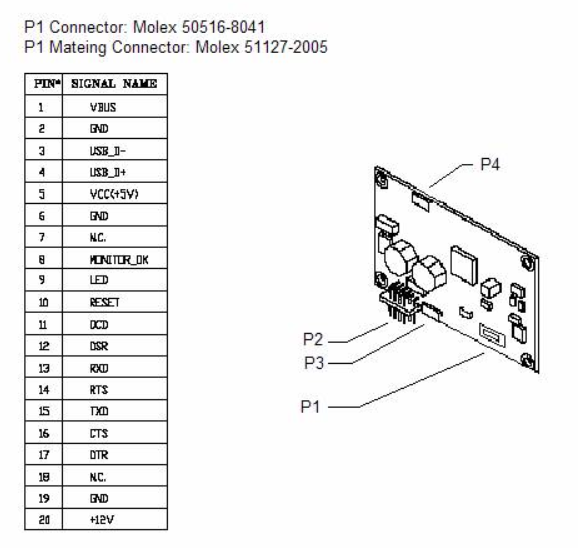

2701 RSU IntelliTouch 컨트롤러의 핀 배치 및 치수는 아래를 참조하십시오.
