2521 컨트롤러 보드의 크기는 얼마입니까?

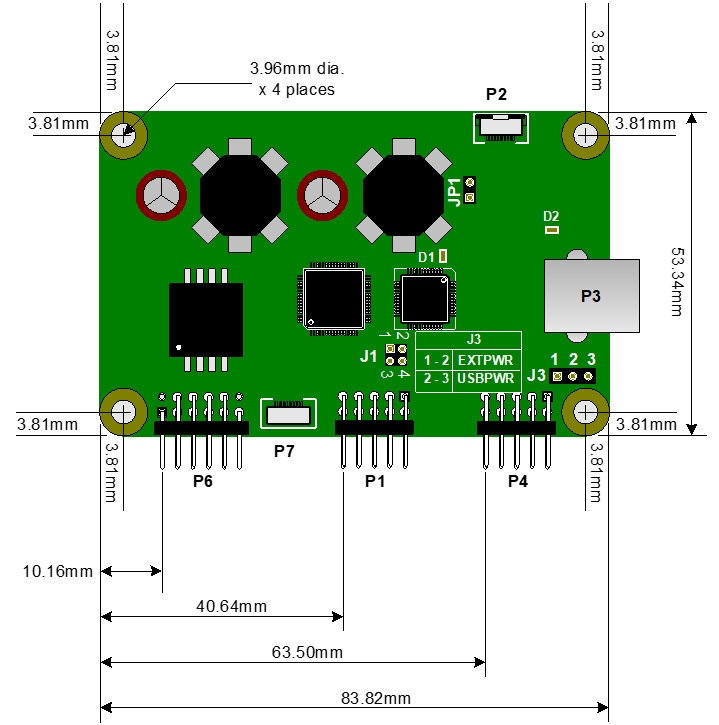

이 문서에서는 2521 컨트롤러 보드의 치수 도면을 나열합니다




Y-치수:


Z 치수:

  • PCB 상단에서 최대 높이: 9.5mm
  • PCB 하단에서 부품의 최대 높이: 2.54mm
  • 전체 보드의 최대 높이: 13.8mm (전형적인 13.1mm)
2521 컨트롤러 보드에 대한 추가 정보 및 문서는 이 지식 기사에서 확인하십시오.
