IntelliTouch 2500S SmartSet 직렬 컨트롤러 점퍼 및 핀 배열은 어디에서 찾을 수 있나요?

이 문서에서는 IntelliTouch 2500S SmartSet 직렬 컨트롤러 점퍼 및 핀 배치를 제공합니다

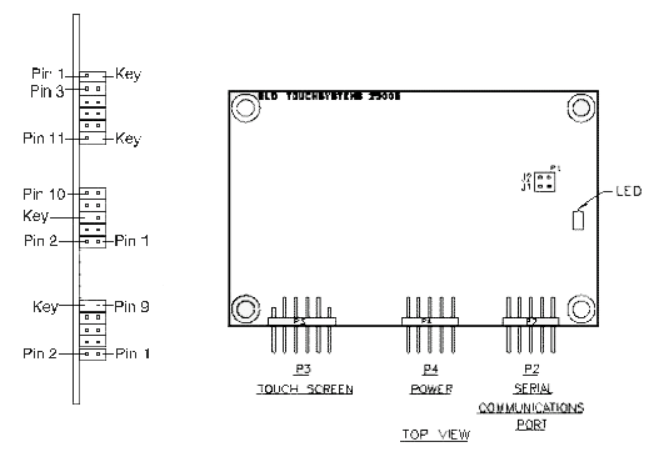

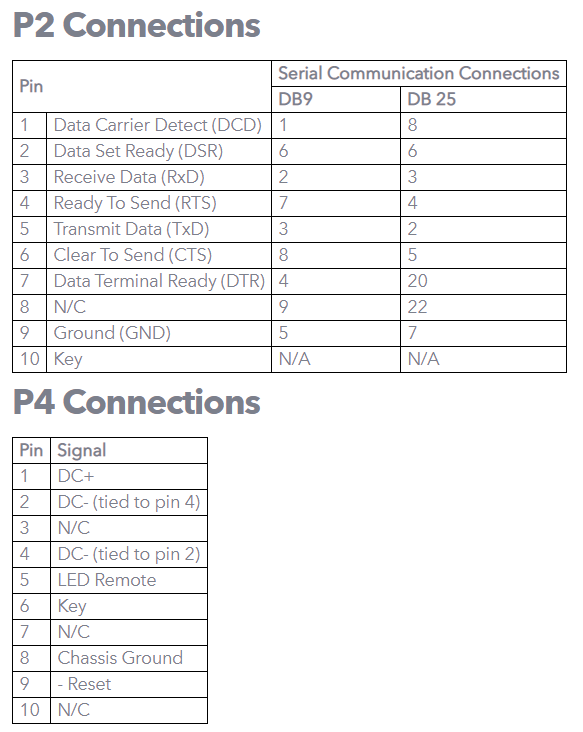

IntelliTouch 2500S SmartSet 직렬 컨트롤러 점퍼 및 핀 배치를 아래에서 확인하십시오.
