Elo 1502L 모니터의 VESA 마운트란 무엇인가요?

이 문서에서는 Elo 1502L 모니터의 장착 종류에 대해 설명합니다.

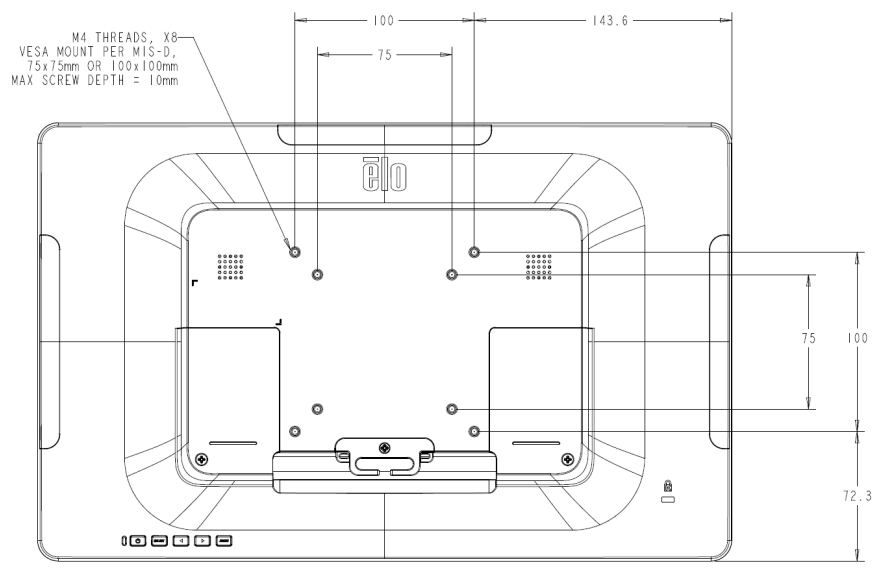

Elo ET1502L의 후면 VESA 마운트:

M4 나사를 위한 75x75mm 및 100x100mm의 4홀 장착 패턴이 모니터 후면에 제공됩니다. 이 장착 인터페이스에 접근하려면 Phillips 드라이버를 사용하여 스탠드를 제거하세요. VESA FDMI 준수 장착 코드는 다음과 같습니다: VESA MIS-D, 75, C 및 VESA MIS-D, 100, C.
