Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

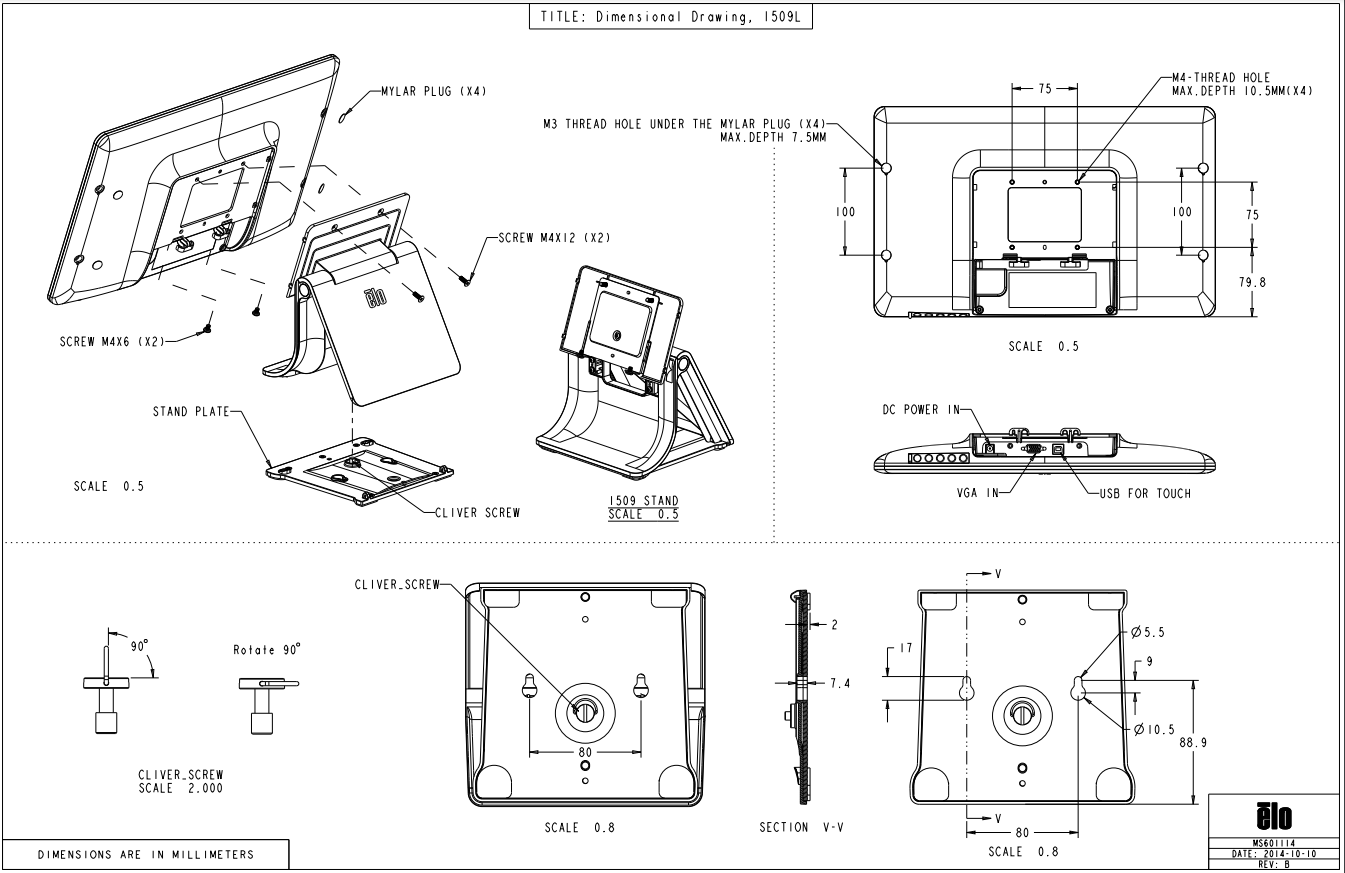

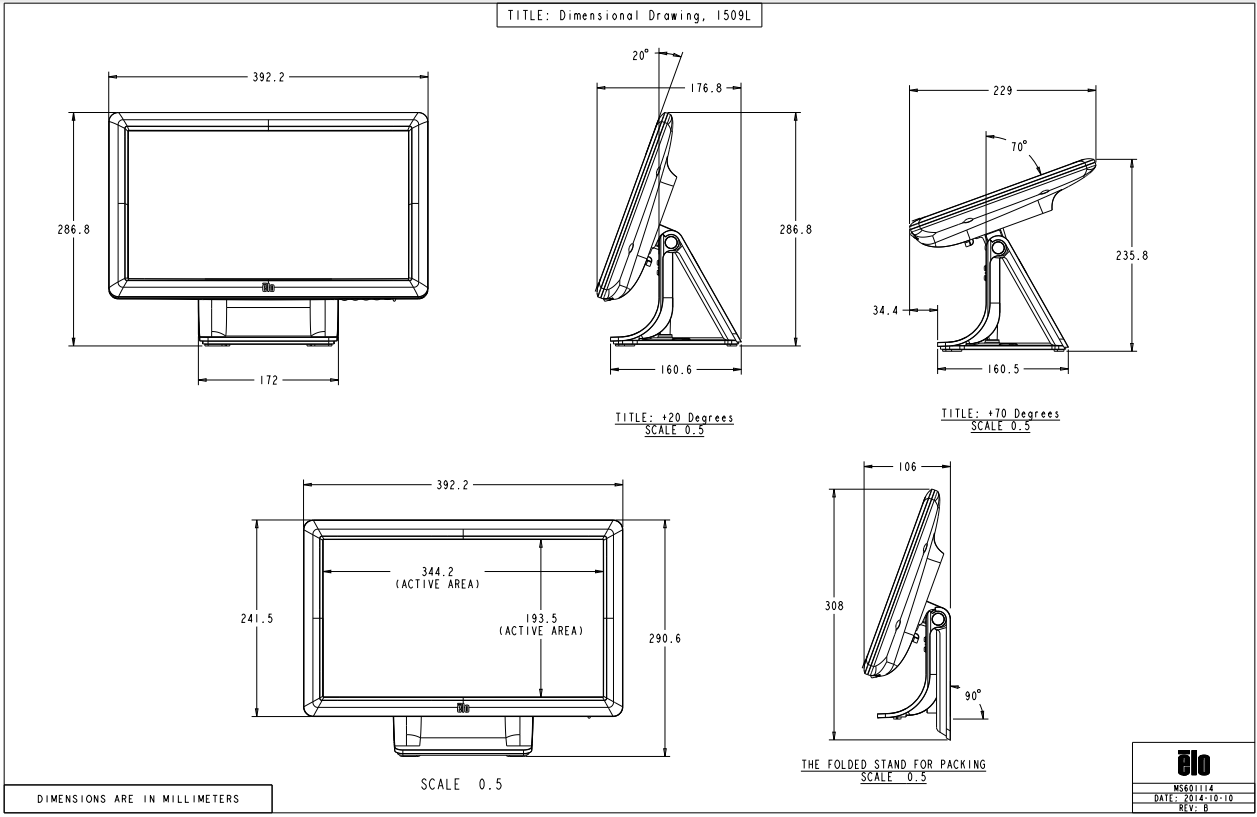

E534869: ET1509L-8UWA-0-G (단종)의 도면은 어디에서 찾을 수 있나요?

이 문서에서는 E534869: ET1509L-8UWA-0-G의 도면을 제공합니다 (제품 단종 2023년 3월 28일).
