Elo 0702L 모니터의 VESA 장착 부위란 무엇인가요?

이 문서는 0702L 모니터의 장착 유형을 설명합니다

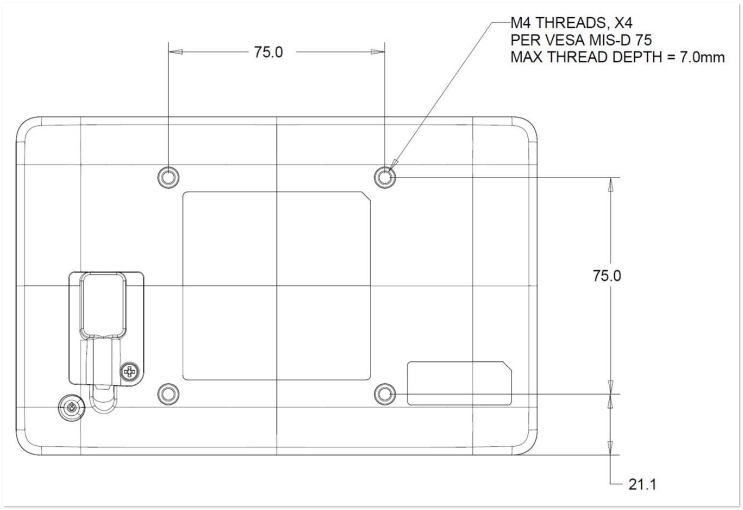

엘로 0702L 모니터의 후면 VESA 마운트:

M4 나사를 위한 75 x 75 mm 네 개 구멍이 있는 장착 인터페이스가 모니터의 후면에 제공됩니다. VESA FDMI 준수 장착은 VESA MIS-D, 75, C로 코드화되어 있습니다.
