EloPOS 유닛을 위한 RJ45에서 DB9로의 케이블 핀 배치는 어디에서 찾을 수 있나요?

이 문서에서는 EloPOS 장치 상자에 들어 있는 RJ45에서 DB9 케이블의 핀 배치에 대해 설명합니다.

부품 설명: 5K.47T20.501: CABLE RJ45-RS232 900MM EA15PA0-1

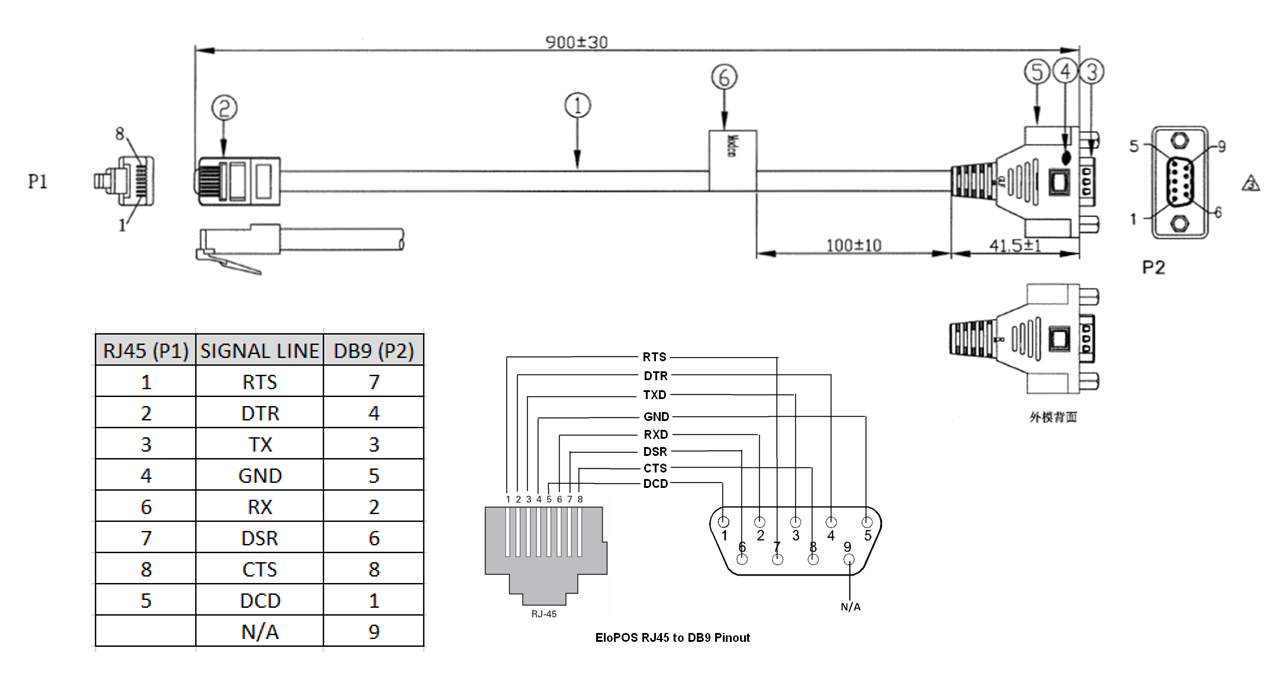

EloPOS RJ45에서 DB9까지의 핀 배치

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
