Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

E143088 벽걸이 키트의 치수 도면을 어디에서 찾을 수 있나요?

이 문서에서는 E143088 벽 장착 키트의 치수 도면을 제공합니다

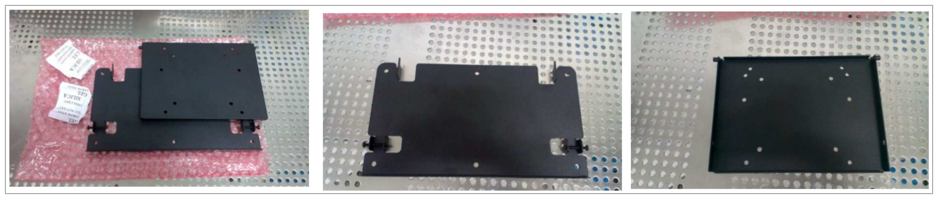

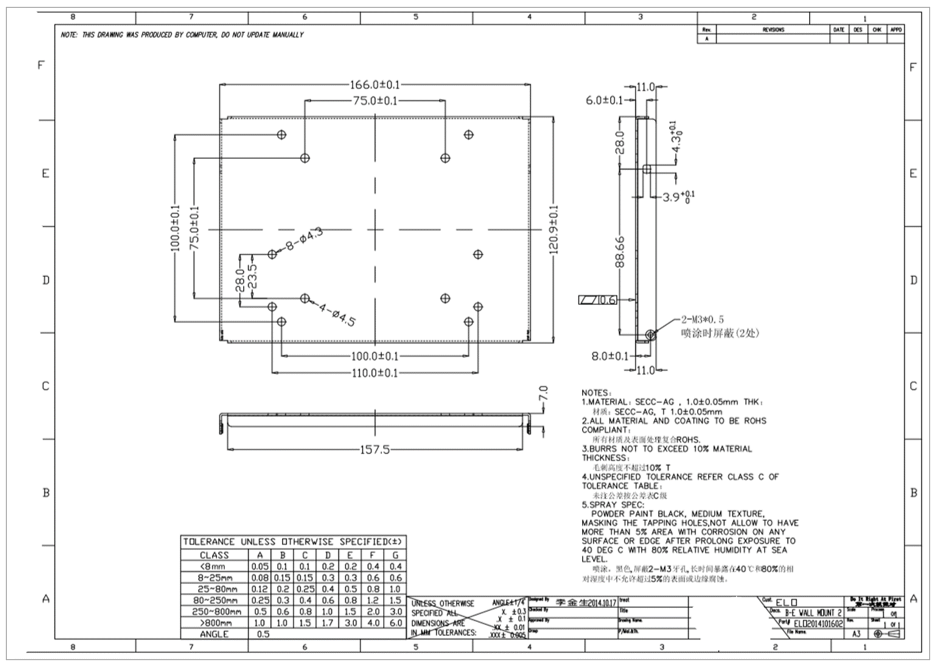

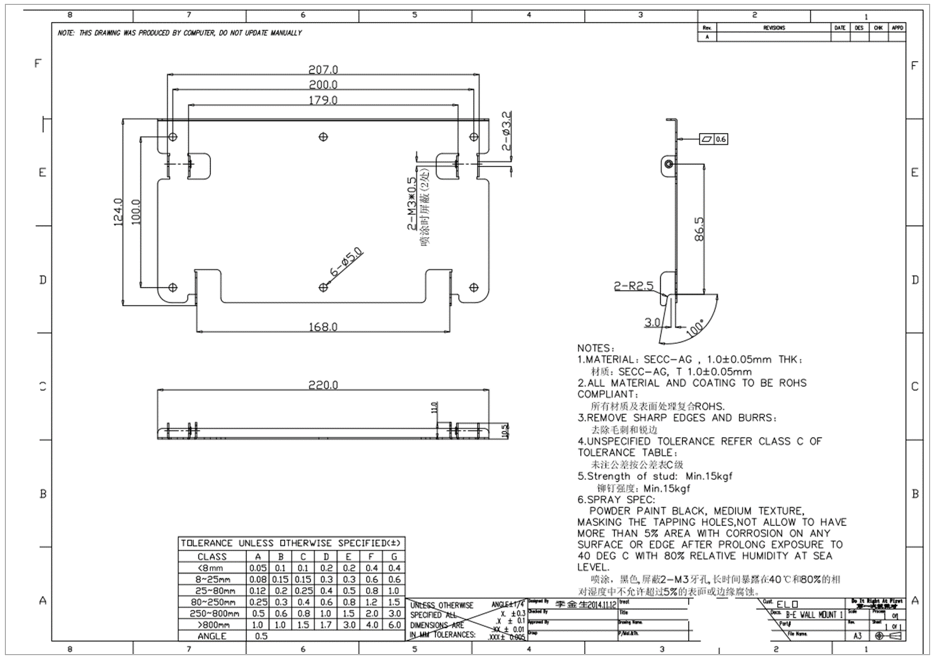

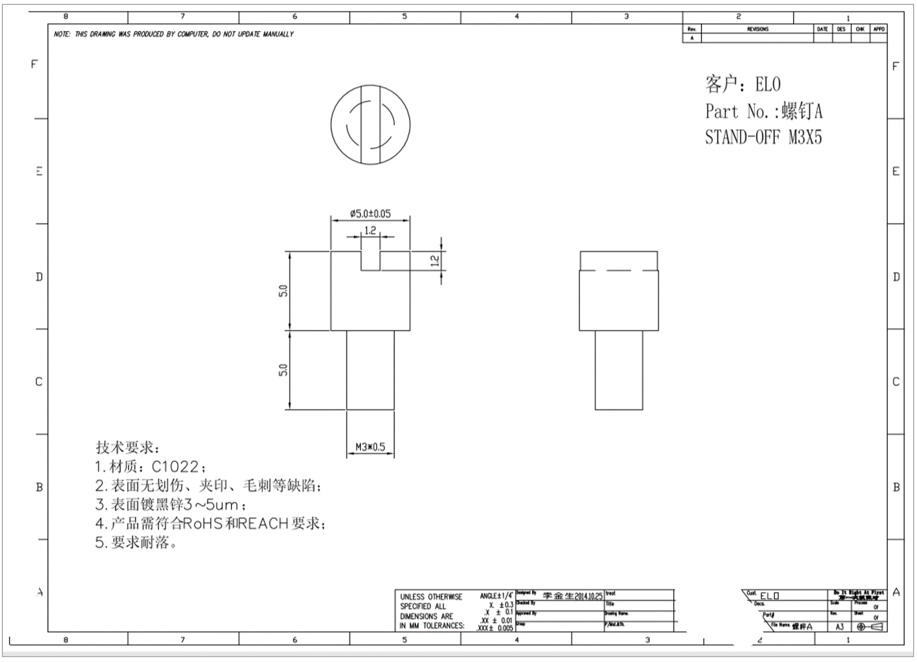

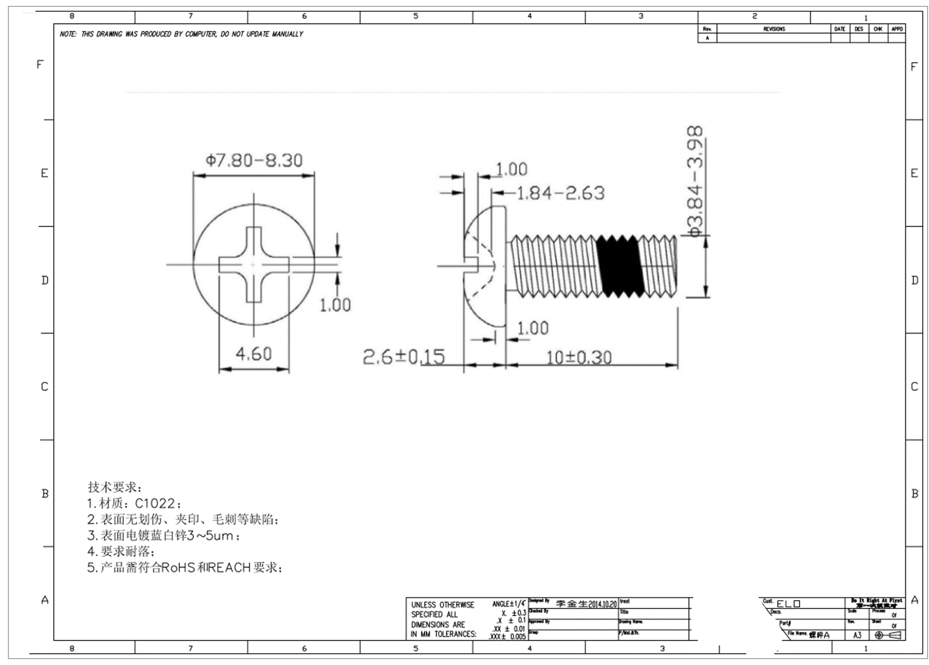

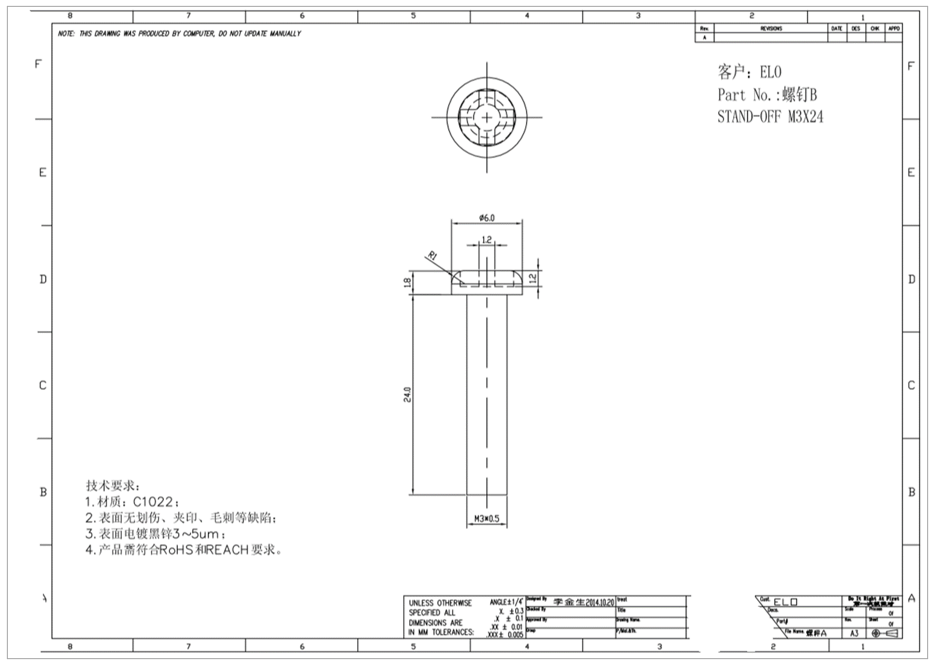

E-I-X 시리즈 Intel-Windows 기반 올인원 터치 컴퓨터를 위한 E143088 벽 장착 키트의 치수 도면을 아래에서 확인하십시오.




위의 도면의 .pdf 패키지를 여기서 다운로드하십시오.
