E462672 Elo 2293L-2294L 랙 장착 베젤 키트에 대한 정보는 어디에서 찾을 수 있나요?

이 문서에서는 E462672 Elo 2293L-2294L 랙 마운트 베젤에 대한 정보를 제공합니다.

E462672 Elo 2293L-2294L 랙 마운트 베젤은 intelliTouch, SecureTouch, AccuTouch 제품 버전에서만 사용할 수 있습니다. 이 브래킷은 12U 랙 공간이 필요합니다.

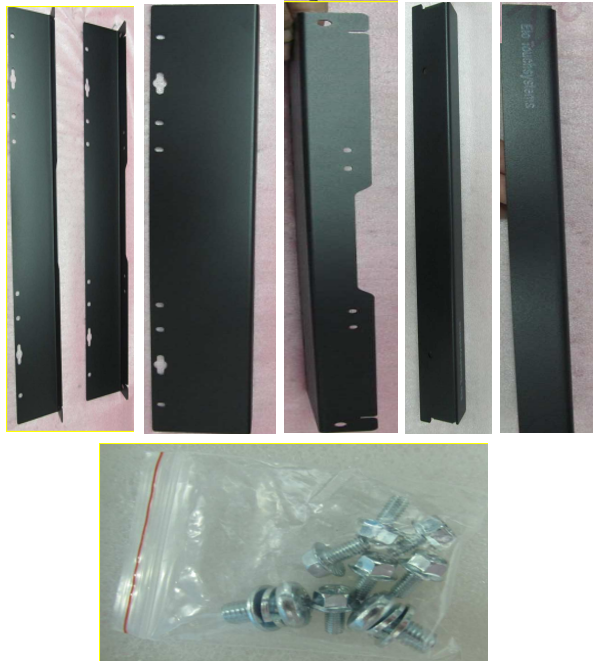

키트 구성:

  • 1x 브래킷, 하단 랙 마운트
  • 2x 브래킷, 측면, 랙 마운트
  • 4x 나사, 필립, PNHD W/CAPT WHRS, M6X12L-R
  • 4x 나사, HXHD, 필립, 톱니, M4X

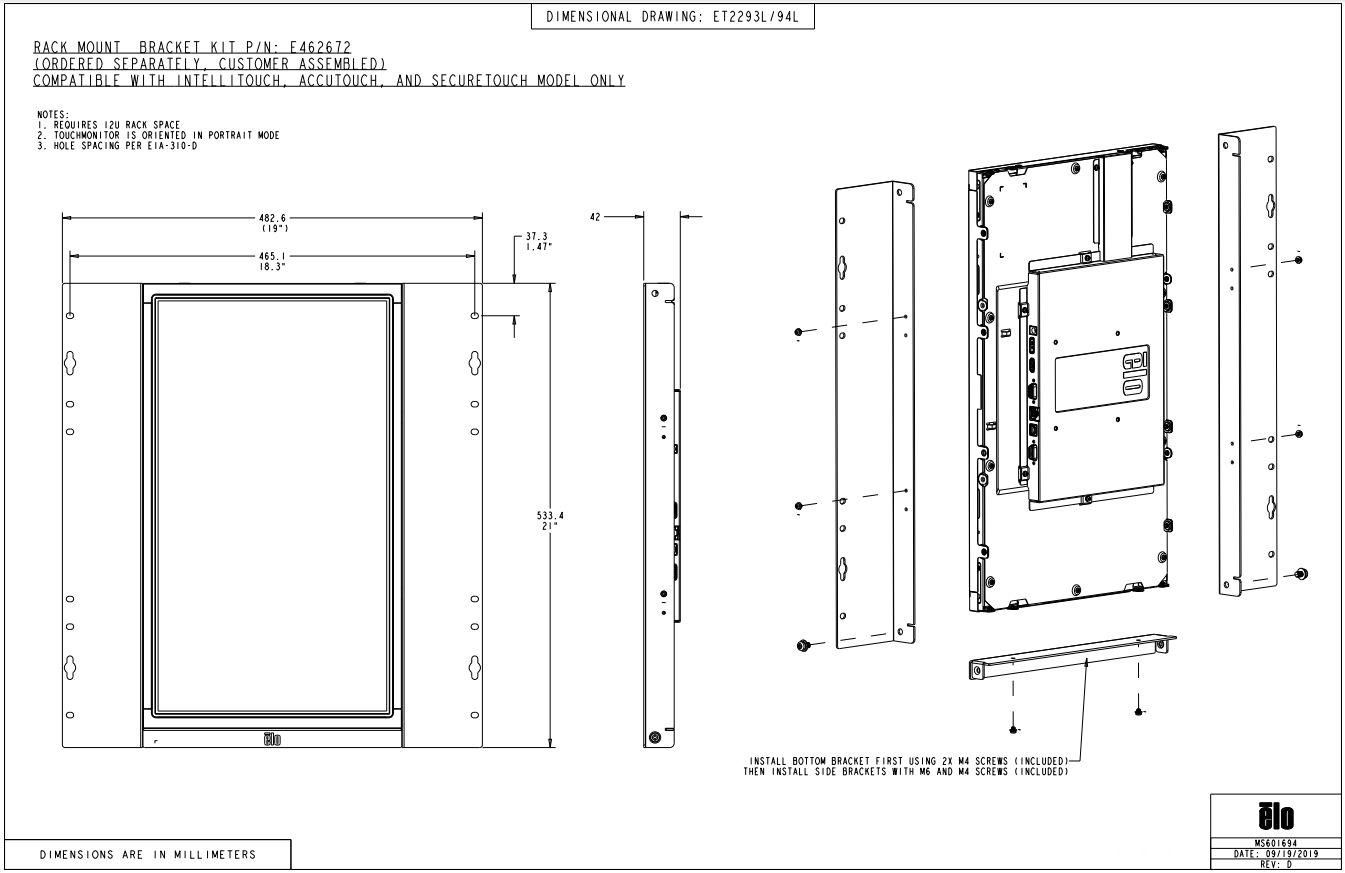

도면 및 조립
